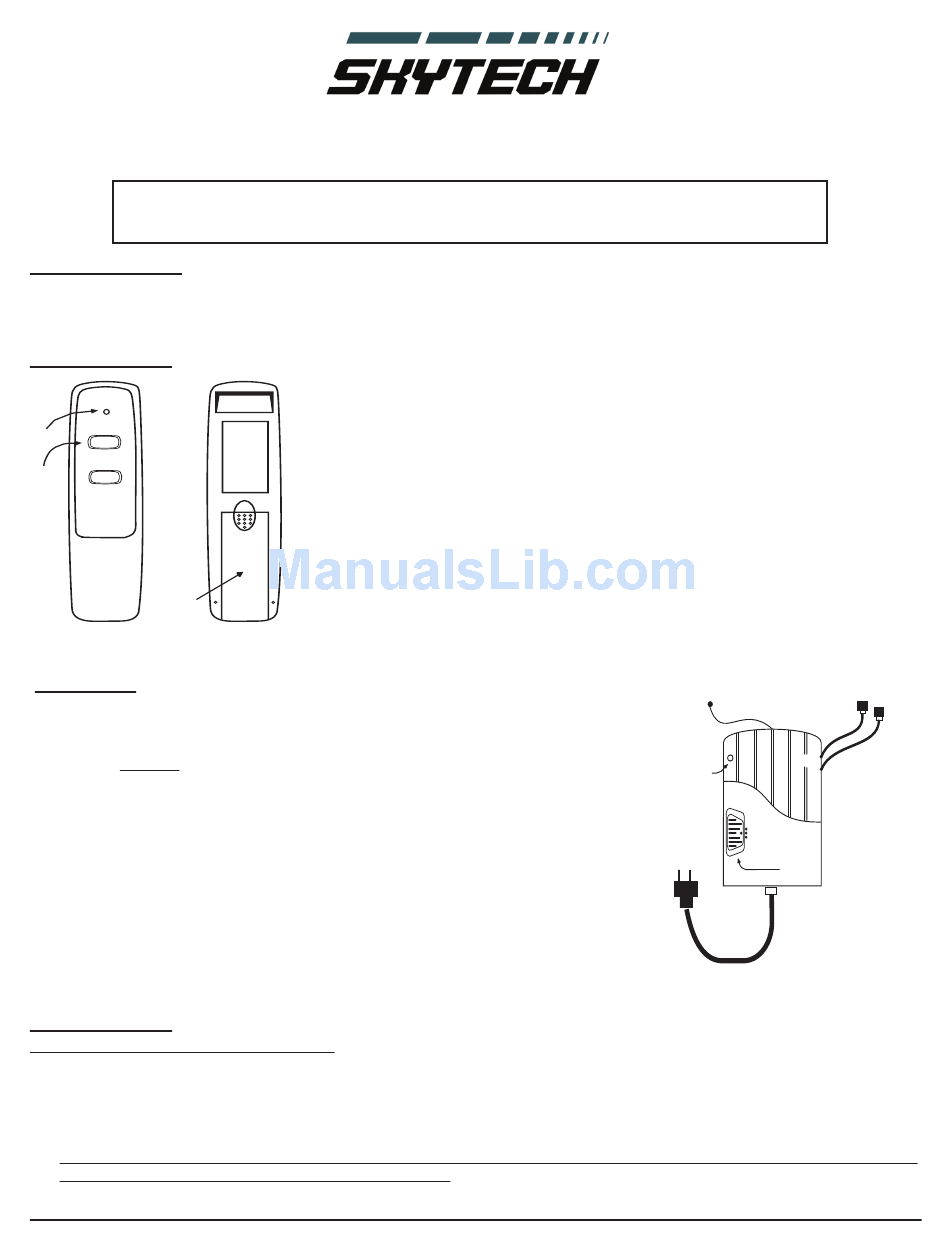

INSTALLATION AND OPERATION INSTRUCTIONS
IF YOU CANNOT READ OR UNDERSTAND THESE INSTALLATION INSTRUCTIONS DO

INTRODUCTION

This remote control system was developed to provide safe, reliable, user-friendly remote control system for gas heating appliances. The
system can be operated manually from the transmitter.

TRANSMITTER

SIGNAL
LIGHT
ON
ON/OFF
OFF
BUTTONS
BATTERY
COMPARTMENT
FRONT

RECEIVER

When plugged into a standard 110-120 VAC receptacle, the remote receiver operates on
commands from the transmitter or from the slide switch on the face of the receiver (This
switch is to be used during a power outage to operate the appliance manually).
• ON : will manually turn on the appliance.
• REMOTE
: will allow use of handheld transmitter. If the system does not respond to the
transmitter on initial use, check the battery positions in the remote. If that does not work,
see the SECURITY CODE section.
• OFF : will disable the remote receiver.
• It is suggested that the slide switch be placed in the OFF position if you will be
away from your home for an extended period of time.
The remote receiver is manufactured with a "dry contact" relay in its circuitry that operates
like an on/off switch. However, no power or current passes from the 110-120 VAC input side
to the wires leading from the output side of the remote receiver.

INSTALLATION

Protection from extreme heat is very important. The remote receiver should be kept away from temperatures exceeding 130ºF. Extreme
heat can cause damage, which is not covered under warranty.
• Before installation, make sure you turn the slide switch to
• The remote receiver can be placed on the fireplace hearth or under the fireplace behind the control access panel.
• Use the wires attached to the remote receiver to connect to the gas valve or the electric module (piggyback connectors have both
male & female terminals for flexibility).
• Be sure that the connectors do not touch each other or other bare metal surfaces; this will cause the appliance to turn on. The con-
nectors may be wrapped with electrical tape to prevent this.
Skytech 1410-A
MODEL: 1410-A
NOT ATTEMPT TO INSTALL OR OPERATE
The transmitter operates on a 12V (A23) battery that is included. Install the 12V battery sup-
plied with the unit into the battery compartment. It is recommended that ALKALINE batteries
always be used for this product. Be sure the batteries are installed with the (+) and (-)
ends facing the correct direction.
The LED signal light should illuminate when either the on or off button is pressed. If the sig-
nal light does not illuminate, check the position of the transmitter's battery, and if the battery is
fully charged.
BACK
OFF. After installation, make sure you turn the slide switch to REMOTE.
REMOTE RECEIVER
ANTENNA
VALVE
Dry Contact
LEARN (2) 1/4" female
Connectors
OFF
REMOTE
ON
To 110VAC
input
Slide
Switch
REV 11/1/12 Page 1
