Skytech 1420TH-A Installation And Operating Instructions Manual

IF YOU CANNOT READ OR UNDERSTAND THESE INSTALLATION
INTRODUCTION
This remote control system was developed to provide a safe, reliable and user-friendly remote control system for gas heating products.

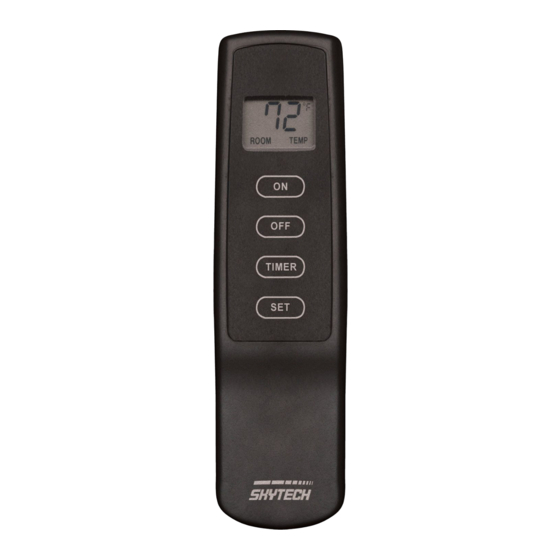

TRANSMITTER
ON
BUTTON
ON
MODE
BUTTON
OFF
MODE
OFF
BUTTON
SET
SET
BUTTON
BATTERY
COMPARTMENT
FRONT
LCD - Liquid Crystal Display
1
4 ROOM
SET
TEMP
6
SETTING ºF / ºC SCALE
The factory setting for temperature is ºF. To change the displayed
temperature, press the ON and OFF keys at the same time. Follow
this same procedure to return to ºF.
MANUAL FUNCTION
ON OPERATION
Press the ON key to turn the appliance ON. (The flame icon will
appear on the LCD screen).
OFF OPERATION
Press the OFF key to turn the appliance OFF. (The flame icon will
disappear from the LCD screen.)
Skytech: 1420TH-A
Model: 1420TH-A
INSTALLATION AND OPERATING INSTRUCTIONS
INSTRUCTIONS DO NOT ATTEMPT TO INSTALL OR OPERATE
The transmitter operates on (2) 1.5V AAA batteries. It is recommended that ALKALINE
WALL CLIP
SLOT
batteries always be used for this product. Be sure the batteries are installed with the (+)
and (-) ends facing the correct direction, and are fully charged.
KEY SETTINGS
1. ON
2. OFF - -
3. MODE
4. SET - -
BACK
LCD - LIQUID CRYSTAL DISPLAY
1. Display - - - - - - - - - -
2
2. Fahrenheit or Celsius
3. Flame - - - - - - - - - - -
3
4. Room - - - - - - - - - - -
5. Temperature - - - - - -
5
6. Set - - - - - - - - - - - - -
Turns appliance on
- - -
Turns appliance off
Cycles control between manual and thermo mode.
Sets temperature in thermo mode.
Indicates current room temperature.
Indicates degrees Fahrenheit or Celsius.
Indicates appliance is ON.
Indicates remote is in THERMO mode.
Appears during manual operation.
Appears when setting
mode.
SCREEN WHILE DEPRESSING
SCREEN WHILE DEPRESSING
desired temperature in THERMO
the
TEMP
SCREEN AFTER 3 SECOND
ON KEY
SCREEN AFTER 3 SECOND
OFF KEY
REV. 12-13-17 Page 1
1
ON
2
OFF
3
MODE
4
SET
TEMP
DEFAULT
TEMP
DEFAULT
