IF YOU CANNOT READ OR UNDERSTAND THESE INSTALLATION
INTRODUCTION
This remote control system was developed to provide a safe, reliable and user-friendly remote control system for gas
heating appliances. It has a built-in thermostat. This all battery system operates independently of household current.
The system operates on radio frequencies with a non-directional signals. The systems operating range is approximately
20-feet. The system operates on one of 1,048,576 security codes that are programmed into the transmitter at the factory;
the remote receiver's code must be matched to that of the transmitter prior to initial use. It is designed to be used with
millivolt gas valves as a dry contact switch.
Review COMMUNICATION SAFETY SECTION under TRANSMITTER section. These signal/temperature
safety features shut down the fireplace system when a potentially unsafe condition exists.

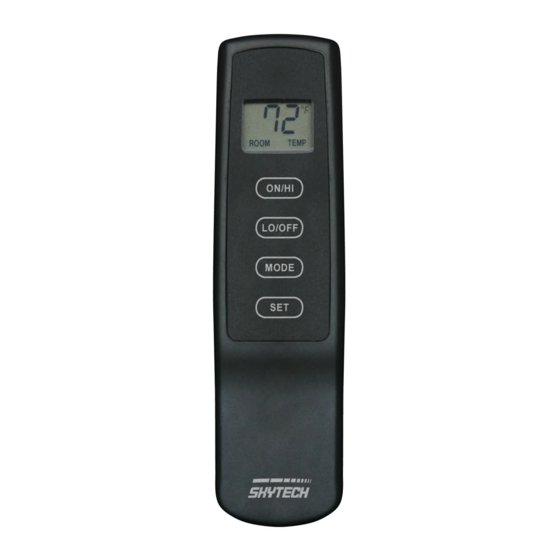

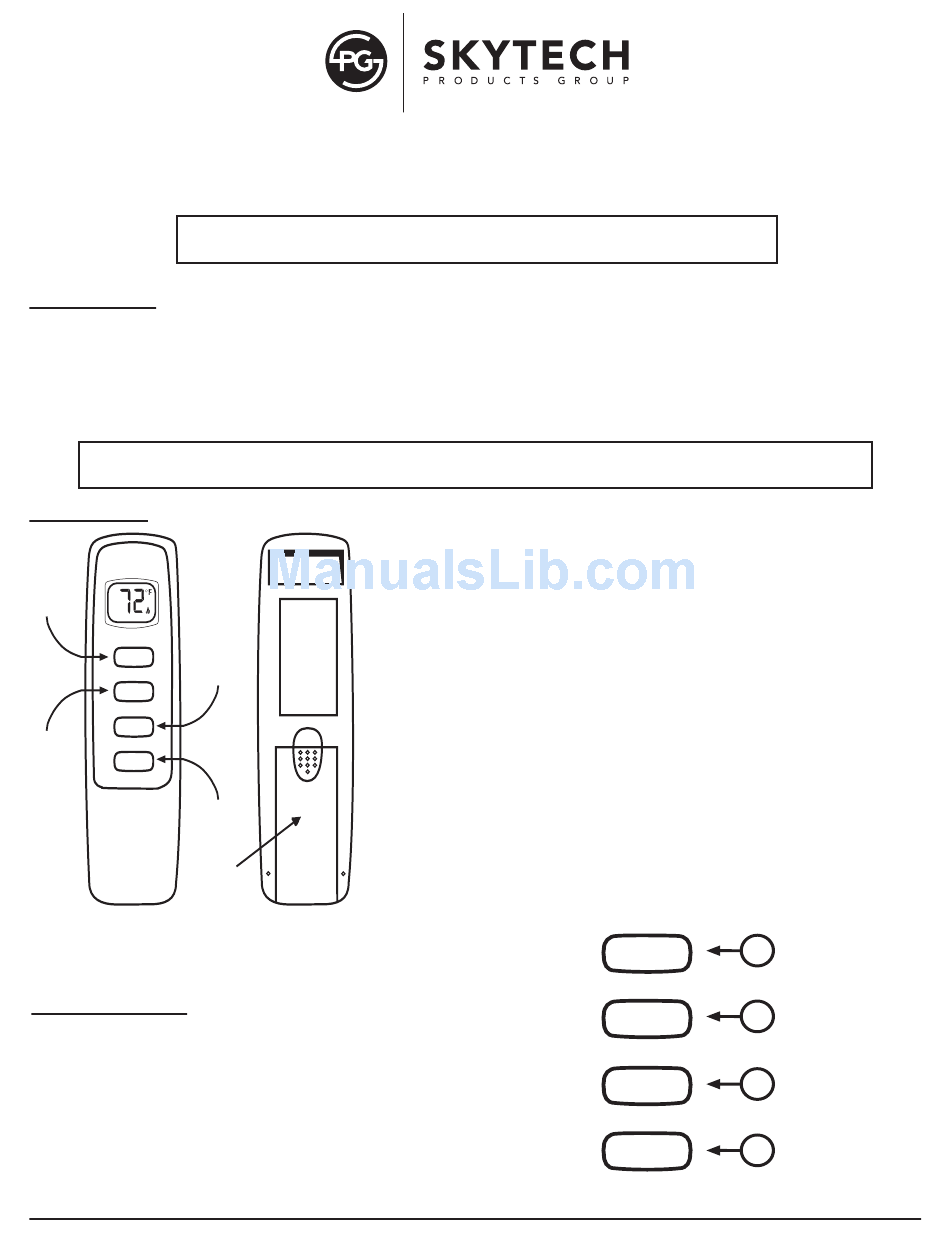

TRANSMITTER
ON
BUTTON
ON
MODE
BUTTON
OFF
MODE
OFF
BUTTON
SET
BUTTON
BATTERY
COMPARTMENT
FRONT
BUTTON SETTINGS
1. ON - - -
Turns appliance ON
2. OFF - -
Turns appliance OFF
3. MODE
Cycles control between manual and thermo mode.
4. SET --
Sets temperature in thermo mode.
-
Skytech: 1001TH-A
Model: 1001TH-A
INSTALLATION AND OPERATING INSTRUCTIONS
INSTRUCTIONS DO NOT ATTEMPT TO INSTALL OR OPERATE
This remote control SYSTEM offers the user a battery-operated remote
control that operates most millivolt gas valves used in some heater rated
WALL CLIP
SLOT
gas logs, gas fireplaces and other gas heating appliances.
The transmitter operates on (2) 1.5V AAA batteries.
It is recommended that ALKALINE batteries always be used for longer
battery life and maximum operational performance.
Before using the transmitter, install the (2) AAA transmitter batteries into
the battery compartment. (Use caution that batteries are installed in the
SET
proper direction)
BACK
1
ON
2
OFF
3
MODE
4
SET
REV. 8-4-17 Page 1
