INSTALLATION AND OPERATION INSTRUCTIONS
IF YOU CANNOT READ OR UNDERSTAND THESE INSTALLATION INSTRUCTIONS DO
NOTE: This product is designed for use with an attended hearth appliance or fire feature. Adults must be present when the Control
System is operating. DO NOT program or thermostatically set this control to operate a hearth appliance or fire feature when Adults are
not physically present. Furthermore, DO NOT leave the hearth appliance or fire feature burning unattended; it may cause damage or
serious injury. If an Adult is going to be away from the hearth appliance or fire feature for any length of time, then the handheld/wall
mount, receiver/control module and application should be in the "OFF" position.
INTRODUCTION
This remote control system was developed to provide safe, reliable, user-friendly remote control system for gas heating appliances.
The system can be operated manually from the transmitter. It is designed to be used with milivolt gas valves as a dry contact switch and
powers a fan.
TRANSMITTER
SIGNAL
LIGHT
ON
ON/OFF
OFF
BUTTONS
BATTERY
COMPARTMENT
FRONT

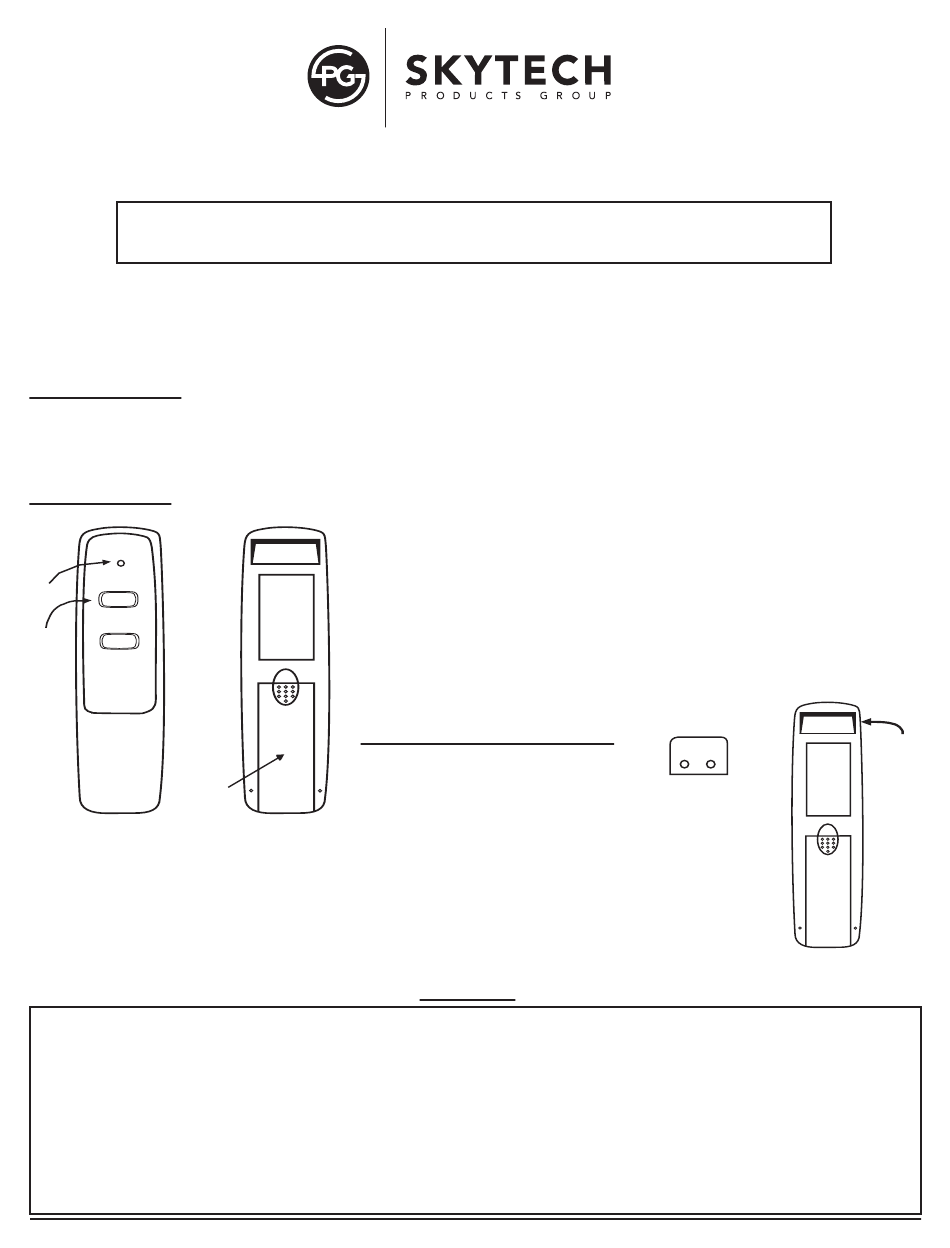

Fig. 1 Transmitter front and back.
This remote control system must be installed exactly as outlined in these instructions. Read all instructions completely before
attempting installation. Follow instructions carefully during installation. Any modifications of this remote control or any of its
Do not connect any gas valve or electronic module directly to 110-120VAC power. Consult gas appliance manufacturer's
instructions and wiring schematics for proper placement of all wires. All electronic modules are to be wired to manufacturer's
The following wiring diagrams are for illustration purpose only. Follow instructions from manufacturer of gas valve and/or electronic
module for correct wiring procedures. Improper installation of electric components can cause damage to electronic module, gas
Skytech: 1001-A-FSCRF
MODEL: 1001-A-FSCRF
NOT ATTEMPT TO INSTALL OR OPERATE
The transmitter operates on a 12V (A23) battery that is included. Install the 12V
battery supplied with the unit into the battery compartment. It is recommended that
ALKALINE batteries always be used for this product. Be sure the batteries are
installed with the (+) and (-) ends facing the correct direction.
The LED signal light should illuminate when either the ON or OFF button is pressed. If
the signal light does not illuminate, check the position of the transmitter's battery, and
if the battery is fully charged.
TRANSMITTER WALL CLIP
The transmitter can be hung on a wall
using the clip provided.
•
Wood - Drill 1/8'' pilot holes and
BACK
install with screws provided.
•
Plaster/Wallboard - Drill 1/4'' holes,
use a hammer to tap in the two
plastic anchors, then install with the
screws provided.
WARNING
components will void the warranty and may pose a fire hazard.
specifications.
valve and remote receiver.
WALL CLIP
BATTERY
COMPARTMENT
Fig. 2 Installing wall clip.
REV. 8-21-20
WALL CLIP
SLOT
Page 1
