IF YOU CANNOT READ OR UNDERSTAND THESE INSTALLATION INSTRUCTIONS DO NOT
INTRODUCTION
This SKYTECH remote control system was developed to provide safe, reliable, and user-friendly remote control system for gas heating
appliances. The remote system is powered by 110-120 VAC, yet only a "dry contact" (no power output). The system can be operated
manually from the transmitter. The system operates on one of 65,536 security codes that are programmed into the transmitter at the
factory.
TRANSMITTER
SIGNAL
LIGHT
ON
ON/OFF
OFF
BUTTONS
FRONT
RECEIVER
RECEIVER
REMOTE RECEIVER
ANTENNA
operates
of the receiver
appliance manually).
in its circuitry that
LEARN
current passes from the 110-120
side of the remote receiver.
OFF
REMOTE
ON
To 120VAC input
Slide
Switch

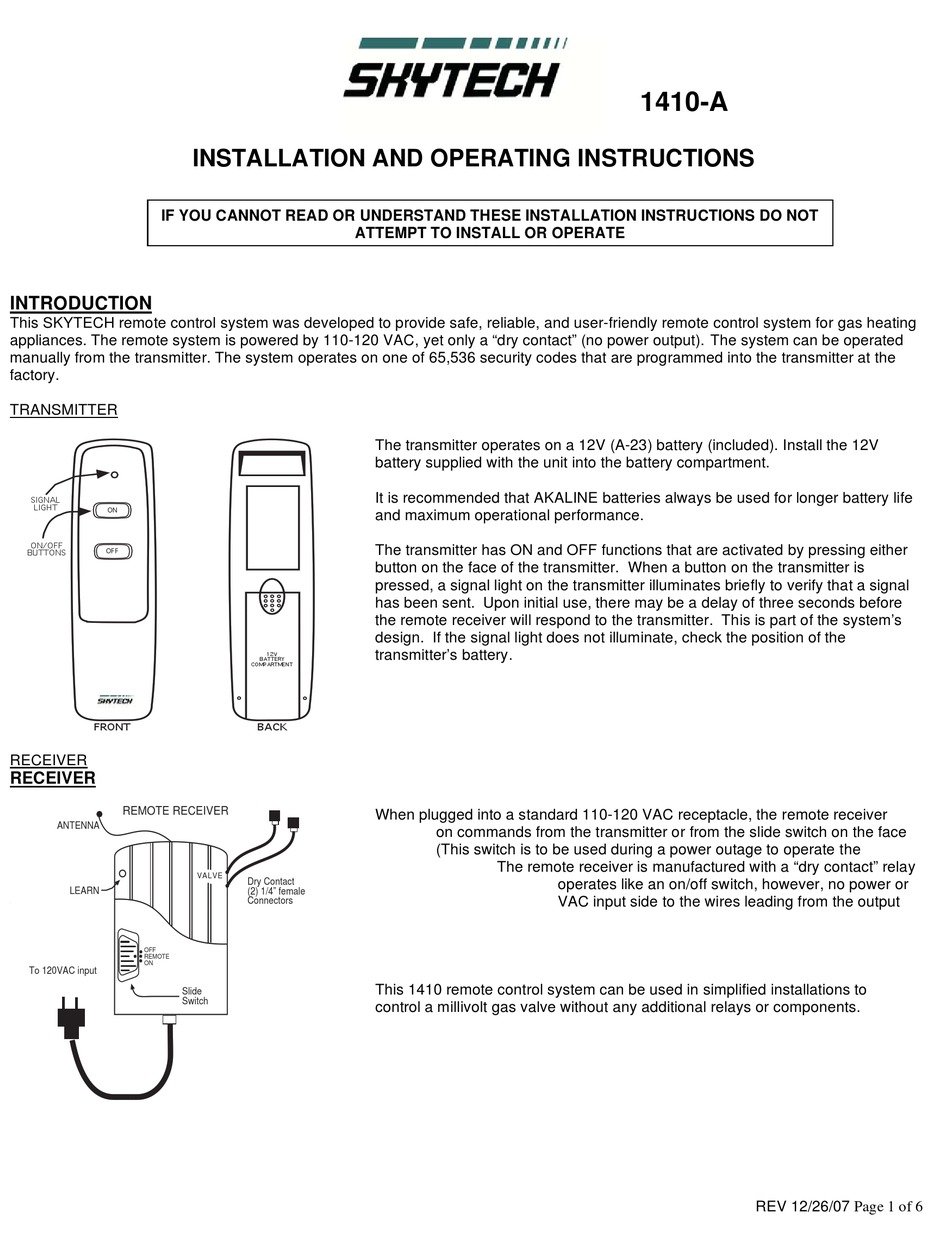

INSTALLATION AND OPERATING INSTRUCTIONS
ATTEMPT TO INSTALL OR OPERATE
12V
BATTERY
COMPARTMENT
BACK
VALVE
Dry Contact
(2) 1/4" female
Connectors
The transmitter operates on a 12V (A-23) battery (included). Install the 12V
battery supplied with the unit into the battery compartment.
It is recommended that AKALINE batteries always be used for longer battery life
and maximum operational performance.
The transmitter has ON and OFF functions that are activated by pressing either
button on the face of the transmitter. When a button on the transmitter is
pressed, a signal light on the transmitter illuminates briefly to verify that a signal
has been sent. Upon initial use, there may be a delay of three seconds before
the remote receiver will respond to the transmitter. This is part of the system's
design. If the signal light does not illuminate, check the position of the
transmitter's battery.
When plugged into a standard 110-120 VAC receptacle, the remote receiver
on commands from the transmitter or from the slide switch on the face
(This switch is to be used during a power outage to operate the
The remote receiver is manufactured with a "dry contact" relay
This 1410 remote control system can be used in simplified installations to
control a millivolt gas valve without any additional relays or components.
1410-A
operates like an on/off switch, however, no power or
VAC input side to the wires leading from the output
REV 12/26/07 Page 1 of 6
