IF YOU CANNOT READ OR UNDERSTAND THESE INSTALLATION INSTRUCTIONS
INTRODUCTION
ON
Indicator
Light
OFF

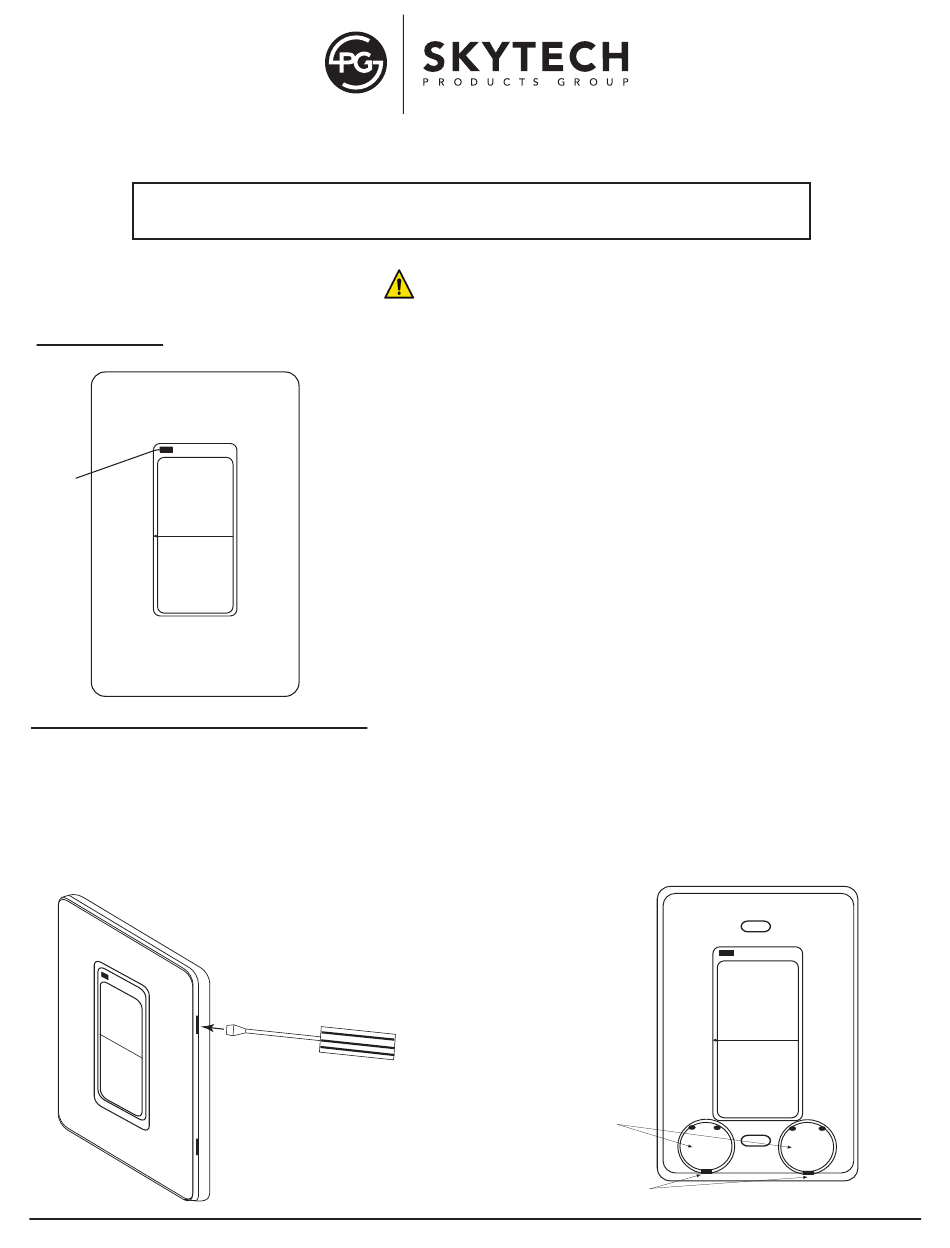

INSTALLING AND REPLACING BATTERIES

Remove the faceplate from the base by inserting a small screwdriver into the small slot on the side of the faceplate
(either side) then popping it off.
To take the batteries out, insert a small screwdriver into slot at the button cell battery (shown on right) and pop
batteries out.
Place the button cell batteries into the battery holders, inserting the top edge under the metal clips and snap into
place. Ensure the batteries are installed with (+) plus side facing up.
After the batteries are installed replace the faceplate on the base.
into slot at the top or bottom
Skytech: 1001D-A
Model: 1001D-A
Installation AND OPERATION INSTRUCTIONS
DO NOT ATTEMPT TO INSTALL OR OPERATE
CALIFORNIA PROPOSITION 65
This product can expose you to Tetrabromobisphenol-A,
which is known to the state of California to cause cancer.
(For more information, go to www.p65warnings.ca.gov)
This remote control system was developed to provide safe, reliable,
user-friendly remote control system for gas heating appliances. The system can
be operated manually from the transmitter. It is a dry contact switch
designed to be used with milivolt gas valves.
The wall transmitter operates on a (2) 3-volt button cell batteries (included).
Before using the wall transmitter, install the (2) 3-volt button cell batteries. Follow
instructions below.
The wall transmitter is an ON/OFF rocker switch. When the rocker switch on the
wall transmitter is pressed, a indicator light on the wall transmitter illuminates
briefly to verify that a signal has been sent. If the indicato light does not illuminate
it could be the batteries. Be sure the batteries are installed with the (+) and (-)
ends facing the correct direction, and are fully charged.
Insert small screwdriver
and pop cover off
WARNING
Insert batteries
into holder and
snap into holder
Insert small screwdriver
into slot and pop out
batteries from holder
+
+
Plus
Plus
Side
Side
REV. 11-14-18 Page 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 1001D-A and is the answer not in the manual?

Questions and answers

Summary of Contents for Skytech 1001D-A

  • Page 1 Model: 1001D-A INSTALLATION AND OPERATION INSTRUCTIONS IF YOU CANNOT READ OR UNDERSTAND THESE INSTALLATION INSTRUCTIONS DO NOT ATTEMPT TO INSTALL OR OPERATE CALIFORNIA PROPOSITION 65 WARNING This product can expose you to Tetrabromobisphenol-A, which is known to the state of California to cause cancer.
  • Page 2 The following wiring diagrams are for illustration purpose only. Follow instructions from manufacturer of gas valve and/ or electronic module for correct wiring procedures. Improper installation of electric components can cause damage to electronic module, gas valve and remote receiver. Skytech: 1001D-A REV. 11-14-18 Page 2...
  • Page 3 Be sure that the connectors do not touch each other or other bare metal surfaces; this will cause the appliance to turn ON. The connectors may be wrapped with electrical tape to prevent this. REMOTE Skytech: 1001D-A REV. 11-14-18 Page 3...
  • Page 4 LEARN button the receiver will emit an audible “beep”. After the receiver emits the beep press the transmitter ON or OFF button for approximately 2 seconds and release. The receiver will emit several beeps indicating that the transmitter’s code has been accepted into the receiver. Skytech: 1001D-A REV. 11-14-18 Page 4...
  • Page 5 U.S. INQUIRIES CANADIAN INQUIRIES SERVICE, CALL: (855) 498-8324 or (260) 459-1703 (877) 472-3923 Skytech Products Group 9230 Conservation Way Fort Wayne, IN 46809 Sales Support: (888) 699-6167 Website: www.skytechpg.com MANUFACTURED EXCLUSIVELY FOR SKYTECH II, INC Skytech: 1001D-A REV. 11-14-18 Page 5...
