Triad CR LCR2 Quick Start Manual

InRoom CR LCR2 Speaker
CAUTION! This speaker
is very heavy, weighing
150 lbs (68kg) plus
stand or bracket. Use
sufficient manpower
and/or equipment to lift
and maneuver it safely
to avoid injury or
damage.

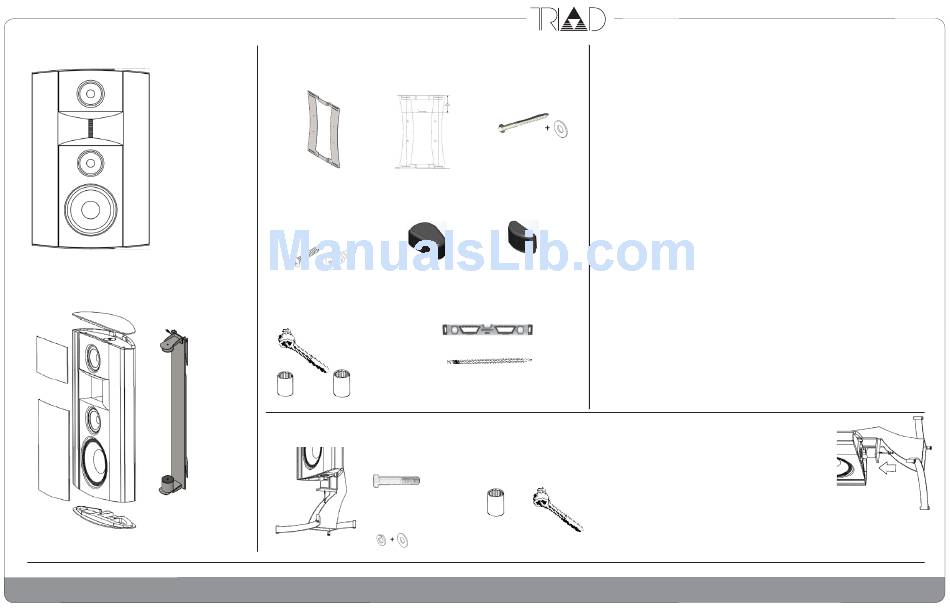

Speaker Parts
Top Endcap
Grills
OnWall
Bracket
Spine
Bottom Endcap
TriadSpeakers.com • Sales: 1800-666-6316
OnWall Bracket Parts
A: B:
(1) Wall Mount (1) Template
D: E:
4 x #10 X 1.25 (2) Enclosure
oval head screws; Dampers - large
4 X #10 drywall
anchors.
OnWall Bracket Tools Needed
Socket wrench with
3/8 in (10mm) &
1/2 in (13mm) sockets
3/8" 10mm
1/2" 13mm
InRoom Stand Parts
A:
(1) 5/16-24 x 4
inch hex bolt
B:
(1) 5/16" Lock Washer &
(1) 5/16" flat washer.
Triad CR LCR2 w/ InRoom Stand & OnWall Bracket - Quick Start Guide
CR LCR2 Speaker
Cinema Reference
Cinema Reference is Triad Speakers' line of premium loudspeakers designed using the
C:
(10) 1/4 inch X 3 in
most advanced technologies to fill large world-class Home Theaters, Screening Rooms,
Lag Bolts with (10)
Listening Rooms and Gaming Rooms to very loud levels with reference quality sound.
1/4inch flat washers.
LCR 2 is a high sensitivity passive loudspeaker with high power handling & high output,
best served as a high resolution main speaker for both multi-channel rooms and high-
end two-channel rooms with subwoofer(s).
LCR 2 is designed for optimal performance either installed on a wall hidden behind
screens & stretched fabric walls or visible on its stand out in the room. LCR 2 should be
positioned horizontally with slight toe-in and vertically so that tweeter horn is aimed at
primary listening position.
F:
Specifications
(1) Enclosure
Damper - small 98dB @ 2.83v, 1m; 500 watts power handling; 4 ohms nominal impedance; f3 = 80Hz;
recommended crossover: 80-100Hz depending on speaker location & room; 120db+
max output; 150 lbs (68 kg); 31"W x 47"H x 9.75"D (787mm x 1194mm x 248mm)
North American Limited Warranty
Triad speakers are warranted to be free from defects in manufacturing and workmanship
(10) years when operated under normal conditions. Should any such defects occur within the
warranty period call Triad Service at 1-503-256-2600 for an RA (Return Authorization)
number. Return the product in intact factory packaging with RA number clearly visible on
outside of box and proof & date of purchase inside to:
Triad Speakers Inc., 15835 NE Cameron Blvd.,
Portland, Oregon 97230 USA
Level
Triad is not responsible for any shipping damage coming in to Triad. If you do not have intact
factory packaging, contact your dealer or Triad Service for purchase. At our discretion we will
Pencil
repair or replace the product and return it free of charge. International customers should
contact their dealer for service. This limited warranty is extended only to Triad products and
is expressly in lieu of all other warranties expressed or implied.
InRoom Stand Tools InRoom Stand Installation
Socket wrench Cinema Reference LCR InRoom Stand is designed
with 3/8 in (10mm) & to position the speaker's acoustic center (middle
of tweeter) at 44 inches (1118mm) above the floor
9/16 in (14mm) sockets
with its adjustable feet at minimum height.
You will find it easier to install the InRoom Stand with the speaker laying
9/16" 14 mm
face down with its bottom end raised & supported approximately 6 inches
(15 cm) above the floor. Protect the drivers, speaker face, and speaker
back with packing foam from the crate. When the stand post is seated,
tighten the hex bolt, flat washer & lock washer with a ½ inch (13mm)
socket. Raise the stand, move into position, and level the adjustable feet.
Page 1
- Product Info & Warranty -
2014.11.1
