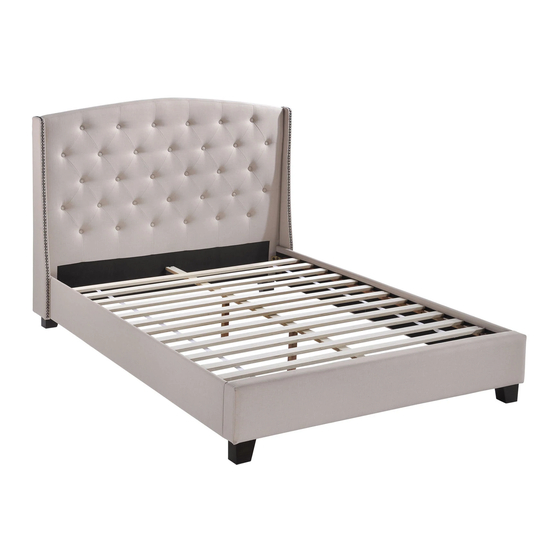

modway MOD-5044 Assembly Instructions

MOD - 5044
Read this instruction carefully. See furniture and hardware part lists,
on the right, for guidance.
Have all parts ready before assembly. Place all wooden furniture
parts on a clean and flat soft surface to prevent from being scratched.
Follow the steps below to start assembling.
CAUTION
: 1. Do not FULLY - TIGHTEN the nut or bolt until all nuts and bolts are assembled.
2. Do not OVER - TIGHTEN the nut or bolt to avoid causing damages to the thread.
3. Keep all hardware parts out of reach of children.
NOTE : THE LIST AND QUANTITY SHOWN ARE FOR 1 UNIT ASSEMBLY.

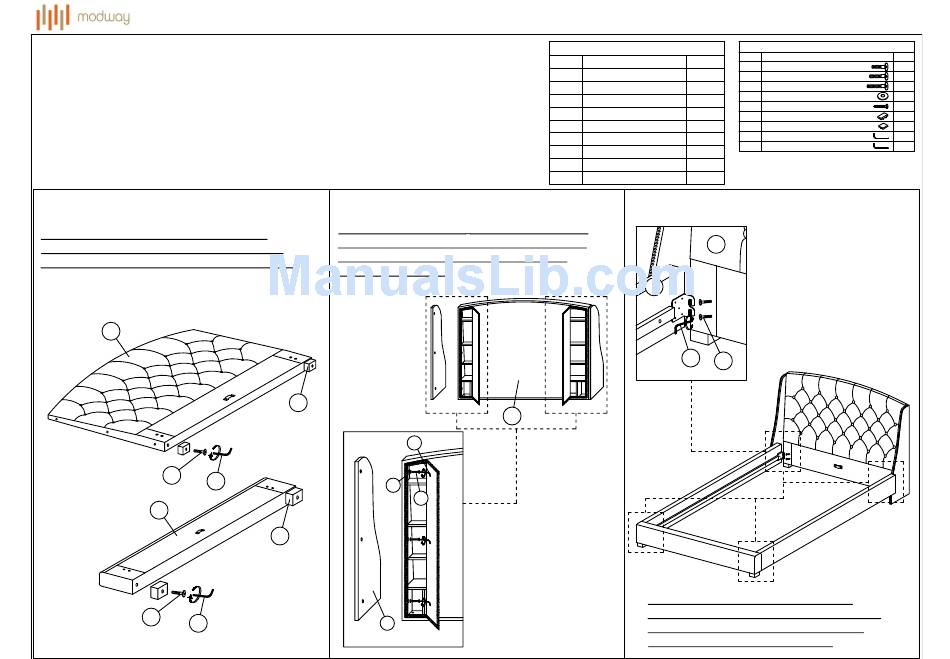

STEP 1
Screw 2 bed leg [F] to headboard [A] with 2
JCBC Bolt [2] & tighten with supplied allen key
[8]. Repeat the same procedure for footboard [B].
A
2
8
B
2
8
ASSEMBLY INSTRUCTIONS
STEP 2
Attach headboard wing [ I ] to headboard [A] with
3 JCBC Bolt [3] & 3 flat washer [4]. Tighten with
allen key [8]. Repeat the same procedure to
secure the other side.
F
8
4
3
F
I
FURNITURE PART LIST
ITEM DESCRIPTION
A HEADBOARD
B FOOTBOARD
C
SIDE RAIL
D
CENTER RAIL
E
CENTER SUPPORT
F
BED LEG
G CENTER SUPPORT LEG
H BED SLAT
I HEADBOARD WING (L&R)
STEP 3
C
A
Screw 8 JCBB Bolt [1] half way into the
headboard [A] and footboard [B]. Attach side
rails [C] to headboard [A] & footboard [B].
Tighten each bolt with allen key [9].
PAGE 1 OF 2
HARDWARE PART LIST
ITEM DESCRIPTION
QTY
1 JCBB BOLT M8 x 40mm
1 PC
2 JCBC BOLT M6 x 35mm
3 JCBC BOLT M6 x 45mm
1 PC
4 M6 FLAT WASHER
2 PCS
5 WOOD SCREW M3.5 x 16mm
1 PC
6 BED SLAT SIDE FITTER
2 PCS 7 BED SLAT CENTER FITTER
8 M4 ALLEN KEY
4 PCS
9 M5 ALLEN KEY
3 PCS
26 PCS
2 PCS
A
9
1
QTY
8 PCS
4 PCS
6 PCS
6 PCS
8 PCS
26 PCS
13 PCS
1 PC
1 PC
