Specificalion-PG 506 (SN 8040000 & up)

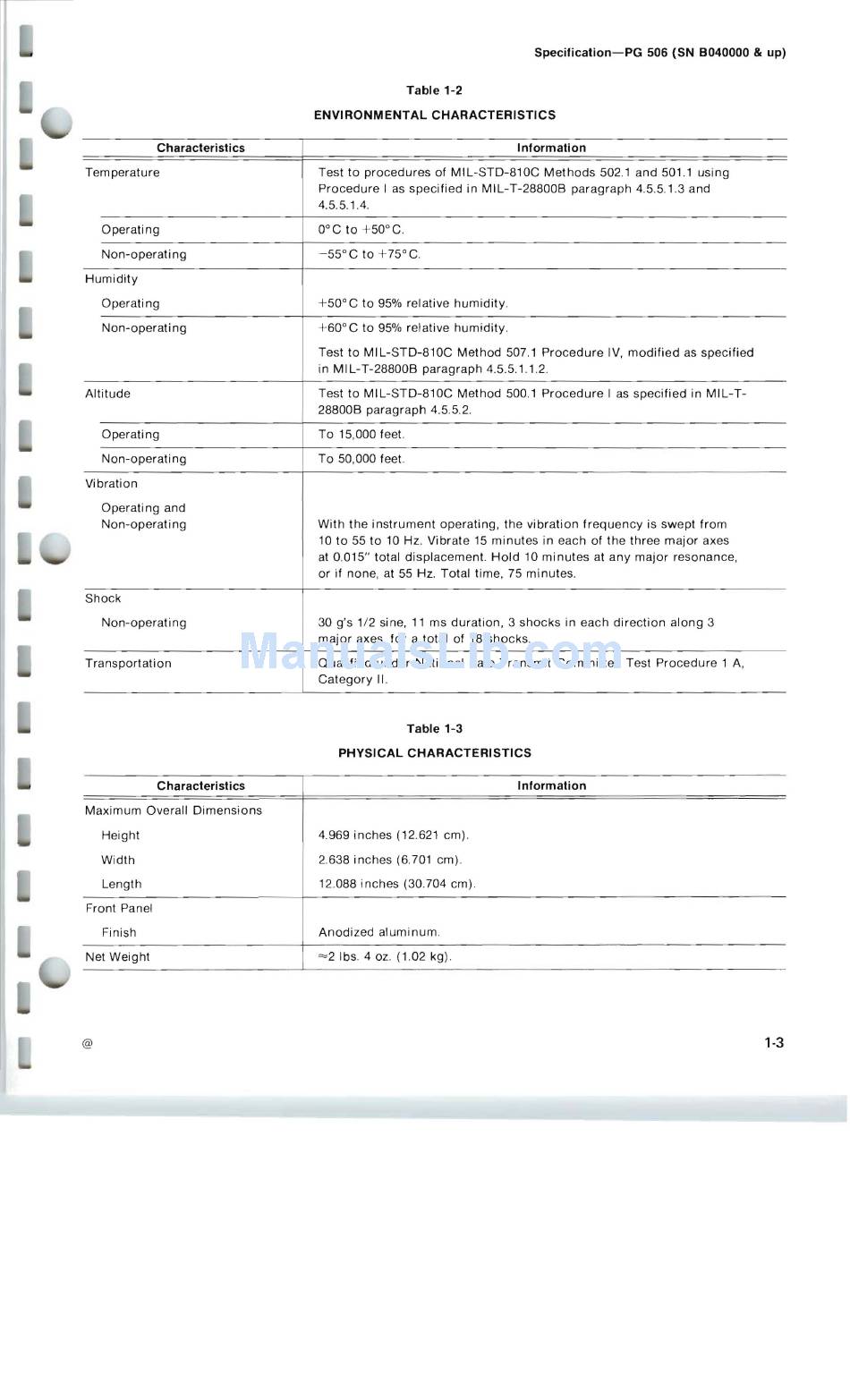

Table 1-2
ENVIRONMENTAL CHARACTERISTICS
Characteristics Information
Tem perature Test to procedures of MIL-STD-810C Methods 502 .1 and 501.1 using
Procedure I as specified in MIL-T-28800B paragraph 4.5.5.1.3 and
4.5.5.1.4.
Operating 0° C to +50° C.
Non-operati ng -55 0 C to + 75 ° C.
Humidity
Operating + 50° C to 95% relative humidity.
Non-operati ng + 60° C to 95% relative humidity.
Test to MIL-STD-810C Method 507.1 Procedure IV, modified as specified
in MIL-T-28800B paragraph 4.5.5.1.1.2.
Altitude
Test to MIL-STD-810C Method 500.1 Procedure I as specified in MIL-T­
28800B paragraph 4.5.5.2.
Operating
To 15,000 feet .
Non-operati ng To 50,000 feet .
Vibration
Operating and
Non-operating With the instrument operating, the vibration frequency is swept from
10 to 55 to 10 Hz. Vibrate 15 minutes in each of the three major axes
at 0.015" total displacement. Hold 10 minutes at any major resonance,
or if none, at 55 Hz. Total time , 75 minutes.
Shock
Non-operat i ng 30 g's 1/2 sine, 11 ms duration, 3 shocks in each direction along 3
major axes, for a total of 18 shocks.
Transportation Qualified under National Safe Transmit Committee Test Procedure 1 A,
Category II.
Table 1-3
PHYSICAL CHARACTERISTICS
Characteristics Information
Maximum Overall Dimensions
Height
Width
Length
4.969 inches (12.621 cm) .
2.638 inches (6.701 cm).
12.088 inches (30.704 cm).
Front Panel
Finish
Anodized aluminum .
Net Weight
= 2 Ibs. 4 oz . (1.02 kg).
@
1-3
