Calibration Procedure-PG 506 (SN 8040000 & up)
Performance Check

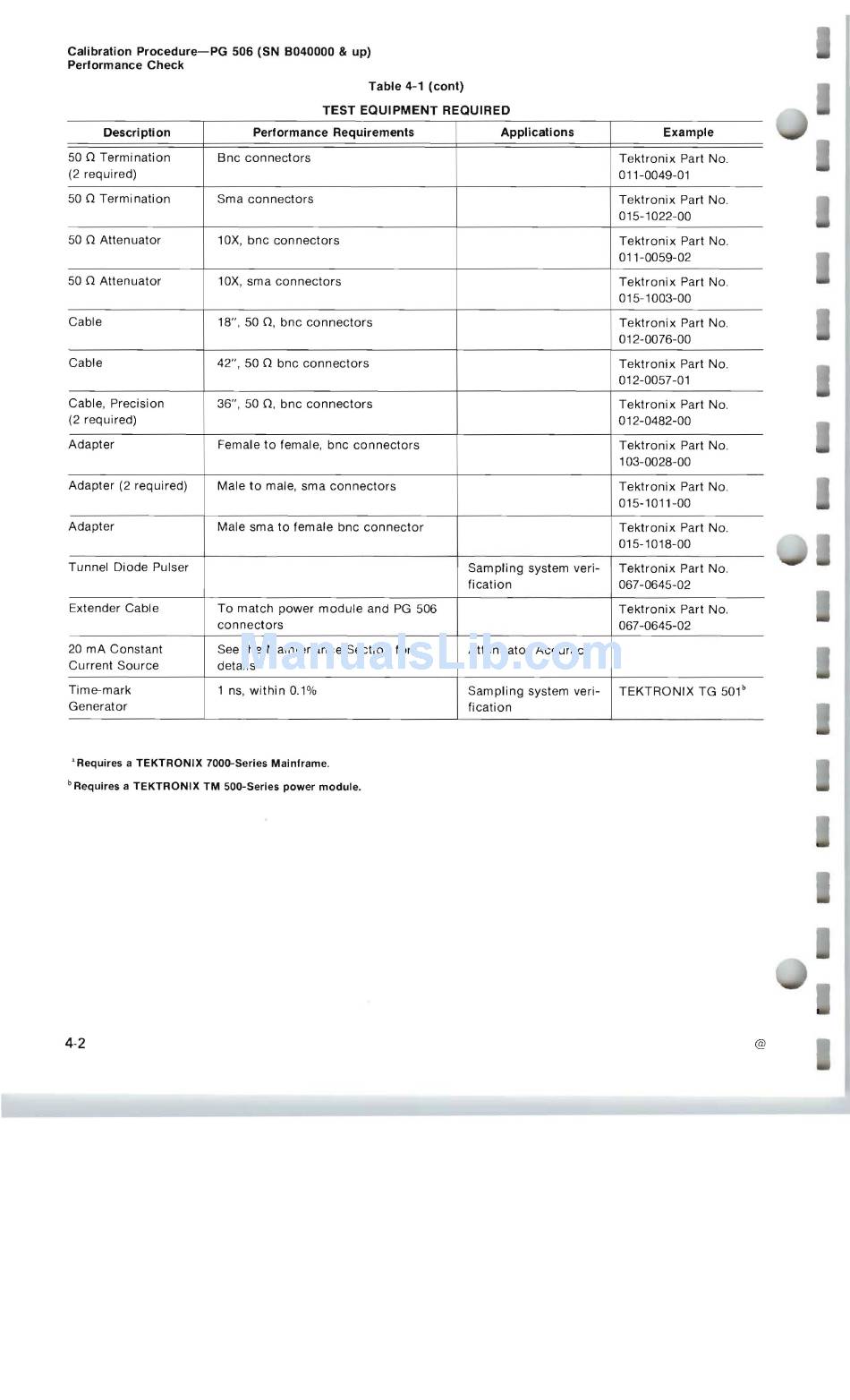

Table 4-1 (cont)
TEST EQUIPMENT REQUIRED
Descri pti on Performance Requirements Applications Example
50 0 Termination
(2 required)
Bnc connectors
Tektronix Part No.
011-0049-01
50 0 Termi nation
Sma connectors Tektronix Part No.
015-1022-00
50 0 Attenuator
10X, bnc connectors Tektroni x Part No.
011-0059-02
50 0 Attenuator 10X, sma connectors
Tektronix Part No.
01 5-1003-00
Cable
18", 500, bnc connectors
Tektronix Part No.
012-0076-00
Cable
42" , 50 0 bnc connectors Tektronix Part No.
012-0057 -01
Cable, Precision
(2 required)
36", 50 0 , bnc connectors
Tektronix Part No.
012-0482-00
Adapter
Female to female, bnc connectors Tektronix Part No.
103-0028-00
Adapter (2 required)
Male to male, sma connectors Tektronix Part No.
015-1011-00
Adapter Male sma to female bnc connector
Tektronix Part No.
015-1018-00
Tunnel Diode Pulser
Sampling system veri­
fication
Tektronix Part No.
067-0645-02
Extender Cable
To match power module and PG 506
connectors
Tektronix Part No.
067 -0645-02
20 mA Constant
Current Source
See the Maintenance Section for
details
Attenuator Accuracy
Time-mark
Generator
1 ns, within 0.1% Sampling system veri­
fication
TEKTRONIX TG 501
b
" Requires a TEKTRONIX 700o-Series Mainframe.
b
Requires a TEKTRONI X TM SOO-Series power module.
4-2
@
