Section 1-PG 506 (SN B040000 & up)

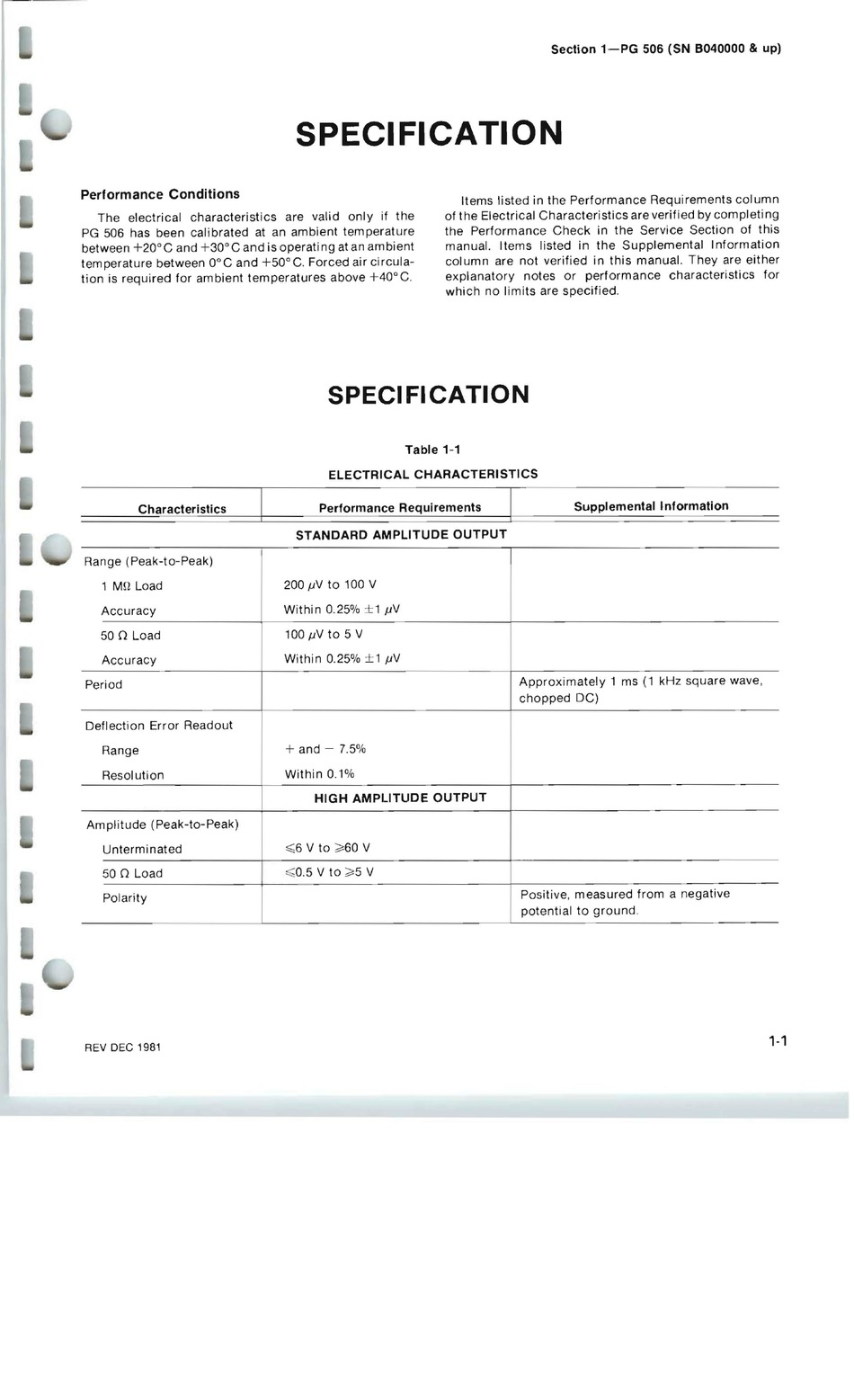

SPECIFICATION
Performance Conditions
Items listed in the Performance Requirements column
The electrical characteristics are valid only if the
of the Electrical Characteristics are verified by completing
PG 506 has been calibrated at an ambient temperature
the Performance Check in the Service Section of this
between +20 0 C and +30 0 C and is operati ng at an ambient
manual. Items listed in the Supplemental Information
temperature between O°C and +50°C. Forced air circula­
column are not verified in this manual. They are either
tion is required for am bient temperatures above +40
0
C.
explanatory notes or performance characteristics for
which no limits are specified.
SPECIFICATION
Table 1-1
ELECTRICAL CHARACTERISTICS
Characteristics
Performance Requirements
Supplemental Information
STANDARD AMPLITUDE OUTPUT
Range (Peak-to-Peak)
1 MQ Load
Accuracy
500 Load
Accuracy
Period
200 IN to 100 V
Within 0.25% ± 1 jJV
100 jJV to 5 V
Within 0.25% ±1 jJV
Approximately 1 ms (1 kHz square wave,
chopped DC)
Deflection Error Readout
Range
Resolution
+ and - 7.5%
Within 0.1%
HIGH AMPLITUDE OUTPUT
Amplitude (Peak-to-Peak)
Unterminated
500 Load
Polarity
~ 6 V to :;:60 V
~ 0.5 V to :;:5 V
Positive, measured from a negative
potential to ground .
1·1
REV DEC 1981
