- Page 1 Operating Instructions SG 310/330 Rev. 2...
-
Page 2: Security Symbols
Operating Instructions Foreword We are pleased to welcome you as a new customer of our Sophos SG appliances. To install and configure the hardware appliance you can use the following documents: Ì Hardware Quick Start Guide: Connection to the system peripherals in a few steps Operating Instructions: Notes on the security and Ì... -

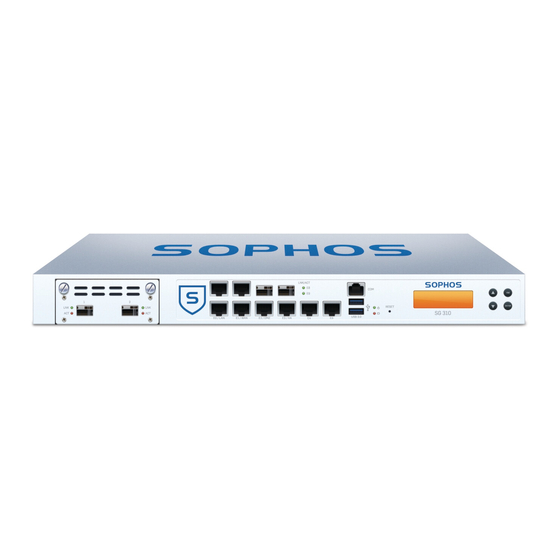

Page 3: Operating Elements And Connections
Connector for optional 2nd external power supply Power supply Connector for optional Power switch PoE Power Module HDMI USB 3.0 * The displayed front image is of SG 330 device. The SG 310 device may vary slightly. SG 310/330 Rev. 2... -
Page 4: Led Status
Either the LED is not working or the SFP+ connector is operating at a speed below 1,000 Mbps. LAN Bypass (LED Display) LAN Bypass Active Green LAN Bypass Off Back side Power Supply Green Constantly Power No power SG 310/330 Rev. 2... - Page 5 Operating Instructions LCD and Control Keys The Sophos SG 310/330 units have an LCD and an operating unit with four membrane keys. In the LCD, 16 characters per line can be displayed. The display contains in four cycling views information on the hardware and specific system states.
-
Page 6: Change Ip Address
S.NO. Action Item/press What you see on the LCD What it means Config menu 1. Change IP addr Config menu 2. Reboot Machine Shutting down Are you sure? n Toggles between “y“ and “n“ Selects choice SG 310/330 Rev. 2... - Page 7 5. OTP Recovery Displayed if no option to Disable OTP Not available disable is available Disable OTP xxxxxx Selects feature to disable (if enabled) Disable xxxxxx Are you sure? n Toggles between “y“ and “n“ Selects choice SG 310/330 Rev. 2...
-
Page 8: Putting Into Operation
The supplied parts are indicated in the Hardware Quick Start Guide. Mounting Instructions The SG 310/330 appliances are designed for use in racks. Please consider the following security tips: Important Note: Functional reliability outside of a rack cannot be guaranteed. -
Page 9: Rack Mounting Considerations
This product is for installation only in a restricted access location (dedicated equipment rooms, service closets and the like). 3. Slide the appliance into the rack. 4. Attach the brackets to the rack with the appropriate screws (not included). SG 310/330 Rev. 2... -
Page 10: Connection And Configuration
How to connect the appliance is described in the Hardware Quick Start Guide. For configuration you can follow the initial setup wizard described in the WebAdmin Quick Start Guide or cancel it and perform a manual setup (see the Sophos UTM Administration Guide). -
Page 11: Serial Console
Please read the operation manual to the SFP GBIC module. Serial Console You can connect a serial console to the COM port of the Sophos SG Firewall hardware appliances. You can use, for instance, the Hyperterminal terminal program which is included with most versions of Microsoft Windows to log on to the appliance console. - Page 12 Registered in England and Wales No. 2096520, The Pentagon, Abingdon Science Park, Abingdon, OX14 3YP, UK Sophos is the registered trademark of Sophos Ltd. All other product and company names mentioned are trademarks or registered trademarks of their respective owners.
