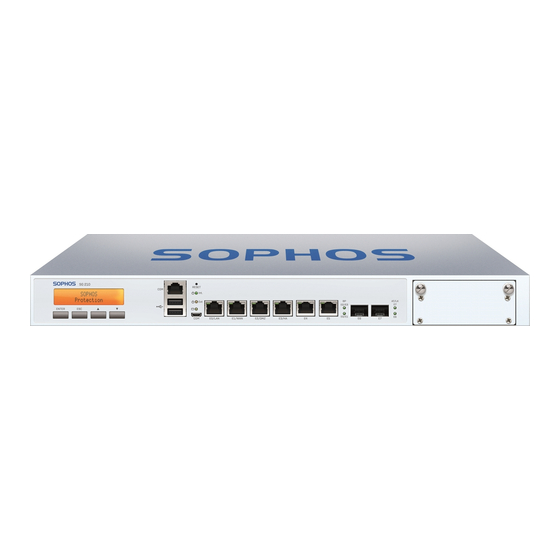

    PoE Kit Mounting Instructions SG/XG 210 XG/SG 230/310/330/430/450 Rev. 3, Rev. 2...

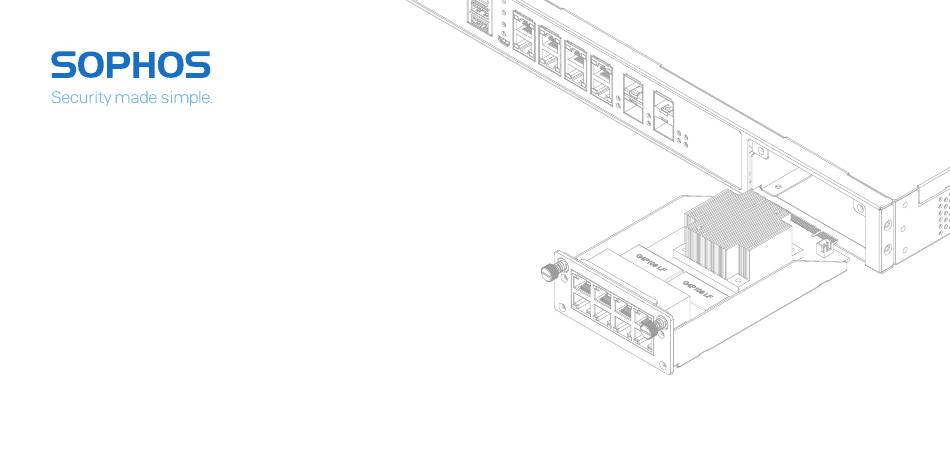

  • Page 2 PoE Kit Mounting Instructions Please note Mounting the PoE module Ì Before installing/removing any LAN module 1. Unscrew the metal plate from the please make sure that the appliance is vacant slot you want to use powered off and power cables are removed. 2.
  • Page 3 PoE Kit Mounting Instructions SG/XG 210 Rev. 3, XG/SG 230/310/330/430/450 Rev. 2...
  • Page 4 PoE Kit Mounting Instructions Connecting the PoE Power Supply combination hereof which does not use more than 120W in total (see table) 1. Locate the Power connector on the backside of your appliance and 4. If you plug in any further device the attach the PoE Power Supply to it PoE Load LED turns on.
  • Page 5 PoE Kit Mounting Instructions Example SG/XG 210 Rev. 3, XG/SG 230/310/330/430/450 Rev. 2...
  • Page 6 PoE Kit Mounting Instructions Max configurations Port 1 Port 2 Port 3 Port 4 Port 5 Port 6 Port 7 Port 8 SG/XG 210 Rev. 3, XG/SG 230/310/330/430/450 Rev. 2...
  • Page 7 PoE-Kit Montageanleitung Hinweis Montieren des PoE-Moduls Ì Vergewissern Sie sich vor dem Einbau 1. Schrauben Sie die Metallplatte von dem oder Ausbau von LAN-Modulen, dass freien Slot ab, den Sie verwenden möchten. die Appliance ausgeschaltet ist und 2. Nehmen Sie die Metallplatte ab. die Stromkabel abgezogen wurden.
  • Page 8 PoE-Kit Montageanleitung SG/XG 210 Rev. 3, XG/SG 230/310/330/430/450 Rev. 2...
  • Page 9 PoE-Kit Montageanleitung Anschließen des PoE-Netzteils kompatible Geräte oder eine Kombination dieser Geräte, die insgesamt 120 W nicht 1. Schließen Sie das PoE-Netzteil überschreitet, versorgen (siehe Tabelle). an den Netzanschluss auf der Rückseite Ihrer Appliance an. 4. Wenn Sie ein weiteres Gerät anschließen, geht die PoE Last-LED an.
  • Page 10 PoE-Kit Montageanleitung Beispiel SG/XG 210 Rev. 3, XG/SG 230/310/330/430/450 Rev. 2...
  • Page 11 PoE-Kit Montageanleitung Maximalkonfigurationen Port 1 Port 2 Port 3 Port 4 Port 5 Port 6 Port 7 Port 8 SG/XG 210 Rev. 3, XG/SG 230/310/330/430/450 Rev. 2...
  • Page 12 Registered in England and Wales No. 2096520, The Pentagon, Abingdon Science Park, Abingdon, OX14 3YP, UK Sophos is the registered trademark of Sophos Ltd. All other product and company names mentioned are trademarks or registered trademarks of their respective owners.
