- Page 1 LAN Modules Mounting Instructions SG 550/650...

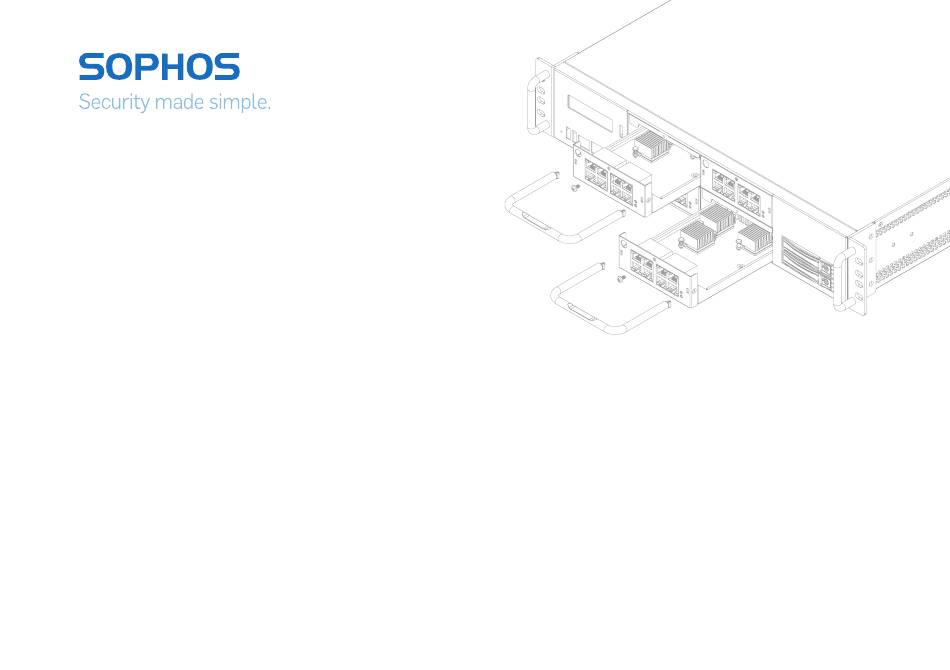

- Page 2 SG 550/650 LAN Modules Mounting Instructions Scope of supply Mounting 1x LAN module Unscrew the metal plate of the next vacant slot and remove it. 1x handle Push the LAN module half way into the slot. 1x screw Hook the handle into the holes of the LAN module and The LAN module can only be used with SG 550/650 rev.1 push it until it locks into place.
- Page 3 SG 550/650 LAN Modules Mounting Instructions Lieferumfang Befestigung 1x LAN Modul Lösen Sie die Schraube des nächsten freien Einschubes und entfernen Sie die Metallplatte. 1x Griff Schieben Sie das LAN Modul zur Hälfte in die Öffnung. 1x Schraube Haken Sie den Griff in die Aussparungen und schieben Das LAN Modul kann nur mit SG550/650 rev.1 Appliances Sie das Modul ein, bis es einrastet.
- Page 4 Tel: +44 (0)8447 671131 Toll Free: 1-866-866-2802 Tel: +61 2 9409 9100 Email: salesasia@sophos.com Email: sales@sophos.com Email: nasales@sophos.com Email: sales@sophos.com.au Boston, USA | Oxford, UK © Copyright 2014. Sophos Ltd. All rights reserved. All trademarks are the property of their respective owners. 07.14.GH.Simple...
