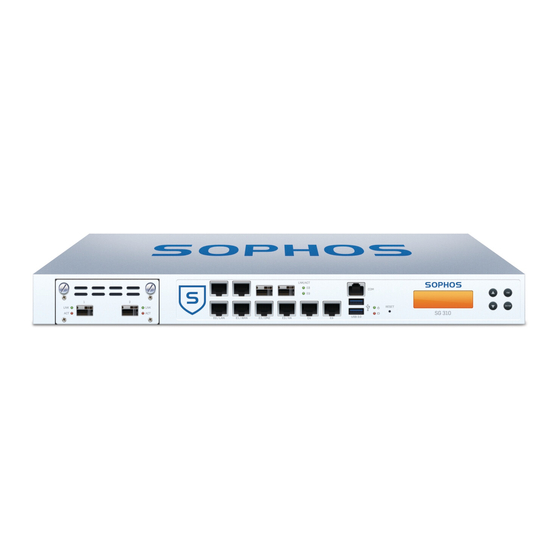

Sophos SG 310 Mounting Instructions

Rackmount Kit Mounting Instructions

Scope of Supply

2 rack mount brackets

Step 1

Secure a rear mounting plate to each support bar by
using two M4 screws.

Step 2

Mount the support bars on each side of the
appliance by using three M4 screws. Adjust their
position to fit the depth of your rack.

Step 3

Mount the brackets to each side at the front of the
appliance by using three M4 screws.
United Kingdom and Worldwide Sales
Tel: +44 (0)8447 671131
Email: sales@sophos.com
© Copyright 2018. Sophos Ltd. All rights reserved.
Sophos is the registered trademark of Sophos Ltd.
2 rear mounting plates
North American Sales
Toll Free: 1-866-866-2802
Email: nasales@sophos.com
SG/XG 310/330
2 support bars
Front side
Australia and New Zealand Sales
Tel: +61 2 9409 9100
Email: sales@sophos.com.au
Rev. 2
16 M4 x 8 screws
Rear side
Asia Sales
Tel: +65 62244168
Email: salesasia@sophos.com
18-03-19 (2965-DD)
