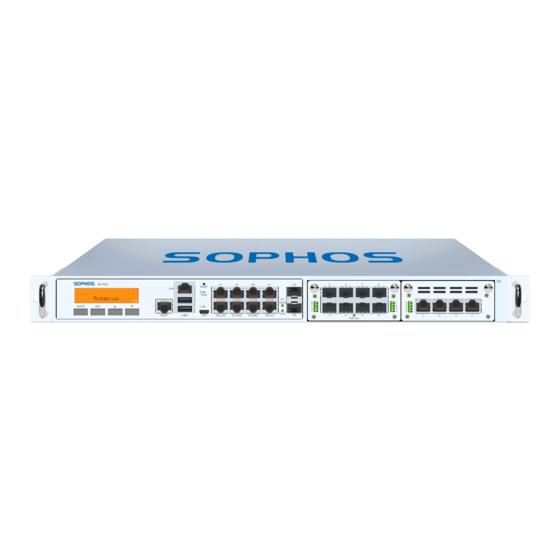

Sophos SG 450 Mounting Instructions

Power Supply Module Mounting Instructions

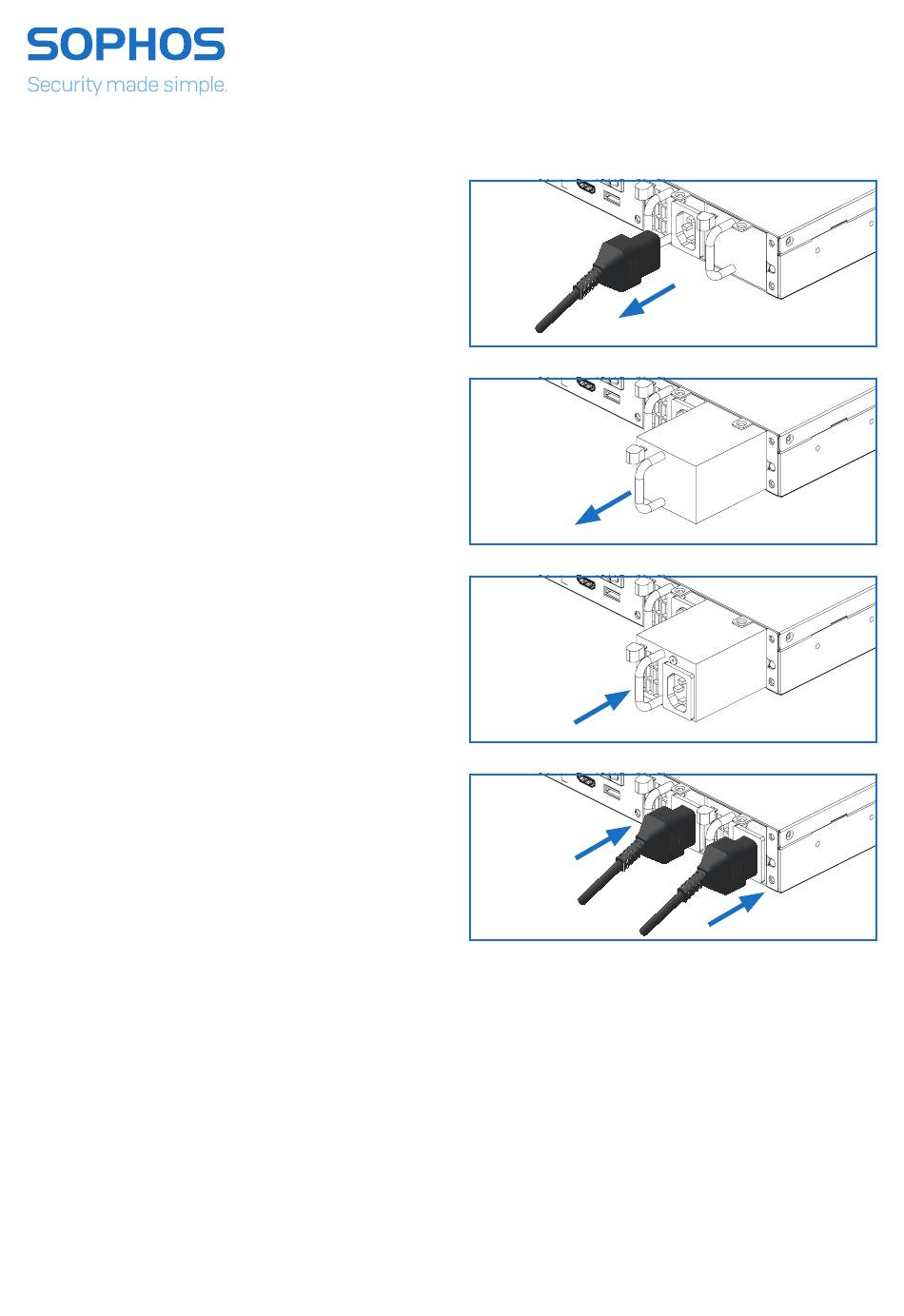

Step 1

Shut the appliance down and remove the power cord.

Step 2

Open the interlock of the power supply dummy and
remove it from the vacant slot.

Step 3

Insert the redundant power supply module into the
slot and lock it.

Step 4

Plug one power cord into each module and turn
the unit on. Check that the LED on each module
is green. If one LED is red and you hear a beeping
sound then the module is either defective or not
connected properly.
*
