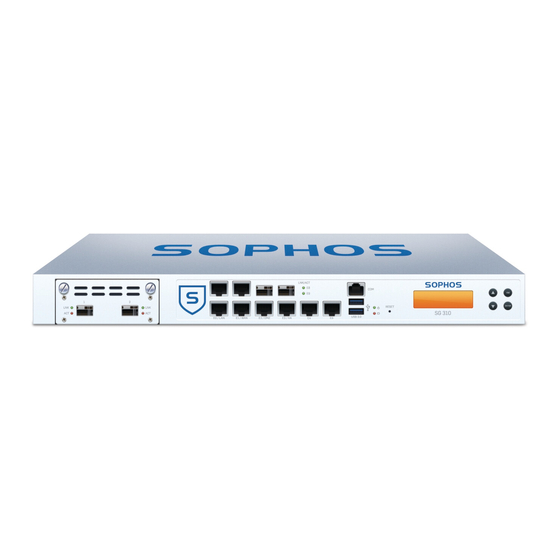

Sophos SG 310 Mounting Instructions

SOPHOS
Security made simple.

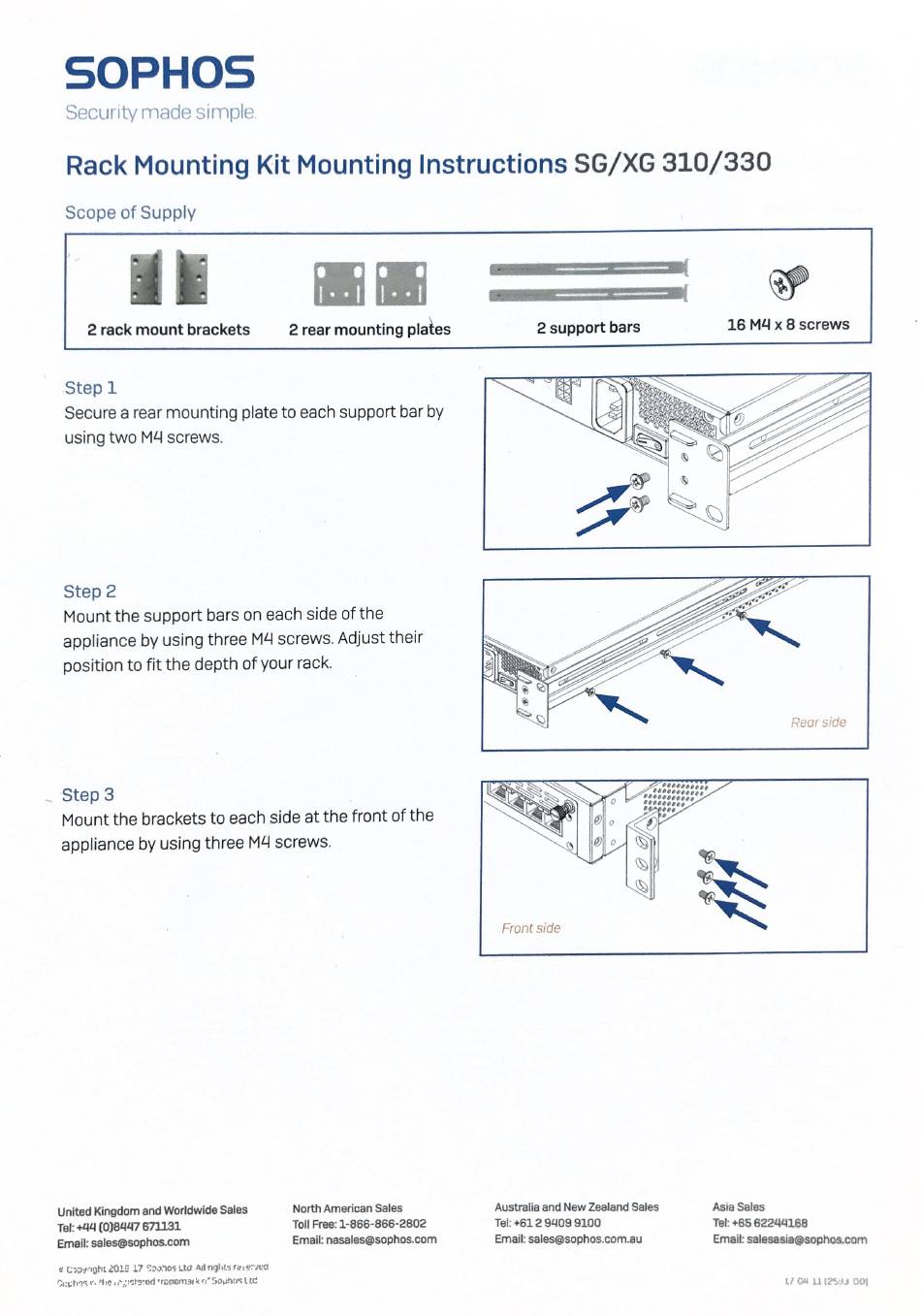

Rack Mounting Kit Mounting Instructions SG/XG 310/330

Scope of Supply

2 rack mount brackets
\

.Step 1

Secure a rear mounting plate to each support bar by
using two WI screws.

Step 2

Mount the support bars on each side of the
appliance by using three WI screws. Adjust their
position to fit the depthof your rack.

Step 3

t
Mount the brackets to each side at the front of the
appliance by using three Mil screws.
United Kingdom and Worldwide Sales
Tel: +44 [038447 871.131
Email: sales@sophcs.com
E cow-1911:2015 17 23.1105 LU Mimi-Ls
2 rear mounting plates
‚
North American Sales
Toll Free: 1-866-866-2802
Email: nasales@sophos.com
13:11:"ch
2 support bars
Front side
Australia and New Zealand Sales
Tel: +61 2 9409 9100
Email: sales@sophos.com.au
16 Mil x 8 screws
Rear side
