Power Supply Module Mounting Instructions

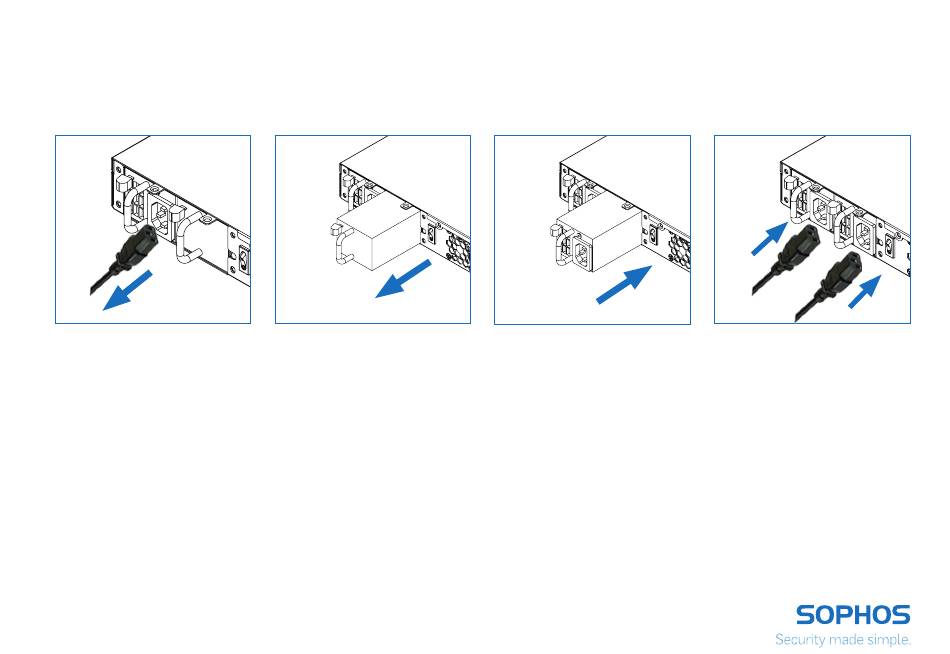

Step 1
Shut the appliance down and
remove the powercord.
*For more information and technical support please visit www.sophos.com/en-us/support
United Kingdom Sales:
North American Sales:
Tel: +44 (0)8447 671131
Toll Free: 1-866-866-2802
Email: sales@sophos.com
Email: nasales@sophos.com
Boston, USA | Oxford, UK © Copyright 2014. Sophos Ltd. All rights reserved. All trademarks are the property of their respective owners. 02.14v1.dNA
Step 2
Open the interlock of the
power supply dummy and
remove it from the vacant
slot.
Australia & New Zealand Sales
Tel: +61 2 9409 9100
Email: sales@sophos.com.au
SG 450
Step 3
Insert the redundant power
supply module into the slot
and lock it.
Step 4
Plug one power cord into each
module and turn the unit on.
Check that the LED on each
module is green.
If one LED is red and you hear
a beeping sound then the
module is either defective or
not connected properly.*
