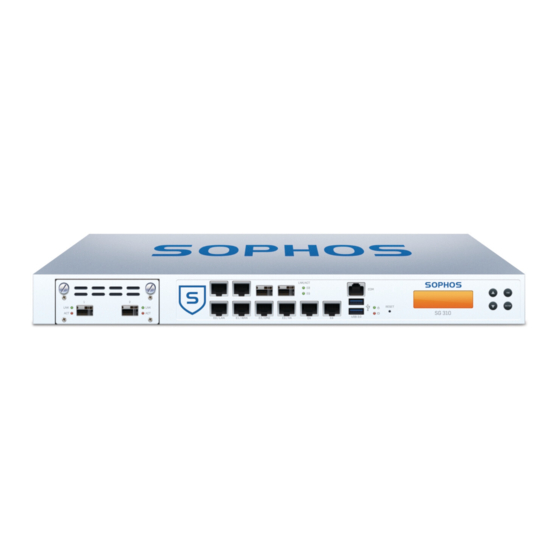

Sophos SG 210 Mounting Instructions

Sophos SG 210 Mounting Instructions

Lan modules
Hide thumbs Also See for SG 210:

Advertisement

Available languages

Available languages

Quick Links

LAN Modules
Mounting Instructions
SG/XG 210
, SG/XG 230/310/330/430/450
Rev. 3
Rev. 2

Advertisement

loading
Need help?

Need help?

Do you have a question about the SG 210 and is the answer not in the manual?

Questions and answers

Summary of Contents for Sophos SG 210

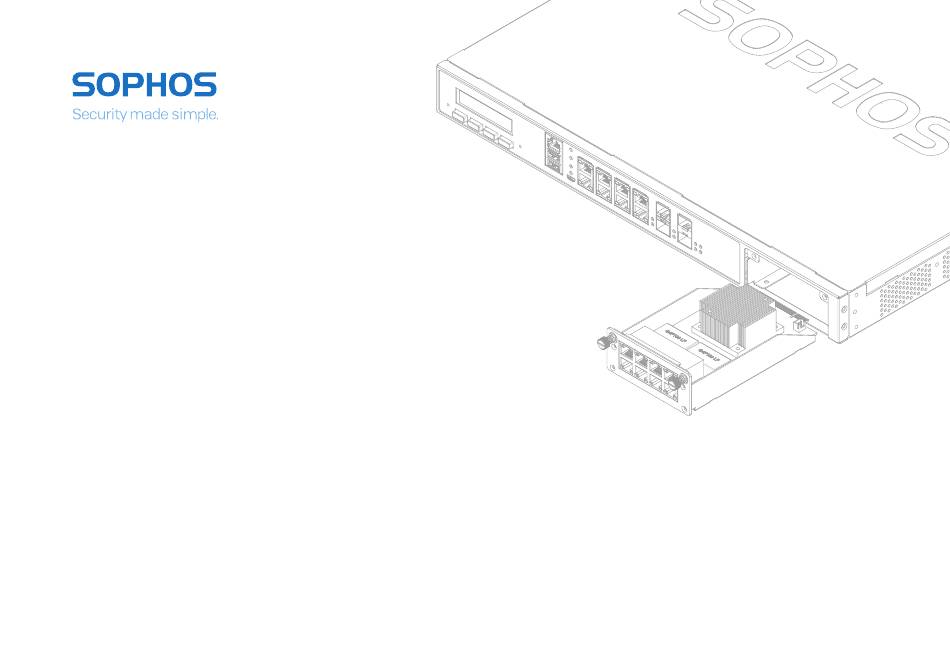

  • Page 1 LAN Modules Mounting Instructions SG/XG 210 , SG/XG 230/310/330/430/450 Rev. 3 Rev. 2...
  • Page 3 LAN Modules Mounting Instructions Please note Mounting Before installing/removing any LAN module please make 1. Unscrew the metal plate from the vacant slot you want to use sure that the appliance is powered off and power cables 2. Remove the metal plate are removed.
  • Page 4 LAN Modules Mounting Instructions LEDs on each Ethernet connector For RJ45 Ethernet connector ACT/LINK Green Constantly 1. The Ethernet port is receiving power. (Left LED) 2. Good linkage between the Ethernet port and hub. Flashing The adapter is sending or receiving network data. The frequency of the flashes varies with the amount of traffic. 1.
  • Page 5 Montageanleitung für LAN-Module Hinweis Montage Vergewissern Sie sich vor dem Einbau oder Ausbau von 1. Schrauben Sie die Metallplatte von dem freien Slot ab, den LAN-Modulen, dass die Appliance ausgeschaltet ist und Sie verwenden möchten. die Stromkabel abgezogen wurden. 2. Nehmen Sie die Metallplatte ab. 3.
  • Page 6 Montageanleitung für LAN-Module LEDs am jeweiligen Ethernet-Anschluss RJ45 Ethernet-Anschluss ACT/LINK Grün Leuchtet 1. Der Ethernet-Port wird mit Strom versorgt. 2. Verbindung zwischen Ethernet-Port und Hub funktioniert. (Linke LED) Blinkt Der Adapter sendet oder empfängt Netzwerkdaten. Die Blinkfrequenz hängt von der Menge des Datenverkehrs ab. 1.
  • Page 8 Registered in England and Wales No. 2096520, The Pentagon, Abingdon Science Park, Abingdon, OX14 3YP, UK Sophos is the registered trademark of Sophos Ltd. All other product and company names mentioned are trademarks or registered trademarks of their respective owners.
