SMART-AVI VDX User Manual

Technical Specifications

VDX SPECIFICATIONS
Video
Bandwidth 400 MHz
Analog Signal Level 1 Volt
Impedance 75 ohms
Connector High Density HD15
VGA/SVGA/XGA/UXGA/
Format
RGBH/RGBsB
TTL horizontal SyncRange:
Sync 15 to 130 KHz Vertical Sync
Range 30 to 120 Hz
RS232
Bi-directional Transmit Receive
Connection
Only, RXD, TXD
System Cable
Type CAT5 UTP EIA 568A
Connector RJ45
Power
Requirements 5V DC @1A
Connector 5x2.1mm DC jack
Weight .5 lb (0.3 Kg)
ORDER INFORMATION
Model Description
Extends Video and RS232 up to
VDX
1000ft using cat5
© Copyright 2008 Smart-AVI, All Rights Reserved
Notice
The information contained in this document is
subject to change without notice. Smart-AVI makes
no warranty of any kind with regard to this material,
including but not limited to, implied warranties
of merchantability and fitness for any particular
purpose.
Smart-AVI will not be liable for errors contained
herein or for incidental or consequential damages
in connection with the furnishing, performance or
use of this material.
No part of this document may be photocopied,
reproduced or translated into another language
without prior written consent from Smart-AVI.
For the complete manual, visit www.smartavi.com.
2840 N. Naomi Ave.
Burbank, California 91504
Phone: (818) 565-0011
Facsimile: (818) 565-0020

User Manual

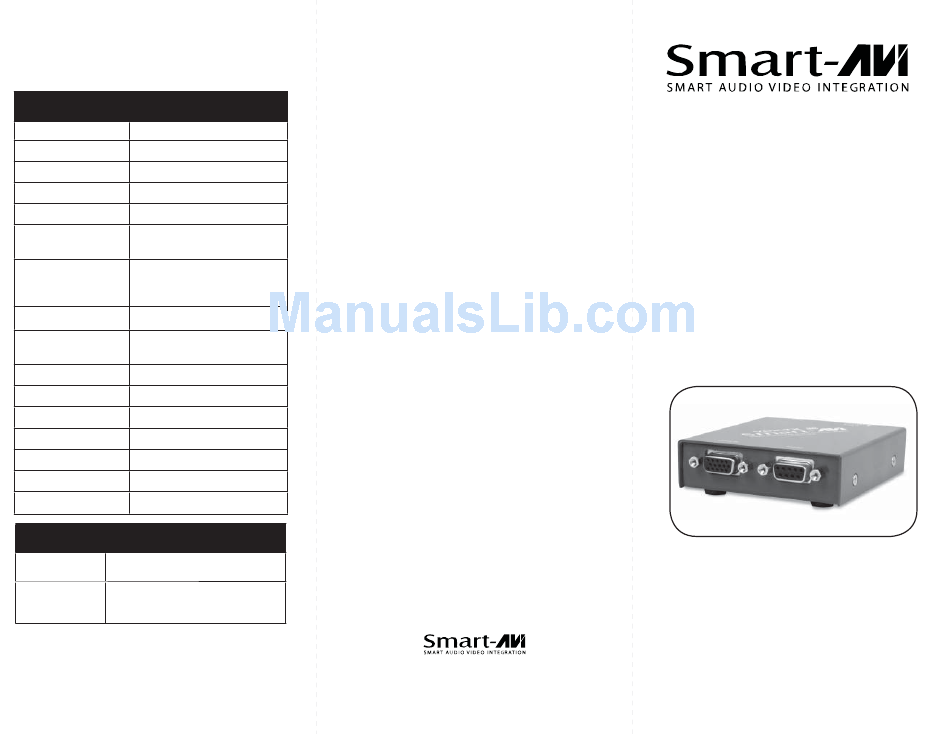

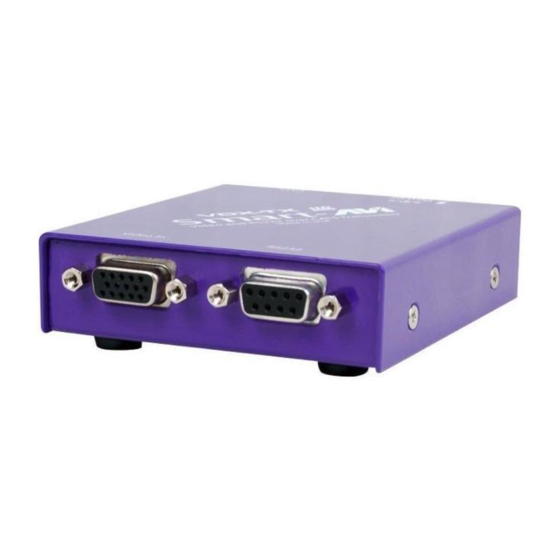

VDX
Use a single CAT5 to broadcast
high resolution UXGA and RS232
1000ft away
