SMART-AVI VDX Quick Start Manual

WHAT'S IN THE BOX
PART NO. QTY DESCRIPTION
VDX-TX-S 1 VGA UXGA/Audio Transmitter
VDX-RX-S 1 VGA UXGA/Audio Receiver
Power 1 5VDC
Quick Start 1 Parts and set-up guide
Guide
TECHNICAL SPECIFICATIONS
VIDEO
Bandwidth 400MHz
Analog Signal Level 1 Volt
Impedance 75 ohms
Connector High Density HD15
Format VGA (XGA/UXGA/RGBHV)
CONTROL
RS-232 Bi-directional, RXD-TXD
System
CAT5 Connector RJ45
OTHER
5V DC @ 500mA
Power
0.1 lbs
Weight
NOTICE
The information contained in this document
is subject to change without notice. SmartAVI
makes no warranty of any kind with regard to
this material, including but not limited to,
implied warranties of merchantability and
fitness for particular purpose.
SmartAVI will not be liable for errors con-
tained herein or for incidental or consequen-
tial damages in connection with the furnish-
ing, performance or use of this material.
No part of this document may be photocop-
ied, reproduced, or translated into another
language without prior written consent from
SmartAVI Technologies, Inc.
Many industry-leading companies have recognized the innova-
tion and power of SmartAVI's technologies and have success-
fully implemented them within their systems. Users of Smar-
tAVI technology include:
800.AVI.2131
Tel: (818) 503-6200 Fax: (818) 503-6208
11651 Vanowen St. North Hollywood, CA 91605
SmartAVI.com
Designed and Manufactured in the USA

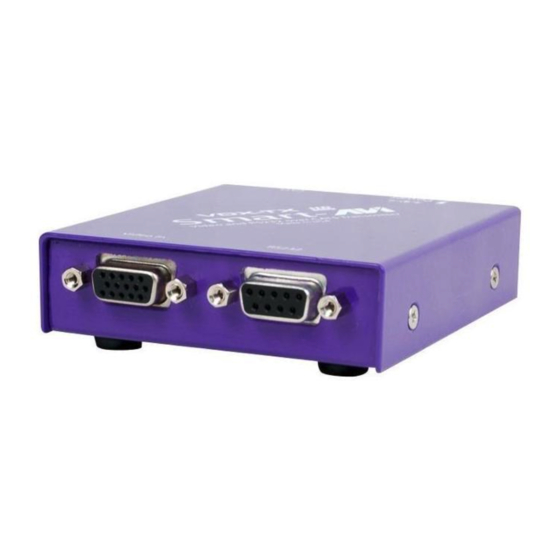

VDX
1080p HD VGA UXGA Video Signal
and Stereo Audio Extender
Enhance VGA distribution and
extension via CAT5 cables at
distances up to 1000 feet

Quick Start Guide
