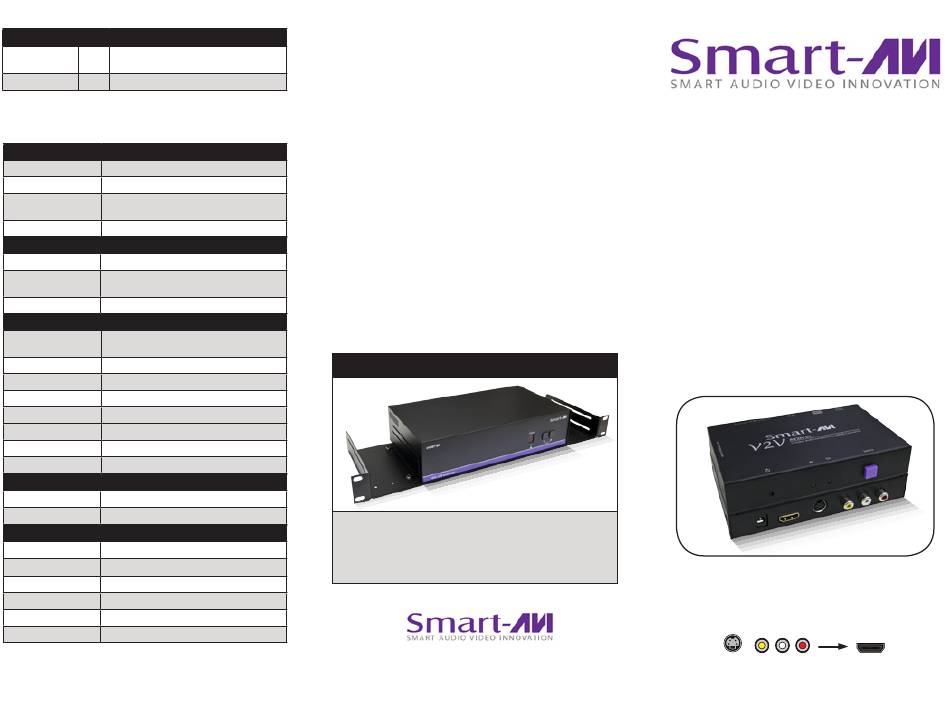

SMART-AVI V2V-AV2H-01S Installation Manual

What's in the Box?
PART NO. QTY DESCRIPTION
V2V-AV2H-01 1 SVideo, Composite Video and Audio to HDMI
Converter
PS5VDC2A 1 5 Volt 2 Amp Power Supply

Technical Specifications

COMPOSITE VIDEO
Input Format NTSC/PAL/SECAM
Output Formats NTSC/PAL/SECAM
Resolution 800 x 600, 1024 x 768,
up to 1280 x 1024@60Hz
Input Interface (3) RCA Female
S-VIDEO
Input Format NTSC/PAL/SECAM
Resolution 800 x 600, 1024 x 768,
up to 1280 x 1024@60Hz
Input Interface (1) S-Video Female
HDMI VIDEO
Format HDMI 1.3b [Deep Color, xvYcc color space
supported]
DVI Compliance Single-link DVI-D 1.1
HDCP Compliance 1.0/1.1
Video Bandwidth Single-link 340MHz [10.2Gbps]
Resolution 480i,480p,720i,720p,1080i,1080p
Output Interface (1) HDMI[7.1ch audio & video]
Connector Type A[19-pin female]
Maximum Distance 25 ft.
AUDIO
Signal Type Stereo Unbalanced
Ouput Interface Left/Right RCA (Female)
OTHER
Power External 100-240 VAC/5VDC2A @10W
Dimensions 5.25 in W x 3.5 in H x 1 in D
Weight 0.71 lb
Operating Temp. 0-55 °C (32-131°F)
Storage Temp. -20-85 °C (-4-185 °F)
Humidity Up to 95%
© Copyright 2012 SmartAVI, All Rights Reserved
NOTICE
T h e i n f o r m a t i o n c o n t a i n e d i n t h i s d o c u m e n t
is subject to change without notice. Smart-AVI makes
no warranty of any kind with regard to this material,
including but not limited to, implied warranties of
merchantability and fitness for any particular purpose.
Smart-AVI will not be liable for errors contained herein or for
incidental or consequential damages in connection with the
furnishing, performance or use of this material.
No part of this document may be photocopied, reproduced or
translated into another language without prior written consent
from Smart-AVI.
For more information, visit www.smartavi.com.

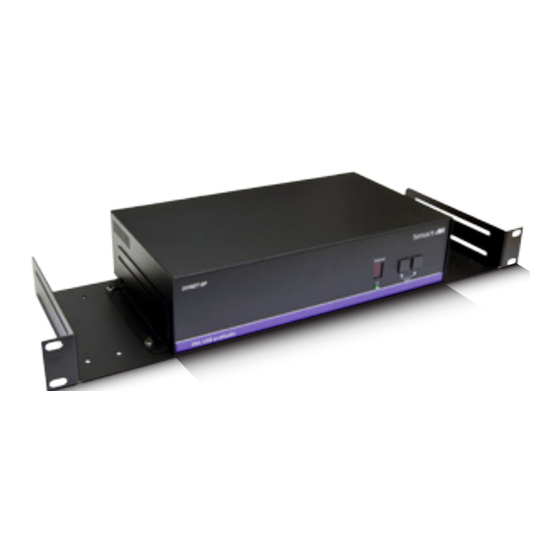

Rack Mountable Option

Our SmartRack is the perfect solution to allow
virtually all SmartAVI devices to be custom mounted
in a standard 19" server rack. The SmartRack is fully
adjustable and can secure/organize several devices.
SmartAVI, Inc. / Twitter: smartavi
11651 Vanowen St. North Hollywood, CA 91605
Tel: (818) 503-6200 Fax: (818) 503-6208
http://www.SmartAVI.com
V2V
FAMILY
Installation
Manual
V2V- A V2H-01
S-Video and Composite to HDMI
Converter
