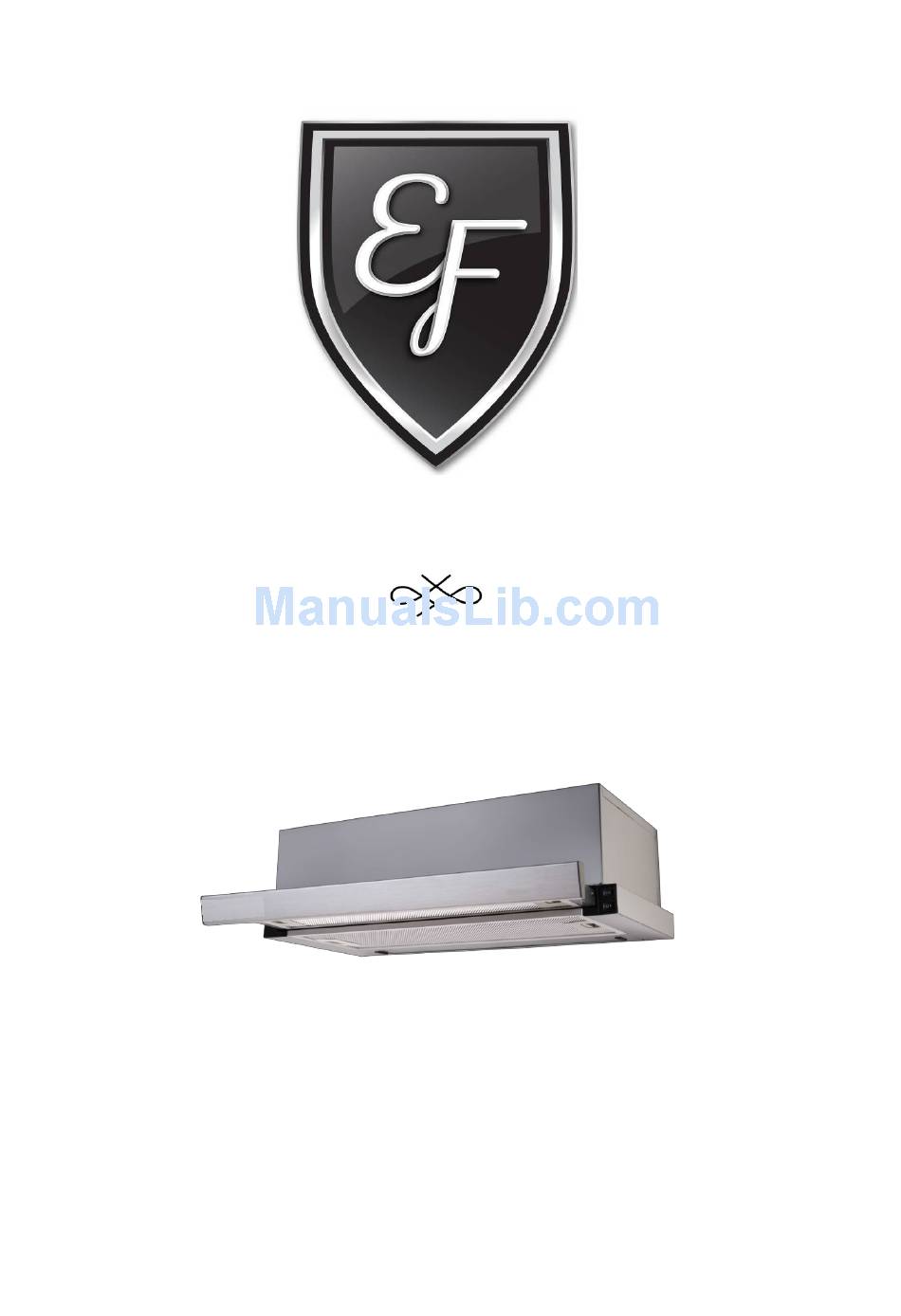

- Page 1 TELESCOPIC HOOD EFCH 9401 HM SS THE BEAUTY OF SIMPLICITY USER MANUAL...
-
Page 2: Table Of Contents
Table of Content •From the Manufacturer •Specifications •Description of Parts •Safety Regulations •Control switch operation • Re-circulating • Installation Instructions •Electrical Connection •Cleaning & Maintenance •Troubleshooting •Schematic Diagram... -
Page 3: From The Manufacturer
Dear Customer, Thank you for having purchased and given your preference to our product. This manual provides a means to make full use of the features of this product. We recommend that you read this manual for best performance and to extend the life of your appliance. Please preserve this manual for future use, in the event that doubts arise relating to the operation From the Manufacturer This appliance and the packaging are produced by processes that minimize waste and friendly... -
Page 4: Description Of Parts
Description of Parts Extractable Group Light Switch Motor Control Filters Lamps Charcoal Filter 4 screws 4 screws（5mm×L15mm) are used for hanging the hood to the ceiling. -
Page 5: Safety Regulations
Safety Regulagtions Do not connect the appliance if there are obvious signs of transportation damage. • Read this user manual thoroughly before attempting to use this appliance. • Installation and repair should be attempted only by qualified technical personnel. • Do not modify any part of this appliance •... -
Page 6: Control Switch Operation
Operation By pressing the button shown in the below, you will be able to control the functions of the extractor. Light Speed Automatic High To achieve better extraction, we recommend switching on the power(by pulling out of extractor) a few minutes before starting to cook (3—5 minutes) so that the air flow is continuous and stable when extracting fumes. -
Page 7: Re-Circulating
Re-circulating This appliance is configured to operate in the re-circulating mode ONLY. RE-CIRCULATING MODE The cooking smells and odours are passed through a cleaning filter. Once filtered, the air is • recirculated into the kitchen through the grille on the upper part of the front on the appliance. Caution: In recirculating mode, charcoal filter is to be fitted. -
Page 8: Installation Instructions
Installation Instructions Unless otherwise specified, the distance between the cooking appliance to the lower part of the hood must not be less than 60cm for electric cookers and 65cm for gas cookers. Cabinet Mounting Drill 4 holes of Ø 6mm at the bottom of the cabinet according to the positions of the screw holes on top of the cooker hood (A) Put the one-way valve on the cooker hood screw holes and lift the cooker hood to the bottom of the cabinet. -
Page 9: Electrical Connection
Electrical Connection Before completing any connection, make sure the house voltage corresponds to the voltage indicated on the label affixed inside the appliance It is advisable to call a qualified technician to make the electrical connection. Appliance fitted with plug Connect it to a socket which conforms to current regulations. -
Page 10: Troubleshooting
Troubleshooting Symptoms Possible Cause Action Check that the plug is No electrical supply connected and the main Plug and main switch not switched is turned on. connected Check if the switch is Motor does not function Damaged switch or short damaged or short circuit –... -
Page 11: Schematic Diagram
Schematic Diagram 2 motor version... - Page 12 Please note: Casa (S) Pte Ltd reserves all rights to the final interpretation of the content of this manual. Customer will not be notified in the event of any amendments to the content. For original parts & reliable service: CASA (S) PTE LTD 15 KIAN TECK CRESCENT, SINGAPORE 628884 TEL:+65 6268 0077...
