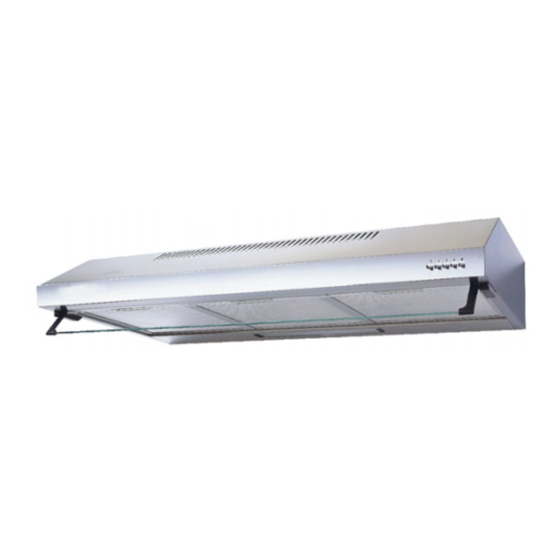

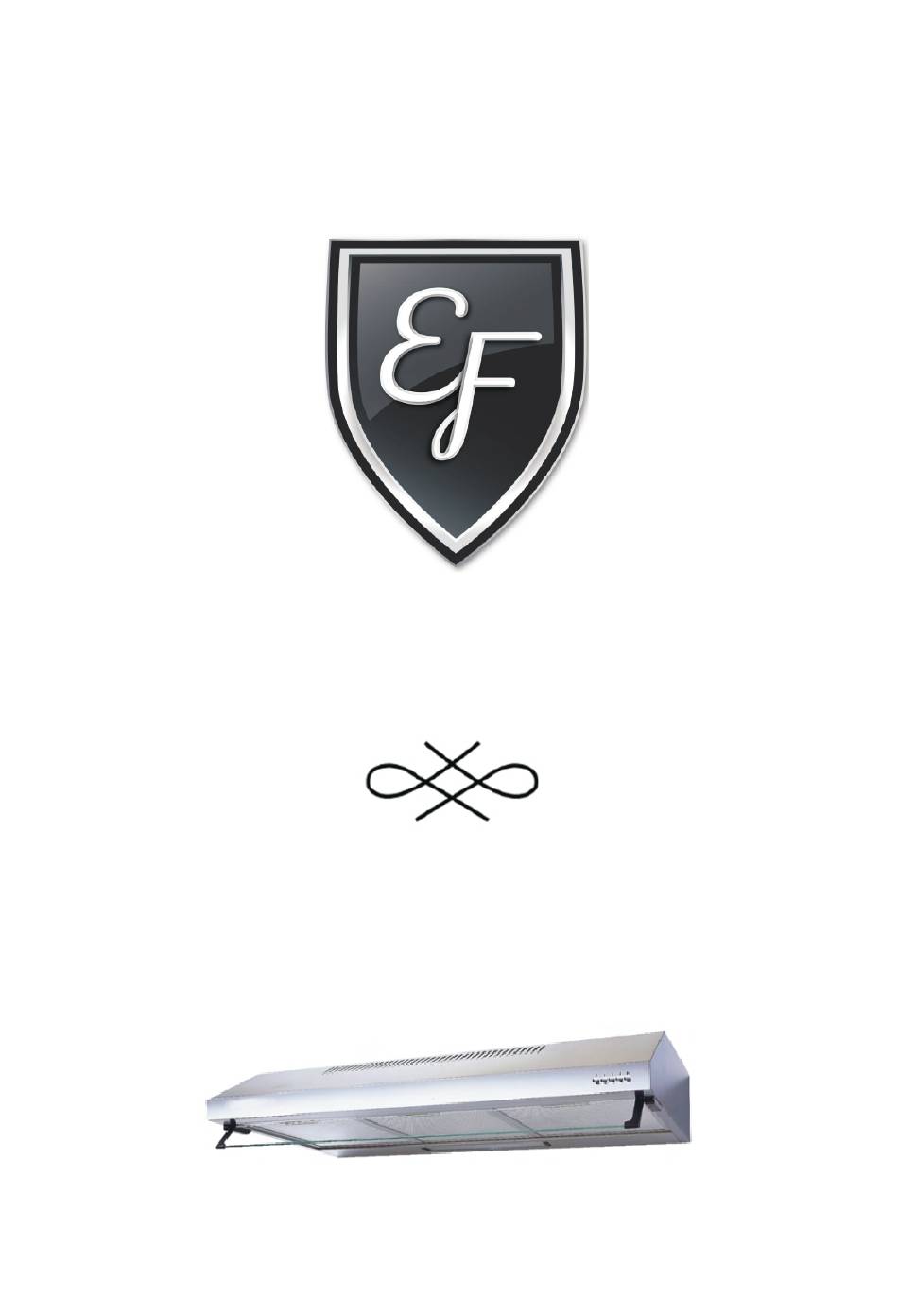

- Page 1 EFCH 6101 HM SS SLIM HOOD EFCH 9101 HM SS THE BEAUTY OF SIMPLICITY USER MANUAL...
-
Page 2: Table Of Contents
Table of Contents From the Manufacturer Specifications SAFETY: Read this before installation Description of Parts Operation Mode Installation Operation Cleaning & Maintenance Troubleshooting... -
Page 3: From The Manufacturer
From the Manufacturer This appliance and the packaging are produced by processes that minimize waste and respect the environment. Please help us to continue the protection of the environment by disposing the packaging in a correct way. Safety! Please do not allow young children to play with the plastic bag packaging. -
Page 4: Safety: Read This Before Installation
SAFETY: Read this before installation Do not connect the appliance if there are obvious signs of transportation damage. Read this user manual thoroughly before attempting to use this appliance Installation and repair should be attempted only by qualified technical personnel. It is dangerous to modify any part of this appliance. -
Page 5: Description Of Parts
Description of Parts Stopper 2 Charcoal filters 3 Aluminium filters( for 90CM) 2 Aluminium filters( for 60CM) 6 Screws 2 screws are used for fixing hood unit on the wall as Installation Step 3. Other 4 screws are used for fixing hood unit to cabinet as well if necessary... -
Page 6: Operation Mode
Operation Mode This appliance can be configured to operate in ducted mode or re-circulation mode: A. RE-CIRCULATION MODE This appliance is pre-configured with re-circulation mode. In re-circulation mode, fumes are filtered for grease and odour through the aluminium grease filters and the charcoal filters respectively and re-introduced into the kitchen environment. - Page 7 Setting screws Unscrew - Install the outlet connector (125mm) (connector and flexible hose not supplied). - Remove the charcoal filters (not required for ducted mode).
-
Page 8: Installation
Installation STEP 1: Remove the aluminium filters and place them in a safe location to avoid damage. STEP 2: the 2 screws on the wall (follow the required length as stated below). 538 mm for 600mm hood 838 mm for 900mm hood... - Page 9 Installation STEP 3: H STEP 4: STEP 5: STEP 6: Put back the aluminium filters.
-
Page 10: Operation
Operation The hood is equipped with 3 speed control. Use the low speed for simmering, medium speed for light cooking. Use the high speed for frying or heavy cooking. It is also equipped with a lamp to illuminate your cooking area when needed. turns off switch low speed setting medium speed setting... -
Page 11: Troubleshooting
Troubleshoot Symptoms Possible Cause Action Check that the plug is connected Not functioning No electrical supply Check that the mail switch is turned on Aluminium grease filters Clean the filters and clogged replace when dry Poor airflow Charcoal grease filters Replace charcoal clogged filters with new sets... - Page 12 For original parts & reliable service...
