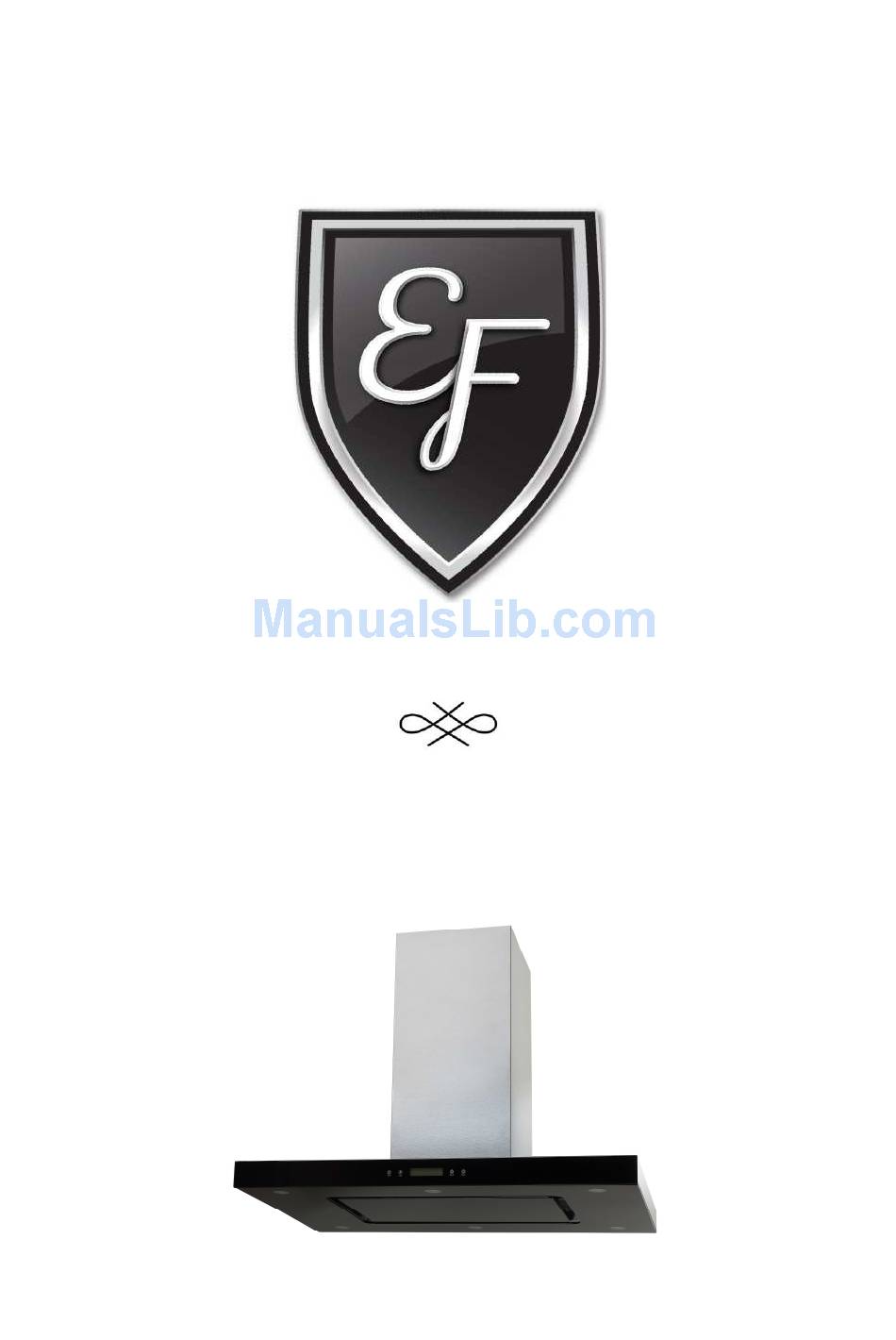

- Page 1 CK-ISLAND ISLAND HOOD FORD THE BEAUTY OF SIMPLICITY USER MANUAL CONTENT...
- Page 2 1……………………………………….Notice 2……………………………………….Feature 3………………………………………..Installation 4………………………………………..Notice of installation 5………………………………………..Safety Warning 6…………………………………………Use 7…………………………………………Maintenance 8…………………………………………Abnormity and Solution 9…………………………………………..Warranty card NOTICE...
- Page 3 1. Thank you for choosing our cooker hood. Please read the instruction manual carefully before use. 2. The installation work must be undertaken by a qualified and competent fitter. 3. The manufacturer disclaims all liability for any damage or injury caused as a result of not following instructions for installation contained in the following text.
- Page 4 2. Equipped with a large power low noise electric motor and centrifugal leaf, it produces strong suction, low noise, non stick grease filter and easy to clean. 3. With the isolated low voltage circuit board control, 12vAC input, the lights are therefore safer.
- Page 5 2. According to the hanging board, drill 12 holes in the ceiling, see pic 2, 12pcs ST6*40mm big flat screws will be used to fix the hanging board on the ceiling, then 8pcs M4*10 screws and M4 nut with gasket will be used to connect the angle iron into the hanging board, see pic 1, calculated the length of the angle iron, and 16pcs M4*10 big flat screws and M4 nut with gasket will be used to connect the angle iron and...
-
Page 6: Notice Of Installation
Pic 5 6. Hold up the hood, 16pcs M4*10 big flat screws will be used to connect the hood body into angle iron, see pic 6. 7. Put the extensible pipe on the outlet; after ensure all the things ok, put down the hook, take from the external chimney, all the installation is finished, see pic7&... -
Page 7: Safety Warning
2. It cannot share the same air ventilation tube with other appliance such as gas tube, warmer tube, and hot wind tube. 3. The bending of ventilation tube should be 120°, parallel or above the start point and should be connected to the external wall. - Page 8 Pic 10 1. Plug the hood; LCD will display 24-hour system with blue backlight. Backlight will be extinguished after 30 seconds without any operation. 2. Press “ ” button once; lights will be on and LCD will show “ ”. Press “ ”...
- Page 9 from 13;14… until 23. When LCD shows 23; it doesn’t work by pressing “ ” button. Press “ ” button once; the number reduces by 01. When LCD shows 00; it doesn’t work by pressing “ ” button. After setting hour; you can start setting minute by pressing “...
-
Page 10: Maintenance
MAINTENANCE The cleaning of the carbon grease filter mesh The filter mesh is made of high-density stainless steel. Please do not use the corrosive detergent on it. Keeping this filter clean will keep the appliance running correctly. Please strictly follow the guidelines below. Method 1: Put the mesh into 40-50 c clean water, pour on detergent, and soak for 2-3 mins. - Page 11 C. Keep the motor and other spare parts free from water, as this will cause damage to the appliance. D. Before cleaning the appliance please remember to cut off power E. The carbon filter shouldn’t be exposed to heat. F. Please don’t tear open the fixed bar around the carbon filter G.
