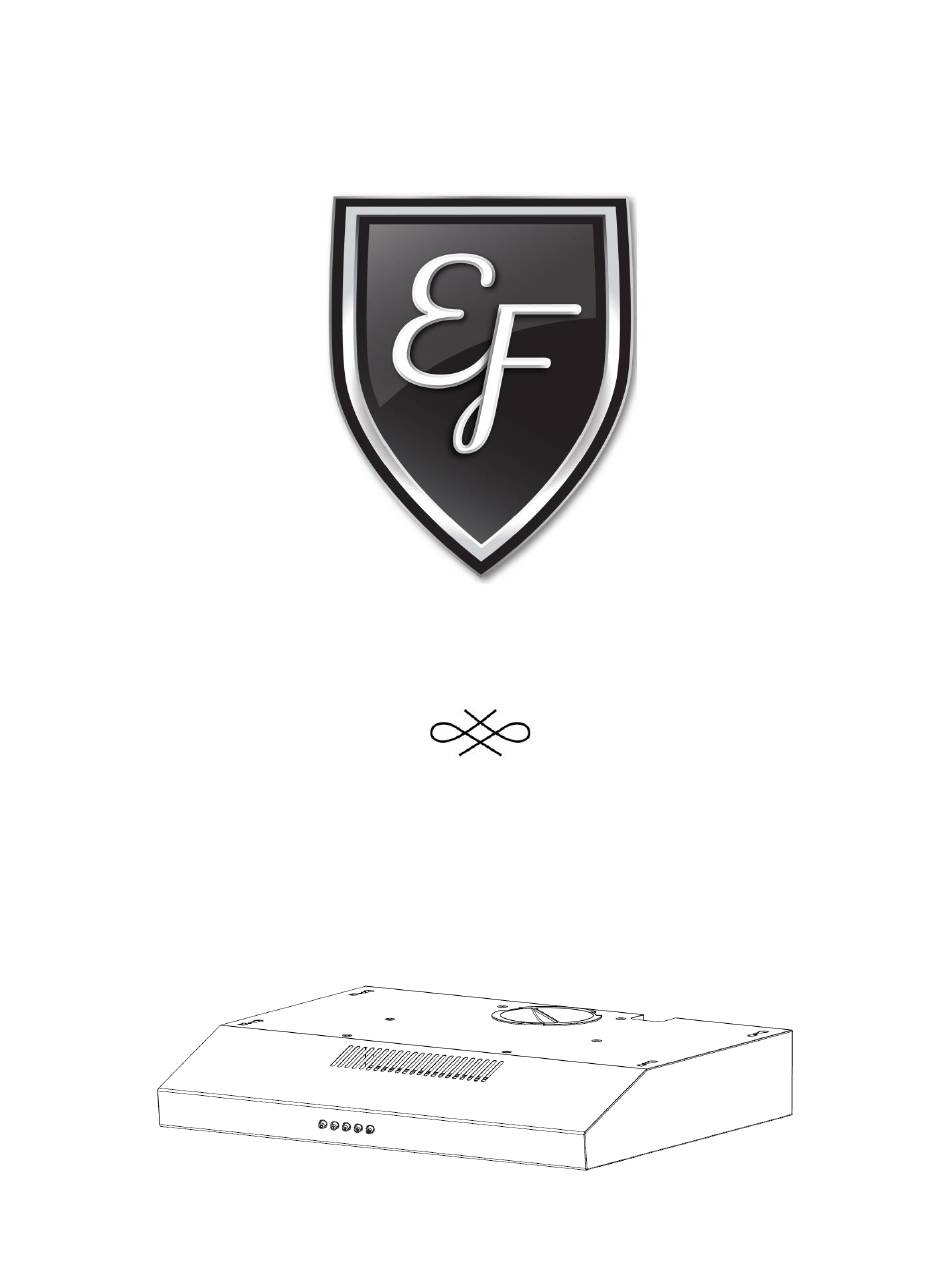

- Page 1 LICITY EFCH 9103T SS SEMI INTEGRATED SLIM HOOD EFCH 9108T BK THE BEAUTY OF SIMPLICITY USER MANUAL...
-
Page 2: Safety Guidelines
Dear Customer, Thank you forhaving purchased and given your preferenceto our product.This manual providesa means to make full use of the featuresof thisproduct.We recommend thatyou read thismanual forbest performance and to extend the life o fyour appliance. Please preserve thismanual forfutureuse, inthe event thatdoubts ariserelating t o the operation SAFETY GUIDELINES Packaging... -
Page 4: Description Of Parts
DESCRIPTION OF PARTS Parts Description Hood Body Recirculation A irOutlet ControlSwitch Charcoal Filter Aluminum Grease Filter LED Light LightCover Cable 1.65m(Total Length) Others Wall Screw ST4*30 Anchor User Manual Air outlet cover Air outlet adapter... -
Page 5: Installation
INSTALLATION INSTRUCTION This applianceis to operate inrecirculation mode and ventilation · Please ensure that the installation surface is solidand able to withstand the weight of the appliance. · The minimum installation heightfrom the "cookingappliance ” to the lower partof the hood is700mm and 600mm respectively forgas hob and electric h ob. - Page 7 The cookerhood is pre-set to operate in recirculation mode. To change the setting to ducting mode: Remove the grease filters and locate the adjuster at the center of the motor casing. Turn the adjuster to outdoor position as shown in the below photo. Remove the outlet cover, install the outlet adapter to connect the ducting hose (hose not provided) to vent the air to outside atmosphere.
- Page 8 Applian ce witho u t plug Fitan approved plug or an bi-p ol ar sw i t ch witha mini mum contactope ni ng of no lessthan 3mm. The company isnot liable forany proble ms caused by the user’ s fai l ure to comply withthe above i nstructi ons Wiring D i agram Switch...
