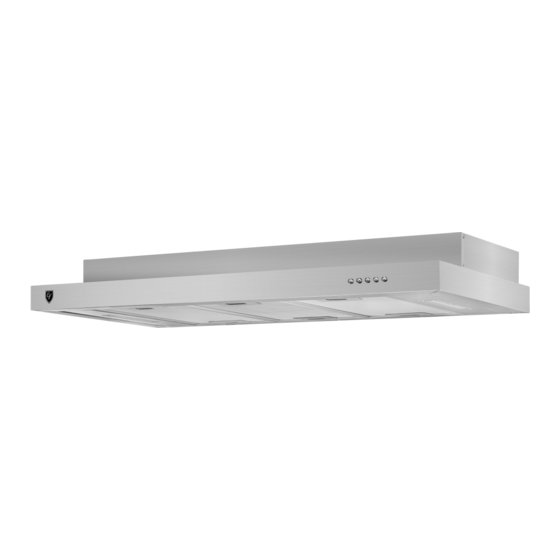

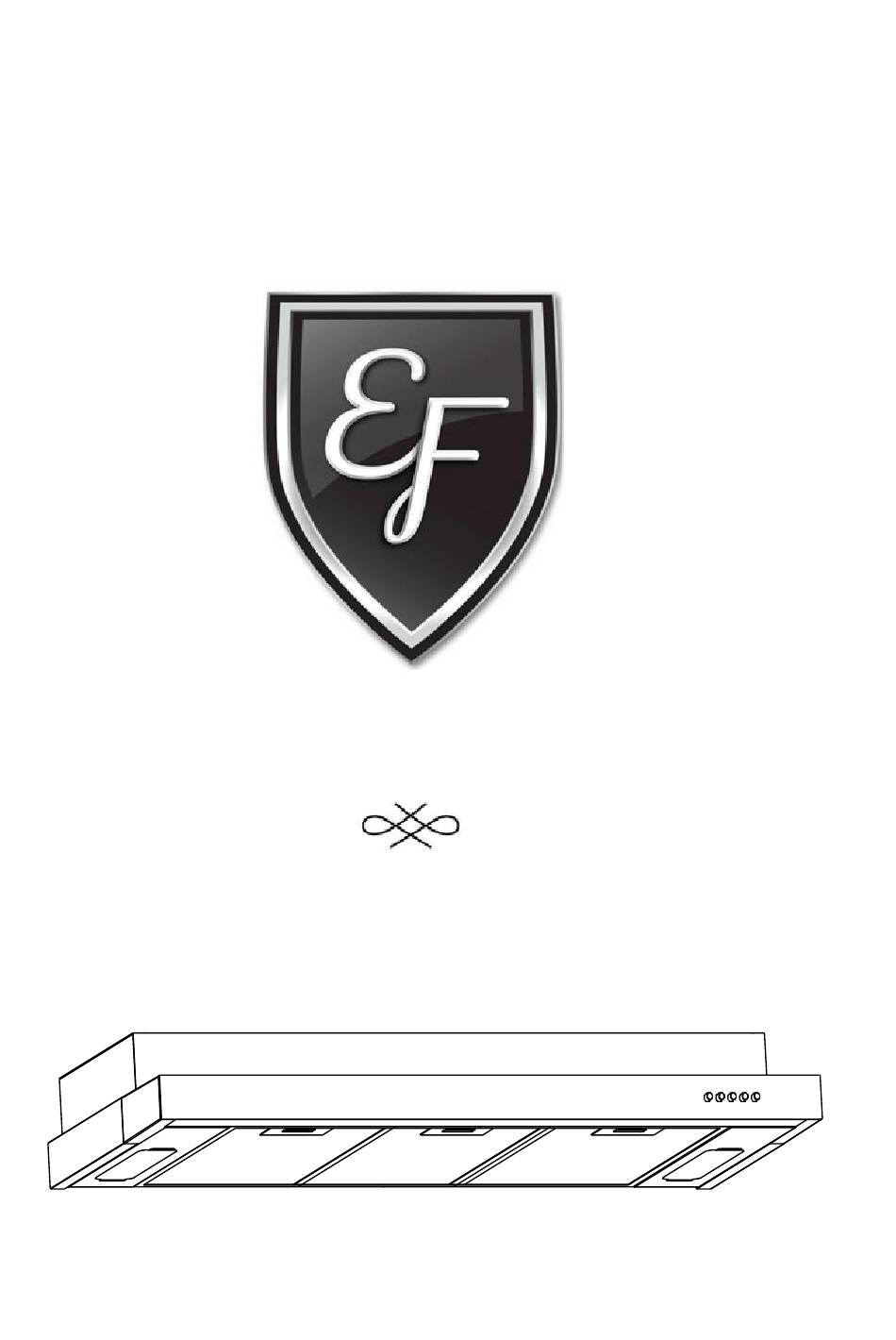

- Page 1 EFCH 6201 HM SS ULTRA SLIM HOOD EFCH 6202 HM SS EFCH 9201 HM SS EFCH 9202 HM SS THE BEAUTY OF SIMPLICITY USER MANUAL...
-
Page 2: Table Of Contents
Table of Content •From the Manufacturer •Specifications •Description of Parts •Safety Regulations •Control switch operation •Operating mode-Recirculating •Installation Instruction •Electrical Connection •Cleaning & Maintenance •Troubleshooting •Schematic Diagram... -
Page 3: From The Manufacturer
Dear Customer, Thank you for having purchased and given your preference to our product. This manual provides a means to make full use of the features of this product. We recommend that you read this manual for best performance and to extend the life of your appliance. Please preserve this manual for future use, in the event that doubts arise relating to the operation From the Manufacturer This appliance and the packaging are produced by processes that minimize waste and friendly... -
Page 4: Description Of Parts
Description of Parts 6 screws 2 screws（5mm×L35mm) are used for installing the hood to wall 4 screws（5mm×L15mm) are used for hanging the hood to the ceiling Safety Regulagtions Do not connect the appliance if there are obvious signs of transportation damage. •... -
Page 5: Control Switch Operation
Multiple plugs and extension cables must not be used. Overload is dangerous and • may cause a fire. Ensure that the power supply cord is free from any heat source or sharp objects. • The appliance should be switched off and the electrical supply has to be •... -
Page 6: Operating Mode-Recirculating
Re-circulating This appliance is configured to operate in the re-circulating mode ONLY. • The cooking smells and odours are passed through a cleaning filter. Once filtered, the air is recirculated into the kitchen through the grille on the upper part of the front of the appliance. Caution: In recirculating mode, charcoal filter is to be fitted. -
Page 7: Installation Instruction
Installation Instructions Wall Mounting The appliance should be placed at a distance of 650-750mm from the cooking surface for best effect. Drill 2 x Ø8mm holes on the wall with the distance of 470mm for 60cm cooker hood and 800mm for 90 cm cooker hood. - Page 8 Installation Instructions Cabinet Mounting Drill 4 holes of Ø 6mm at the bottom of the cabinet according to the positions of the screw holes on top of the cooker hood (C) Put the one-way valve on the cooker hood screw holes and lift the cooker hood to the bottom of the cabinet.
-
Page 9: Electrical Connection
Electrical Connection Before completing any connection, make sure the house voltage corresponds to the voltage indicated on the label affixed inside the appliance It is advisable to call a qualified technician to make the electrical connection. Appliance fitted with plug Connect it to a socket which conforms to current regulations. -
Page 10: Troubleshooting
Troubleshooting Symptoms Possible Cause Action Check that the plug is No electrical supply connected and the main Plug and main switch not switched is turned on. connected Check if the switch is Motor does not function Damaged switch or short damaged or short circuit –... -
Page 11: Schematic Diagram
Schematic Diagram 2 motor version... - Page 12 Please note: Casa (S) Pte Ltd reserves all rights to the final interpretation of the content of this manual. Customer will not be notified in the event of any amendments to the content. For original parts & reliable service: CASA (S) PTE LTD 15 KIAN TECK CRESCENT, SINGAPORE 628884 TEL:+65 6268 0077...
