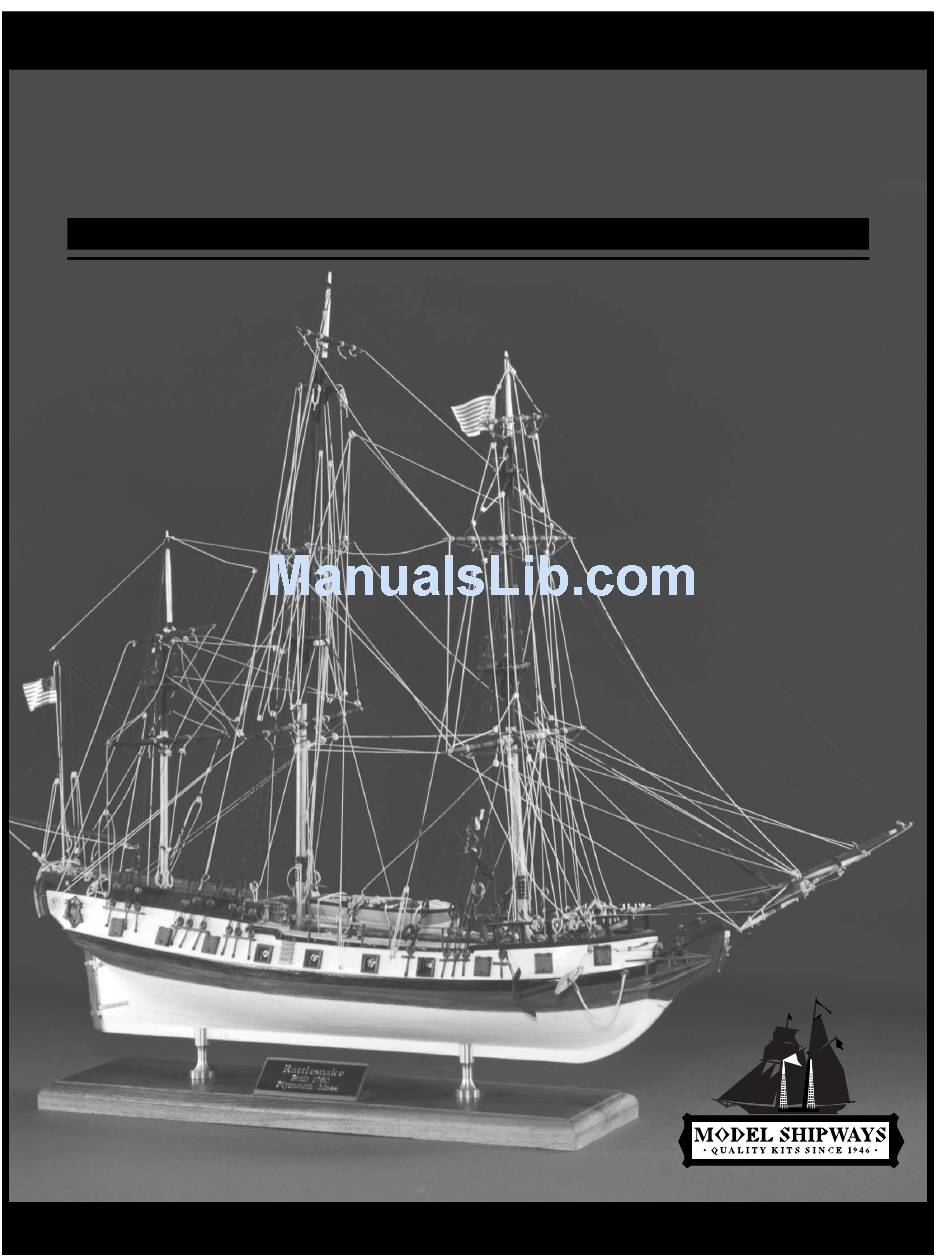

INSTRUCTION MANUAL
Rattlesnake
MASSACHUSETTS PRIVATEER
Technical Characteristics
Scale: 3/16" = 1' 0" (1: 64)
Overall Length: 28"
Overall Width: 9"
Overall Height: 18"
Hull Width: 4-1/4"
MODEL SHIPWAYS KIT
NO. MS2028

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Rattlesnake MASSACHUSETTS PRIVATEER and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Model Shipways Rattlesnake MASSACHUSETTS PRIVATEER

Summary of Contents for Model Shipways Rattlesnake MASSACHUSETTS PRIVATEER

  • Page 1 INSTRUCTION MANUAL Rattlesnake MASSACHUSETTS PRIVATEER Technical Characteristics Scale: 3/16” = 1’ 0” (1: 64) Overall Length: 28” Overall Width: 9” Overall Height: 18” Hull Width: 4-1/4" MODEL SHIPWAYS KIT NO. MS2028...

  • Page 2: Introduction/Credits

    The History of American Sailing Ships, and also The Search for Speed Under Sail. The rig- ging and deck equipment is based on contemporary texts. The Model Shipways kit of Rattlesnake initially offered a solid hull model. This kit has now been converted to a Plank-On-Bulkhead type hull. The P-O-B hull plans were prepared in 1994 by Ben Lankford along with this complete new instruction manual.

  • Page 3: Brief History

    Brief History It was supposedly in 1781 that Rattlesnake was built as a privateer at Plymouth, Massachusetts for a Salem syndicate; John Andrews, and oth- ers. The Preble Papers in the Massachusetts Historical Society indicate that the designer and builder was John Peck of Boston. She was first commissioned on June 12, 1781 with Master Mark Clark at the helm.

  • Page 4: Table Of Contents

    CONSTRUCTION STAGES & TABLE OF CONTENTS Brief History Pg 3 9. Kevels & Chesstrees Pg 24 Introduction/Credits Pg 2 10. Galley Chimney Pg 24 Before You Begin Pg 5 11. Channels Pg 24 What You'll Need to Start Construction Pg 5 12.

  • Page 5: Before You Begin

    BEFORE YOU BEGIN WHAT YOU’LL NEED TO START CONSTRUCTION The Rattlesnake is a very beautiful ship The following tools and supplies are rec- J. Finishing and makes a splendid model. The ommended for the construction process. 1. Paint Brushes plank-on-bulkhead hull construction Modelers who have built before may a.

  • Page 6: How To Work With The Plans & Parts

    However, if needed, it will be 6. Soldering & Working with Brass plans by using a set of draftsman di- provided in Model Shipways kits. The Rattlesnake is a ship from a period viders or by using a "tick" strip, which is Note: Your kit may contain European that had very little iron fittings.

  • Page 7: Painting & Staining The Model

    PAINTING & STAINING THE MODEL It may seem strange to begin an instruc- Tops & Doublings (top up and includ- tion manual with directions on applying ing mast caps), and Bands around Fore the finishes to the model. Not so! Much and Main Mast: Black time and effort can be saved, and a more professional result can be obtained, if...

  • Page 8: Stage A: Framing The Plank-On-Bulkhead Hull

    STAGE A FIG. 1 - Assembling The Two Center Keel Pieces FRAMING THE PLANK-ON-BULKHEAD HULL 1. Bending Wood Wax paper or plastic wrap Building a P-O-B hull requires some wood bending and twisting, and the wood must remain in the desired posi- tion so as not to put too much stress on glue joints and fasteners.
  • Page 9 FIG. 2 - Installing The Keel, Stem & Stern Taper Add dowels as necessary sternpost Add keel/stem Glue scarf joints Next, mark the bevels on the bulkheads. Use a tick strip to transfer the bevel line FIG. 3 - Cutting The Rabbet in The Center Keel as shown on the plans, or cut the bulk- head patterns from the plan and glue them onto the bulkheads.

  • Page 10: Installing The Transom Framing & Transom

    Next, check the fairness of the hull form and sand in the slight bevels that were FIG. 6 - Aligning The Bulkheads, Using Battens not pre-cut. To do this, use a stiff bass- wood batten about 3/32" thick and lay it across the bulkhead edges and decks in Check alignment Check straightness of...
  • Page 11 FIG. 9 - Carving The Counter Block At Bulkhead “M” Side transom Inboard transom support–P/S support–P/S Carved counter block BHD “M” BHD = Bulkhead P/S = port/starboard FIG. 10 - Installing The Transom FIG. 11 - Installing The Two Fashion Pieces Side support Inboard support Glue...

  • Page 12: Installing The Bow & Stern Filler Blocks

    7. Installing the Bow & Stern FIG. 12 - Installing The Bow Filler Block Filler Blocks Forward of Bulkhead A and aft of Bulk- head M, add the filler blocks as shown on the plans. Carve the blocks to the hull form.

  • Page 13: Installing The Main, Forecastle & Quarter Deck Rails

    11. Installing the Main, Forecastle FIG. 14 - Installing The Main, Forecastle & Quarter Deck Rails & Quarter Deck Rails Because the forecastle deck has more curvature, it has been laser cut for you. Cut all the other rails from strip wood. At the forecastle deck, first make and in- Dowel or pin sert the rail stanchions in the pre-cut...

  • Page 14: Stage B: Planking The Plank-On-Bulkhead Hull

    STAGE B FIG. 18 - Planking With Stealers Planking the Plank-On-Bulkhead Hull Before getting started, it 's a good idea to know some of the more common shipbuilding terms that apply to the planking process. Consider the follow- ing few key words as you work: Stealer 1.

  • Page 15: Spiling

    FIG. 19 - Staggering The Planking Butts Bulkheads Real ship–must have 3 strakes between Real ship–must be 5’ or more butts on same frame (model meets rule (model meets rule) with plank length selected) modeler. However, by using shorter you would wind up with only two full While glue alone will hold the planks, pieces there are some advantages.
  • Page 16 FIG. 20 - Spiling Use a compass–run the steel point along the plank in place and mark a parallel line on a new plank with the pencil lead end Measure width & Cut out plank mark . Draw curve Wood–lay along bulkheads Plank already in place without edge bending wider.
  • Page 17 FIG. 21 - Belt Battens Look for smooth flow of battens Top of wale Battens Use a tick strip and lift the plank widths from the Hull Planking Layout. If you FIG. 22 - Planking The Counter have changed the locations of the bat- tens, simply divide the space into six equal plank widths at each bulkhead.

  • Page 18: Planking Inboard (Ceiling Planks)

    Now, move down to the next planking strake and work it the same way that you FIG. 23 - Belt “A” First & Second Strakes did the previous one. Stagger the plank butts, starting at Bulkhead E. Continue 1st strake in belt “A” (4 planks) until this strake is finished, then complete the other strakes in Belt A.

  • Page 19: Stage C: Completing The Basic Hull Structure

    STAGE C FIG. 25 - Hatch & Grating Coamings COMPLETING THE BASIC Coaming Center Keel HULL STRUCTURE 1. Correcting and Sanding After all the planks are installed, look over the entire hull. If you find seams with starved glue joints, rub some wood Scrap supports glue in the cracks and, if necessary, add for deck planking...

  • Page 20: Stage D: Mounting The Hull

    The natural wood planks will cover the existing planking, but you will still have FIG. 28 - Building The Gangways the rails exposed. You could substitute these initially with the wood of your choice, cap them with the strips, or sim- Gangway plank ply stain them to look similar.

  • Page 21: Launching Ways

    2. Launching Ways FIG. 30 - Ladders The second type of mounting that can be employed is the launching ways (or building ways ). This mount is most suit- able for models without sails. It is sup- plied in kit form with instructions. Gap so fit is snug Drilling of the keel is still required to Stile holder...
  • Page 22 FIG. 31 - Hatches & Gratings Laser-cut grating Grating ledge must suit thickness of assembled grating Coaming After assembly, sand top surface & clean out holes Option 2: Egg-crate style Option 1: Flat-edge glued Glue FIG. 32 - Binnacle FIG. 33 - Capstan Details Chimney–file from brass Top (edges over- (wood)
  • Page 23 FIG. 34 - Catheads & Anchor Details Knot Open cleat CAT STOPPER To cleat Cathead SHANK PAINTER To eyebolt in deck Belay to rail stanchion After hoisting anchor, set cat stopper Bower anchor P/S Anchor rests against billoard on Anchor hull (chafing piece) cable Wood...

  • Page 24: Elm Pumps

    FIG. 36 - Kevels & Chesstrees FIG. 37 - Galley Chimney Cleat end Line Line belays Drill hole to rep- Galley resent sheave chimney Chesstree is basically a fair- Square Round lead for line Pin or dowel to hull Fit into Thick pad deck on deck...

  • Page 25: Quarter Badges

    FIG. 40 - Cannons Breech line Eyebolts bulwark Outhaul tackle (or side tackle) Inhaul tackle CANNON RIG (or train tackle) 6 POUNDER GUN Eyebolt in deck 15. Quarter Badges 16. Cannons Cannons inside the officer's and cap- tain's staterooms need not be rigged A separate Britannia fitting is supplied for The Rattlesnake has 20 gun ports, but since the rigging cannot be seen.

  • Page 26: Ship's Name

    FIG. 41 - Ship’s Longboat Rail Knee Twart Frame Laser-cut lifts Molding Add details after carving basic hull Bottom Battens Carve/sand interior and exterior surface to boat hull lines carefully! Add keel after carving Stern Align tabs on all lifts as you glue up lifts Cut off tabs and shape profile 17.

  • Page 27: Stage F: Mast & Spar Construction

    STAGE F FIG. 43 - Shaping The Masts & Spars MAST & SPAR CONSTRUCTION At this point, your model should have a Straight line–NO! considerable amount of stuff on board. Take another look, correct mistakes and touch up paint blemishes. Go over the plans again.
  • Page 28 FIG. 45 - Masthead Details FIG. 46 - Fid Hole Positioning & Fid Options Mast cap Tenon Round Cut chamfers to make square into an octagon Square Add pieces on all sides Fid hole Stop cleats for to build a shoulder for jeer strops P/S trestle trees lower masts...

  • Page 29: Building & Installing The Bowsprit & Jibboom

    The boom rest for the mizzen mast is supplied laser-cut. To the laser-cut half FIG. 48 - Fore & Main Top Platform ring, you will need to add the chocks separately (see figure 49). Add the cleats around the masts as shown Rim all around curved on the plans.
  • Page 30 File edges FIG. 51 - Bowsprit Tapering & Tenon and holes to correct angle Bees Laser-cut Jibboom saddle Tenon Cleats at gammoning Hole Gammoning Shoulders for rigging BOWSPIT JIBBOOM END Fits into center keel notch FIG. 52 - Yard Details Stop cleat top &...

  • Page 31: Building The Lower, Crossjack, Topsail, Topgallant & Spritsail Yards

    FIG. 53 - Boom & Gaff Jaws Parral beads, or just a line on model Gaff jaws a little shorter than boom–cut-off this end Drill hole YES! Flat sides Laser-cut boom & gaff jaws 5. Building the Lower, 6. Building the Spanker Gaff STAGE G Crossjack, Topsail, Topgallant &...

  • Page 32: Rigging Options

    three holes for reeving the lanyards. On pull the sail in toward the mast for furl- clew lines. This gives the ship an appear- a modern day ship, such a device would ing. Bowlines are lines attached to the ance somewhat like it might be while in be replaced by a metal turnbuckle.

  • Page 33: Treating The Lines

    The diameter of lanyards for deadeyes Rigging Line Ship Size Rigging Line Ship Size and hearts can be about 1/3 the diame- Name Diameter Name Diameter ter of the line, such as a shroud. The rigging lines provided in the kit do Running Rigging Cont’d.

  • Page 34: Rigging Tools

    FIG. 54 - Seizings STARTER KNOTS Constrictor knot Clove hitch (will not loosen) Wrap Glue Constrictor knot Wrap Tuck & glue or clove hitch EYESPLICE PROCEDURE 6. Rigging Tools FIG. 55 - Rope Coils It is possible to make some homemade tools essential for the rigging process (see figure 56).
  • Page 35 The cloth must be pre-shrunk, so wash it several times. When dry, iron the cloth, FIG. 56 - Homemade Rigging Tools but be careful not to scorch it. Next, Flatten end and file shape draw the seams and hem (tabling) lines Brass rod and other reinforcements in light pencil, (Push)

  • Page 36: Rigging The Model Without Sails

    FIG. 59 - Making The Sails Sail cloth Weave same as seam line direction Pencil lines–sew seams Pencil lines–sew to represent reef bands Mark with pencil "A" "B" "C" Iron before (cut) (final shape) sewing. Easier to sew Sew seams first, "B"...

  • Page 37: Stage H: Standing Rigging

    STAGE H FIG. 61 - Furled Sails STANDING RIGGING Full size material possible using If same material "silkspan" but check bulk first Keep your lines handy, sorted by sizes, and have them all nicely beeswaxed be- Cut to about fore you start. For seizings, you can use this size for cotton, silk, or nylon sewing thread.

  • Page 38: Backstays

    2. Backstays FIG. 65 - Ratlines The topmast and topgallant backstays are similar to shrouds except there are no ratlines connected to them, except at the very top. Install them after the shrouds are installed. Cut & glue 3. Fore & Aft Stays Model option Install the fore and aft stays after the Thread with needle...
  • Page 39 FIG. 67 - Detail At The Main Mast Top Mizzen topmast stay Main topmast (Port & Stbd same) Topmast shrouds Topgallant shroud Lower lift Buntlines Ratlines Braces Futtock shrouds Mouse Futtock stave Jeers Mainstay Shrouds Main yard Truss FIG. 68 - Bowsprit Standing Rigging See large detail on Jibstay Fore topgallant stay...
  • Page 40 FIG. 69 -Rattlesnake Sail Plan Main Fore Reef bands Main Fore topsail topsail Mizzen topsail Fore topmast staysail Spanker Main Fore Fore course course staysail Spritsail topsail Sprit- sail FIG. 70 -Typical Head Sail Rig Halliard Hook halliard & (Head) downhaul together near bowsprit (Luff)

  • Page 41: Stage I: Running Rigging

    FIG. 71 - Yard Rigs–No Sail Topgallant buntline Reef line (Other lines similar to lower yard) Tie off legs under yard Knot stop TOPSAIL YARD TOPGALLANT Jeers Buntlines & leechlines knotted at block Topsail sheet & clew- line tied together Bunt Clewline Bunt...
  • Page 42 FIG.72 -Typical Spanker Sail Peak halliard Throat Seams parallel halliard to leech Lace to gaff Leech Topping Gaff downhaul–block under jaws, leads to block, lift strapped to mast at deck, then belay to mast cleat Reef bands & points (could have 3 bands) Vangs P &...

  • Page 43: Fore & Main Topgallant Sails

    Oddly, the course does not have a reef FINAL TOUCHES line. The reason; courses are hauled up by leech lines and topsails by reef lines After all the rigging is in place, re-check (see figure 71—it shows the reef line every line, and make sure all the seizings knotted off for a model without sails).

  • Page 44: Scale Conversion Table

    S C A L E C O N V E R S I O N T A B L E FORMULAS FOR CONVERTING MILLIMETERS AND INCHES R I G G I N G Diameters for Lifesize Vessel Diameters in Tenths of an Inch Diameters Converted to 3/16" Scale 1 mm = .03937 of an inch Inches in 10ths ÷...

  • Page 45: Bibliography

    (Reprinted). Additional information and drawings of Rattlesnake 3. The Young Sea Officers Sheet Anchor, by Darcey Lever.1819 (Reprinted) Contemporary rigging text and is a basis for the Model Shipways rigging plan reconstruction for Rattlesnake. Excellent drawings of the entire rig and sails.
