Crestron DM-RMC-4KZ-100-C Do Manual

DO
DM-RMC-4KZ-100-C

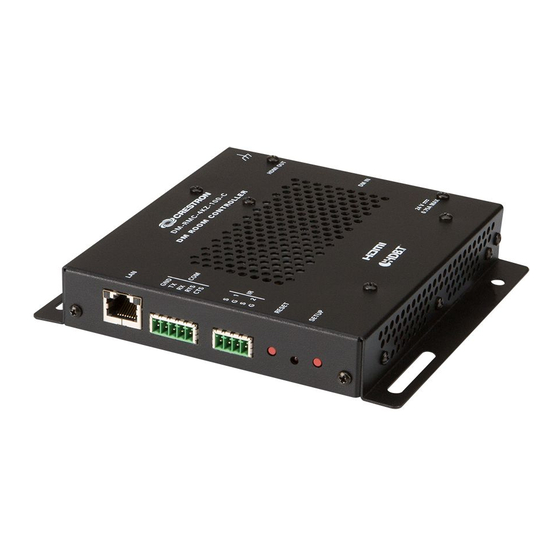

DigitalMedia 8G+ 4K60 4:4:4 HDR Receiver and
®
Room Controller
DO Install the Device
The Crestron ® DM-RMC-4KZ-100-C can be mounted onto a flat surface or onto a rack rail.
Mounting onto a Flat Surface
Using four mounting screws (not included), mount the device onto a flat surface such as a wall.
Mounting onto a Wall
Mounting onto a Rack Rail
The DM-RMC-4KZ-100-C mounts onto the front or rear rail of a rack. Position either of the two
mounting flanges so that the holes align with the holes in the rack. Then, secure the device to the
rack using two rack mounting screws (not included).
Mounting onto a Rack Rail
GUIDE
DO Check the Box
QTY PRODUCT
1 Connector, 4-Pin
1 Connector, 5-Pin
1 Power Pack, 24 Vdc 0.75 A, 100-240 Vac
DO Connect the Device
Connect the device as required for the application.

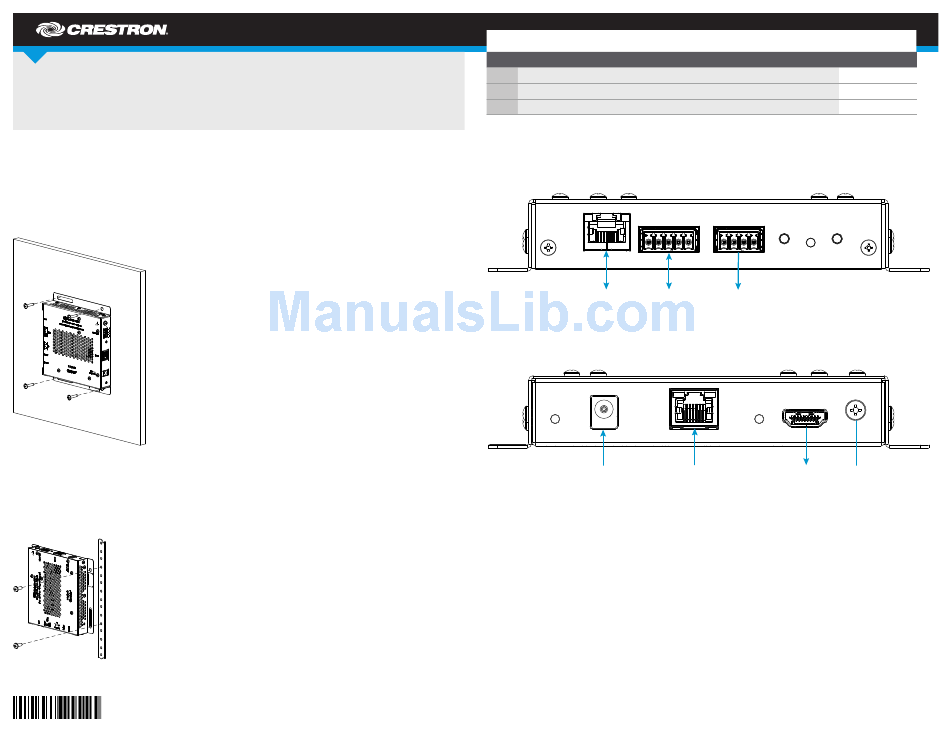

Connections, Left Side
LAN: COM:
10BASE-T/ To RS-232
100BASE-TX
device
Ethernet to local
network device
Connections, Right Side
24 V
0.75A MAX:
From
transmitter, or other
included
DM device or from
power pack
HDBaseT
NOTE: The DM IN port is a PoDM powered device (PD) port and is also compatible with HDBaseT
PoE. In order to receive PoDM, the device must be connected to a DigitalMedia™ switcher or other
equipment that has a PoDM power sourcing equipment (PSE) port. In order to receive HDBaseT PoE,
the device must be connected to equipment that has a corresponding HDBaseT PoE PSE port.
Any wiring that is connected to a PoDM or HDBaseT PoE PSE port is for intrabuilding use only and
should not be connected to a line that runs outside of the building in which the PSE is located.
Connection to the included power pack is not required when PoDM or HDBaseT PoE is used to
power the device.
NOTE: The LAN port can connect to an Ethernet switch only when the DM IN port does not connect
to a DigitalMedia switcher.
PART NUM.
2003576
2003577
2045865
IR 1–2:
To IR
controllable
devices
DM IN: HDMI OUT: Ground
From To HDMI ®
DM ® switcher, display
® device
®
