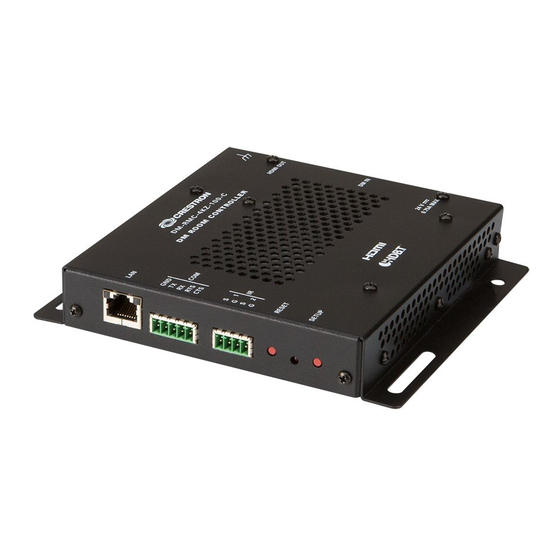

DM-RMC-4KZ-100-C
DigitalMedia 8G+® 4K60 4:4:4 HDR Receiver and Room Controller
The Crestron®
DM-RMC-4KZ-100-C
room controller that supports full 4K60 4:4:4 and high dynamic range
(HDR10) video signals. Via a CATx cable, the DM-RMC-4KZ-100-C
connects to a DigitalMedia™ switcher or transmitter or to an HDBaseT®
source. Connection to a display device is provided by a single HDMI®
output. In addition, built-in RS-232, IR, and Ethernet control ports enable
programmable control of the display device via a control system.

In the Box

1
DM-RMC-4KZ-100-C DigitalMedia 8G+ 4K60 4:4:4 HDR
Receiver and Room Controller
Additional Items
1
Connector, 4-Pin (2003576)
1
Connector, 5-Pin (2003577)
is a DigitalMedia 8G+® receiver and

Install the Device

The DM-RMC-4KZ-100-C can be mounted onto a flat surface or rack rail.

Mounting onto a Flat Surface

Using four mounting screws (not included), mount the device onto a flat
surface such as a wall.

Wall Mounting

Quick Start
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DM-RMC-4KZ-100-C and is the answer not in the manual?

Questions and answers

Related Manuals for Crestron DM-RMC-4KZ-100-C

Summary of Contents for Crestron DM-RMC-4KZ-100-C

  • Page 1 (HDR10) video signals. Via a CATx cable, the DM-RMC-4KZ-100-C connects to a DigitalMedia™ switcher or transmitter or to an HDBaseT® The DM-RMC-4KZ-100-C can be mounted onto a flat surface or rack rail. source. Connection to a display device is provided by a single HDMI®...
  • Page 2 HDBaseT PoE PSE port. Wiring that connects to a PoDM or HDBaseT PoE port is designed for intrabuilding use only. PoDM, HDBaseT PoE, or the optional PW-2407WU power pack (sold separately) can be used to power the DM-RMC-4KZ-100-C.
  • Page 3 Quick Start DM-RMC-4KZ-100-C DigitalMedia 8G+® 4K60 4:4:4 HDR Receiver and Room Controller Connections, Left and Right Sides...
  • Page 4 IP address is configured by the switcher automatically. You do not Blue need to set the IP address. Blue/White If the DM-RMC-4KZ-100-C is connected directly to a DigitalMedia 8G+ Green transmitter (commonly referred to as a standalone configuration in Brown/White...
  • Page 5 Development Tools License Agreement. Crestron product operating system software is Color Meaning Indicator licensed to Crestron dealers, CSPs, and end-users under a separate End-User License Agreement. Both of these Agreements can be found on the Crestron website at Green An Ethernet link is established. www.crestron.com/legal/software_license_agreement. Flashing Data activity is occurring on the Ethernet The product warranty can be found at www.crestron.com/warranty.
