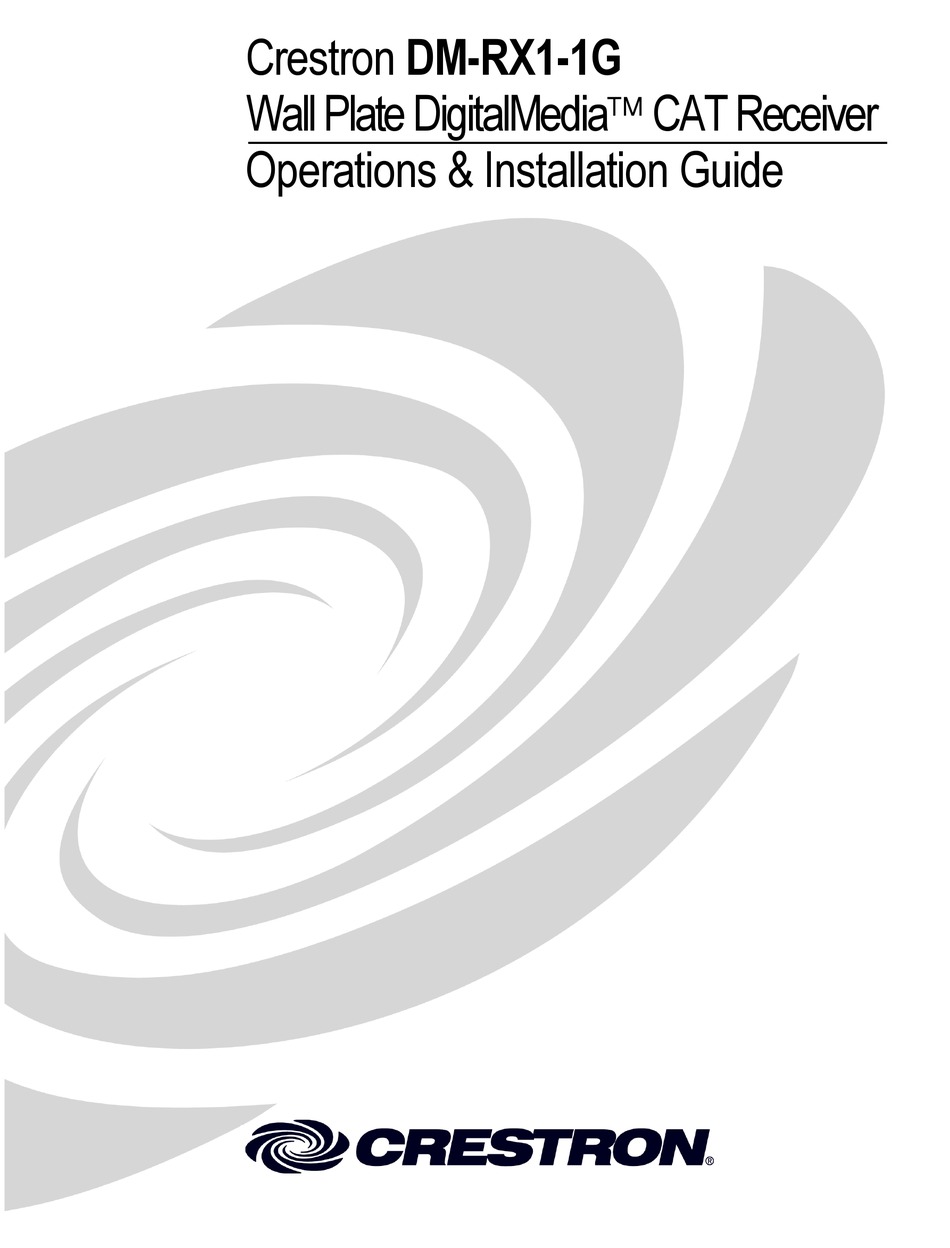

- Page 1 Crestron DM-RX1-1G Wall Plate DigitalMedia CAT Receiver Operations & Installation Guide...
-
Page 2: Regulatory Compliance
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada. This device includes an aggregation of separate independent works that are each generally copyrighted by Crestron Electronics, Inc., with all rights reserved. One of those independent works, Linux Bridge Project, is copyrighted under the GNU GENERAL PUBLIC LICENSE, Version2, reproduced in “GNU General Public License”... -
Page 3: Table Of Contents
Crestron DM-RX1-1G DigitalMedia™ CAT Receiver Contents Wall Plate DigitalMedia CAT Receiver: DM-RX1-1G Introduction ..........................1 Features and Functions ....................1 Applications......................... 3 Specifications ......................4 Physical Description....................8 Setup ............................13 Network Wiring......................13 Supplied Hardware ....................13 Installation ......................... 14 Hardware Hookup ..................... -
Page 5: Wall Plate Digitalmedia Cat Receiver: Dm-Rx1-1G
1. For DigitalMedia CAT wiring, use DM-CBL DigitalMedia Cable. Up to two DM Repeaters (Model DM-DR, sold separately) may be required. Refer to the Crestron DigitalMedia Design Guide (Doc. 4789) for complete wiring guidelines. It is available from the Crestron Web site (www.crestron.com/digitalmedia). - Page 6 Multimedia Display Interface A single HDMI digital AV output port is provided on the DM-RX1-1G, handling 1080p60 HDTV with HDCP and multi-channel HD lossless audio, all through a single connection. The HDMI output can also handle...
-
Page 7: Applications
Crestron DM-RX1-1G DigitalMedia™ CAT Receiver Applications The following diagram shows a DM-RX1-1G in a classroom application. DM-RX1-1G in a Classroom Application ® CAT Receiver: DM-RX1-1G • 3 Operations & Installation Guide – DOC. 6969B... -
Page 8: Specifications
DigitalMedia™ CAT Receiver Crestron DM-RX1-1G Specifications Specifications for the DM-RX1-1G are listed in the following table. DM-RX1-1G Specifications SPECIFICATION DETAILS Video Input Signal Types DM CAT (DigitalMedia over twisted-pair copper wire) Output Signal Types HDMI, DVI* Formats HDMI, DVI, HDCP content... - Page 9 1920 x 1080 @ 30 Hz (1080i30) Plus any other resolution allowed by HDMI up to 165 MHz pixel clock Output Resolutions Matched to input (Continued on following page) ® CAT Receiver: DM-RX1-1G • 5 Operations & Installation Guide – DOC. 6969B...
- Page 10 DigitalMedia™ CAT Receiver Crestron DM-RX1-1G DM-RX1-1G Specifications (Continued) SPECIFICATION DETAILS Audio Input Signal Types DM CAT Output Signal Types HDMI ® Formats Dolby Digital , Dolby Digital EX, ® Dolby Digital Plus, Dolby ® TrueHD, DTS , DTS-ES, DTS 96/24, DTS-HD High Res, DTS-HD Master Audio™, up to...
- Page 11 * HDMI requires an appropriate adapter or interface cable to accommodate a DVI signal. CBL-HD-DVI interface cable available separately. NOTE: Crestron software and any files on the Web site are for authorized Crestron dealers and Crestron Authorized Independent Programmers (CAIP) only. New users may be required to register to obtain access to certain areas of the site (including the FTP site).
-
Page 12: Physical Description

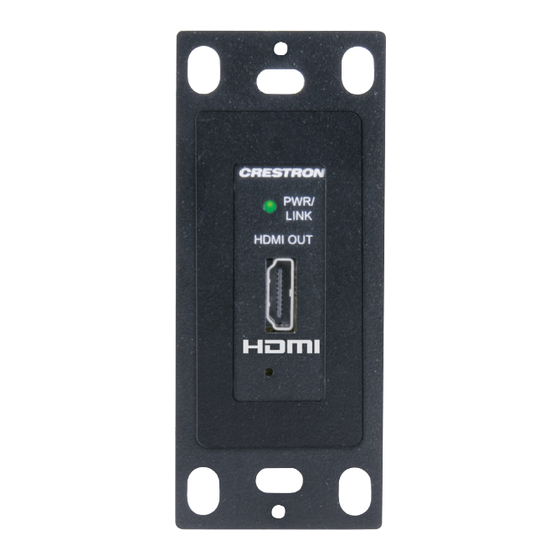

DigitalMedia™ CAT Receiver Crestron DM-RX1-1G Physical Description This section provides information on the connections, controls and indicators available on your DM-RX1-1G. DM-RX1-1G Physical View 8 • DM ® CAT Receiver: DM-RX1-1G Operations & Installation Guide – DOC. 6969B... - Page 13 Crestron DM-RX1-1G DigitalMedia™ CAT Receiver DM-RX1-1G Overall Dimensions (Front View) 1.72 in (44 mm) 4.12 in (105 mm) ® CAT Receiver: DM-RX1-1G • 9 Operations & Installation Guide – DOC. 6969B...
- Page 14 DigitalMedia™ CAT Receiver Crestron DM-RX1-1G DM-RX1-1G Overall Dimensions (Left and Right Views) 2.09 in (53 mm) 2.02 in (52 mm) 1.96 in 0.07 in (50 mm) (2 mm) 2.65 in (68 mm) 2.78 in (71 mm) 10 • DM ®...
- Page 15 GROUNDING WIRE (1) Flying lead, chassis ground connection 1. HDMI requires an appropriate adapter or interface cable to accommodate a DVI signal. CBL-HD-DVI interface cable sold separately. ® CAT Receiver: DM-RX1-1G • 11 Operations & Installation Guide – DOC. 6969B...
- Page 16 6. A grounding lead is provided for connection to earth ground (building steel). This ground connection is recommended to provide a common ground reference for signals provided to the DM-RX1-1G, and to reduce the incidence of possible damage to the unit from static discharge.
-
Page 17: Setup
Guide (Doc. 4789) for complete wiring guidelines. For more details, refer to “Check Network Wiring”, which starts on page 24. Supplied Hardware The hardware supplied with the DM-RX1-1G is listed in the following table. Supplied Hardware for the DM-RX1-1G DESCRIPTION... -
Page 18: Installation
• Two #06-32 x 3/4" oval head slotted screws (included) • Decorative style faceplate (not supplied) • Insert (included) The DM-RX1-1G can be installed in either a 1-gang electrical box or rack mounted. Installing in a An extra-deep box is recommended (2 1/2 inch (64 mm) deep minimum). - Page 19 Cut Spline To Here 6. Neatly wrap the twisted braid around the foil shield as shown in the following illustration. Only the silver side of foil shield is conductive. ® CAT Receiver: DM-RX1-1G • 15 Operations & Installation Guide – DOC. 6969B...
- Page 20 8. Using an adjustable wrench, clamp the prepared cable to the unit as shown in the following illustration. NOTE: Twisted braid and foil shield must be in full contact with inside of clamp. 16 • DM ® CAT Receiver: DM-RX1-1G Operations & Installation Guide – DOC. 6969B...
- Page 21 11. Using an adjustable wrench, clamp the prepared “M” cable to the unit so that the yellow jacket is secured by the clamp. NOTE: The clamp should fully cover the jacket of the yellow “M” cable. ® CAT Receiver: DM-RX1-1G • 17 Operations & Installation Guide – DOC. 6969B...
- Page 22 Insert the twisted pairs of the yellow, unshielded cable into the M terminal block and tighten each screw base. Refer to footnote 2 on page 12 for details. M Terminal Block 18 • DM ® CAT Receiver: DM-RX1-1G Operations & Installation Guide – DOC. 6969B...
- Page 23 15. Attach an appropriate decorative style faceplate (not supplied). 16. Remove the backing from the tape on the back of the included insert. Affix the insert plate into its proper opening in the faceplate. DM-RX1-1G in 1-Gang Box (Exploded View) Mounting Surface One-Gang Wall Box (Supplied Seperately)
- Page 24 DigitalMedia™ CAT Receiver Crestron DM-RX1-1G Rack The DM-RX1-1G can be mounted in a rack with other equipment using Mounting the two mounting holes on either corner of the unit. It is assumed the required cable has been installed and wiring has been verified.
- Page 25 Crestron DM-RX1-1G DigitalMedia™ CAT Receiver DM-RX1-1G Rack Mount (Exploded View) Rack Rail DM-RX1-1G (6503434 or 6504685) Insert (4510566 or 4512253) Rack Mount Screws (Not Supplied) ® CAT Receiver: DM-RX1-1G • 21 Operations & Installation Guide – DOC. 6969B...
-
Page 26: Hardware Hookup
Refer to “Network Wiring” on page 13 before attaching the DMNet cable. Apply power after all connections have been made. When making connections to the DM-RX1-1G, use Crestron power supplies for Crestron equipment. Hardware Connections for the DM-RX1-1G... -
Page 27: Problem Solving
Crestron DM-RX1-1G DigitalMedia™ CAT Receiver Problem Solving Troubleshooting The following table provides corrective action for possible trouble situations. If further assistance is required, please contact a Crestron customer service representative. DM-RX1-1G Troubleshooting TROUBLE POSSIBLE CORRECTIVE CAUSE(S) ACTION Device does not... -
Page 28: Check Network Wiring
To ensure optimum performance over the full range of your installation Right Wire topology, use Crestron Certified Wire only. Failure to do so may incur additional charges if support is required to identify performance deficiencies because of using improper wire. - Page 29 1080p60 Deep Color Not Supported NOTE: All Crestron certified DMNet wiring must consist of two twisted pairs. One twisted pair is the +24V conductor and the GND conductor and the other twisted pair is the A conductor and the B conductor.
-
Page 30: Reference Documents
Crestron at 1-888-CRESTRON [1-888-273-7876]. You can also log onto the online help section of the Crestron Web site (www.crestron.com/onlinehelp) to ask questions about Crestron products. First-time users will need to establish a user account to fully benefit from all available features. -
Page 31: Return And Warranty Policies
Purchasers should inquire of the dealer regarding the nature and extent of the dealer's warranty, if any. CRESTRON shall not be liable to honor the terms of this warranty if the product has been used in any application other than that for which it was intended or if it has been subjected to misuse, accidental damage, modification or improper installation procedures. -
Page 32: Gnu General Public License
License and to the absence of any warranty; and give any other recipients of the Program a copy of this License along with the Program. 28 • DM ® CAT Receiver: DM-RX1-1G Operations & Installation Guide – DOC. 6969B... - Page 33 5. You are not required to accept this License, since you have not signed it. However, nothing else grants you permission to modify or distribute the Program or its derivative works. These actions are prohibited by law if you do not accept this License. Therefore, by ® CAT Receiver: DM-RX1-1G • 29 Operations & Installation Guide – DOC. 6969B...
- Page 34 THIRD PARTIES OR A FAILURE OF THE PROGRAM TO OPERATE WITH ANY OTHER PROGRAMS), EVEN IF SUCH HOLDER OR OTHER PARTY HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. 30 • DM ® CAT Receiver: DM-RX1-1G Operations & Installation Guide – DOC. 6969B...
- Page 35 Crestron DM-RX1-1G DigitalMedia™ CAT Receiver This page is intentionally left blank. ® CAT Receiver: DM-RX1-1G • 31 Operations & Installation Guide – DOC. 6969B...
- Page 36 Crestron Electronics, Inc. Installation Guide – DOC. 6969B 15 Volvo Drive Rockleigh, NJ 07647 (2027251) Tel: 888.CRESTRON 12.10 Fax: 201.767.7576 Specifications subject to www.crestron.com change without notice.
