- Page 1 DM-RMC-4KZ-100-C: DigitalMedia 8G+® 4K60 4:4:4 HDR Receiver and Room Controller Supplemental Guide Crestron Electronics, Inc.
- Page 2 United States and/or other countries. Other trademarks, registered trademarks, and trade names may be used in this document to refer to either the entities claiming the marks and names or their products. Crestron disclaims any proprietary interest in the marks and names of others. Crestron is not responsible for errors in typography or photography.
-
Page 3: Table Of Contents
Contents Introduction ........................... 1 Model Comparison ........................2 Physical Description ........................5 Connection to a Third-Party HDBaseT Transmitter ............7 HDCP 2.2 Compliance......................... 8 Troubleshooting ........................... 9 Supplemental Guide – DOC. 8376A Contents • i... -
Page 5: Introduction
Receiver and Room Controller Introduction The Crestron® DM-RMC-4KZ-100-C is a DigitalMedia 8G+® receiver and room controller that supports full 4K60 4:4:4 and high dynamic range (HDR) video signals. Via a CATx cable, the DM-RMC-4KZ-100-C connects to a DigitalMedia™ switcher or transmitter or to an HDBaseT®... -
Page 6: Model Comparison
Model Comparison The following table provides a comparison between the DM-RMC-4KZ-100-C and other 4K DigitalMedia 8G+ receivers and room controllers. 4K DigitalMedia 8G+ Receivers and Room Controllers FEATURE DM-RMC-4KZ-100-C DM-RMC-4K-100-C-1G-B-T/W-T DM-RMC-4K-SCALER-C DM-RMC-4K-SCALER-C-DSP Form Factor Surface-Mount Box U.S. 1-Gang Surface-Mount Box Surface-Mount Box Input DM 8G+®... - Page 7 4K DigitalMedia 8G+ Receivers and Room Controllers (Continued) FEATURE DM-RMC-4KZ-100-C DM-RMC-4K-100-C-1G-B-T/W-T DM-RMC-4K-SCALER-C DM-RMC-4K-SCALER-C-DSP Audio Input Signal DM 8G+ and HDBaseT DM 8G+ and HDBaseT DM 8G+ and HDBaseT DM 8G+ and HDBaseT Types Output Signal HDMI HDMI HDMI, HDMI, Types Analog Stereo (Phoenix connector) Analog Stereo (Phoenix connector) Digital Input/...
- Page 8 2. CEC management between connected HDBaseT and HDMI devices is available via a control system. 3. Software support is available via the DM-MD8X8, DM-MD16X16, and DM-MD32X32 chassis. The Crestron XiO Cloud service is only available on a chassis that uses the DMC-CPU3 card.
-
Page 9: Physical Description

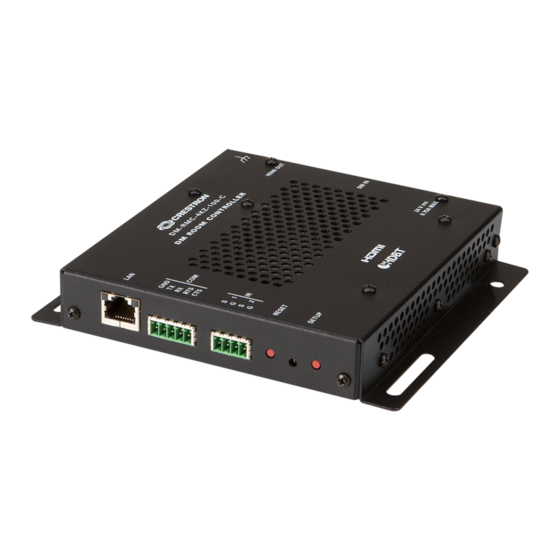

Physical Description The following illustration shows the connectors, controls, and indicators on the DM-RMC-4KZ-100-C. Connectors, Controls, and Indicators LAN: 8-pin RJ-45 female, shielded; 10BASE-T/100BASE-TX Ethernet port; Green LED indicates Ethernet link status; Amber LED indicates Ethernet activity NOTE: The LAN port can connect to an Ethernet switch only when the DM IN port is... - Page 10 PoDM PD (powered device) port (HDBaseT PoE compatible); Connects to the DM 8G+ output of a DM® switcher, transmitter, or other DM® device, or to an HDBaseT device via CAT5e, Crestron DM-CBL-8G, or Crestron DM-CBL-ULTRA cable; Green LED indicates that a DM or HDBaseT link is established;...
-
Page 11: Connection To A Third-Party Hdbaset Transmitter
Connection to a Third-Party HDBaseT Transmitter The DM-RMC-4KZ-100-C is compliant with the HDBaseT standard, enabling direct connection to other HDBaseT certified equipment. Via the DM 8G+ input, the DM-RMC-4KZ-100-C can be connected directly to a third-party HDBaseT compliant source without requiring a DigitalMedia transmitter. SIMPL Windows allows an HDBaseT transmitter to be added to the DM-RMC-4KZ-100-C. -
Page 12: Hdcp 2.2 Compliance
HDCP 2.2 Compliance The DM-RMC-4KZ-100-C is compliant with HDCP 2.2. HDCP 2.2, commonly referred to as HDCP 2, is the next generation of HDCP (High-Definition Content Protection). Note the following about HDCP 2: Compared to HDCP 1, HDCP 2 brings a higher level of cryptographic protection •... -
Page 13: Troubleshooting
NOTE: If, for any reason, the factory default setting of the DM-RMC-4KZ-100-C must be restored, do the following: From the Tools menu in the Crestron Toolbox software, select Text Console and enter the following command: restore y Supplemental Guide – DOC. 8376A... - Page 14 Crestron Electronics, Inc. Supplemental Guide – DOC. 8376A 15 Volvo Drive, Rockleigh, NJ 07647 (2052636) Tel: 888.CRESTRON 10.18 Fax: 201.767.7576 Specifications subject to www.crestron.com change without notice.
