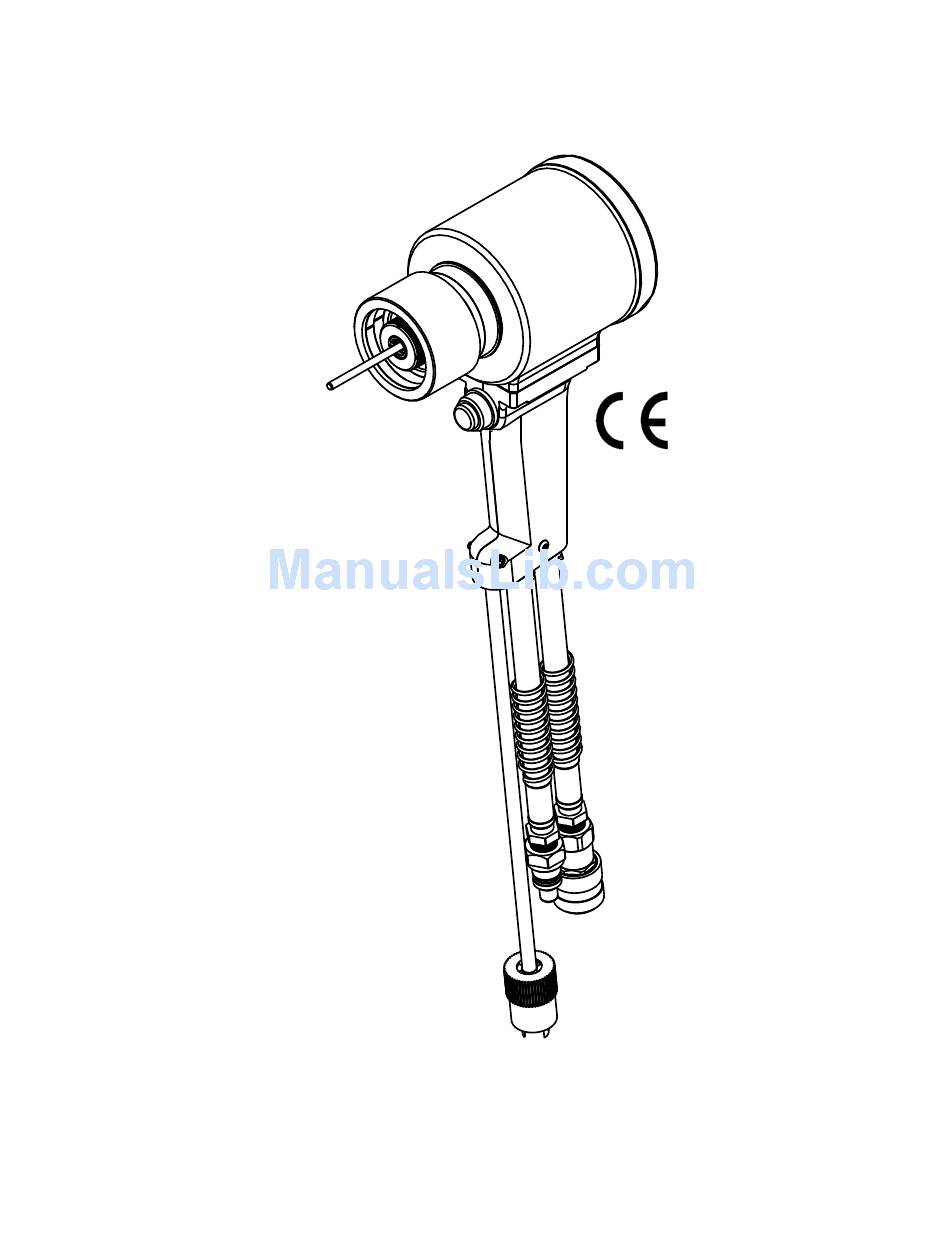

GB585/GB585A
INSTALLATION TOOL
GAGE BILT TOOLS ARE AVAILABLE WORLDWIDE
E-MAIL US FOR DISTRIBUTOR NEAR YOU.
GAGE BILT Inc.
GAGE BILT
44766 Centre Court
(586) 226-1500
Clinton Twp. MI 48038
(586) 226-1505 Fax
MADE IN U.S.A.
e-mail: solutions@gagebilt.com / www.gagebilt.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GB585 and is the answer not in the manual?

Questions and answers

Related Manuals for Gage Bilt GB585

Summary of Contents for Gage Bilt GB585

  • Page 1 GB585/GB585A INSTALLATION TOOL GAGE BILT TOOLS ARE AVAILABLE WORLDWIDE E-MAIL US FOR DISTRIBUTOR NEAR YOU. GAGE BILT Inc. GAGE BILT 44766 Centre Court (586) 226-1500 Clinton Twp. MI 48038 (586) 226-1505 Fax MADE IN U.S.A. e-mail: solutions@gagebilt.com / www.gagebilt.com...

  • Page 2: Specifications

    TABLE OF CONTENTS Description Page Warnings ..................................... 3 Principle of Operation and How to use the GB585/GB585A ....................4 Description, Maintenance and Hydraulic Thread Preparation ....................5 Parts Lists ....................................6-7 Troubleshooting and Overhaul ..............................8 Nose Assembly Selection Chart ............................... 9 EU Conformity and Warranty ..............................

  • Page 3: Safety Warnings

    Any repair should be done by qualified personnel trained on Gage Bilt WARNING procedures. Risk of crushing exists if nose assembly is not attached.

  • Page 4: Principle Of Operation

    #1. Set power supply to the recommended pressure, 5,700 psi (393.0 bar) for the pull and 2,400 psi (165.5 bar) for the return. #2. Connect hydraulic hose assy’s (505034) to supply and control cord assy (585034) to the power supply for GB585.

  • Page 5: Maintenance

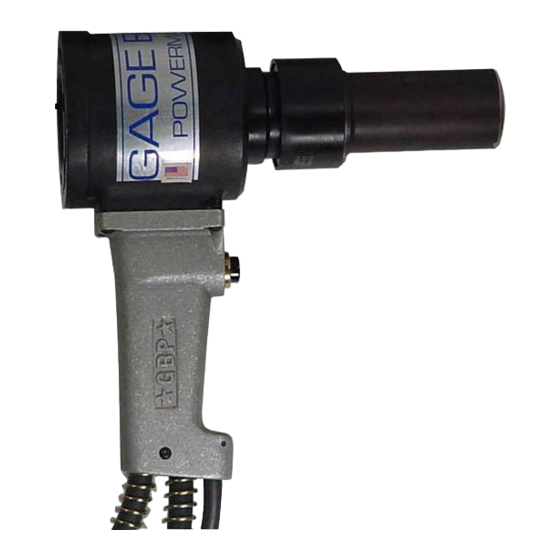

    DESCRIPTION The GB585 is a hydraulic installation tool capable of installing 5/8" and 3/4" Magna-Grip® or standard lockbolts. It weighs just un- der 20 lbs. (9.07 kg) and is our most powerful hand tool. It has a 1.600" (40.6 mm) rivet setting stroke and a rated pull load of 40,000 lbs (177.9 kN).
  • Page 6 GB585/GB585A PARTS LIST = APPLY REMOVABLE LOCTITE ® GAGE BILT P/N A-1006 = TORQUE TO 25 FT. LBS. USING EJECTOR GLAND WRENCH (750038) NOT SHOWN, SOLD SEPARATELY. GB585A GB585 REV. 1/15...
  • Page 7 GB585/GB585A PARTS LIST Ref. No. Part Num ber Description Qty. 762006 Ejector Gland Assy. (Inc. 2- 7) 750127 Wiper 762007 Ejector Gland 401080 Back-Up Ring 400779 O'Ring 401411 Quad Ring 585117 Washer Ejector 505022 Pintail Ejector 585123 Piston Assy (Inc. 10-12)

  • Page 8: Troubleshooting

    Reassembly sequence is opposite of disassembly. Be sure relative positions of o'rings and back-up rings are as shown in explod- ed view and part list. Relief valve on GB585 (585022) or GB585A (585056) must be installed with four flats towards the rear of the head cylinder.
  • Page 9 GB585/GB585A SELECTION CHART FASTENER DIA. NOSE ASSEMBLY LOCKBOLT 5/8" 20-585-41 HIGH TENSILE PULL TYPE 3/4" 24-585-46 C50L® 5/8" BOM20-585-41 BLIND OVERSIZE MANDREL 3/4" BOM24-585-46 5/8" HP20-585-41 HP8® 3/4" HP24-585-46 16mm HP20-585-41 MHP 10.9 *20mm HP20MM-585-46 C50L® AND HP8® ARE REGISTERED TRADEM ARKS OF ALCOA INC.

  • Page 10: Declaration Of Conformity

    GAGE BILT DECLARATION OF CONFORMITY MANUFACTURER: Gage Bilt Inc. 44766 Centre Ct. Clinton Twp. Michigan (586-226-1500) WE DECLARE THAT THE EQUIPMENT SPECIFIED HEREIN CONFORMS TO THE FOLLOWING DIRECTIVES AND STANDARDS Machinery Directive 2006/42/EC EN ISO 12100:2010 EN ISO 11148-1:2011 EU REPRESENTATIVE Edgar Hausmann GmbH Förster-Busch-Str.
