Configuration and Operation
8
Configuration and Operation
EN
EN
8.1
Controls
The inverter has a backlit LCD display as well as three status LEDs. The inverter is operated using 6 buttons.
1
2
3
4

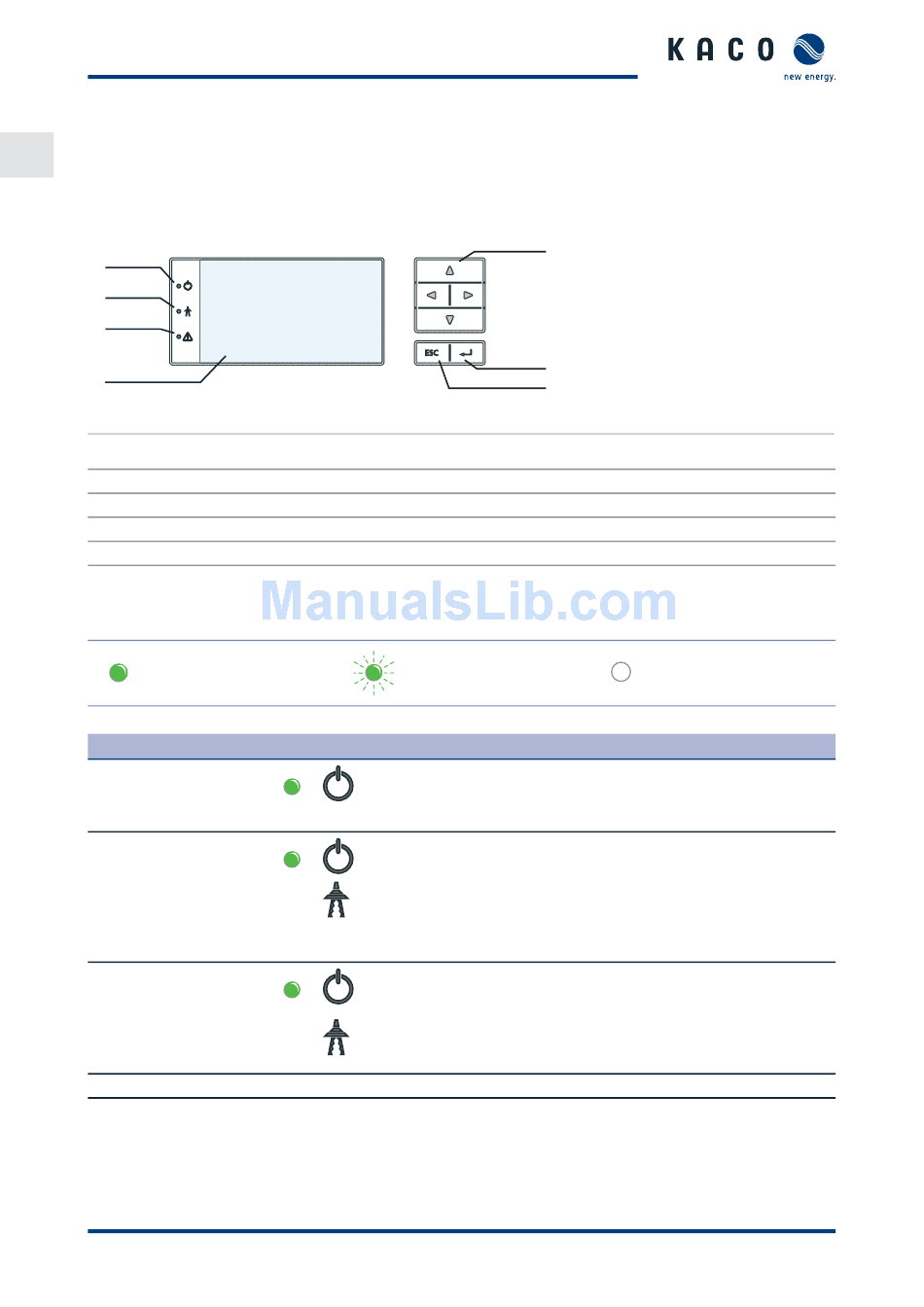

Figure 42: Control panel
Key
1
"Operating" LED
2
"Feed-in" LED
3
"Fault" LED
4
LCD
8.1.1
LED indicators
The 3 LEDs on the front of the inverter show the different operating states. The LEDs can display the following states:
LED illuminated
The LED indicators show the following operating status:
Operating status
Start
Feed-in start
Feed-in operation
* The waiting period ensures that all grid parameters are in the permissible ranges.
Page 32
LED flashing
LEDs
Display
Power fed into the grid
or measured values
Power fed into the grid
or measured values
5
6
7
5
4-way button
6
"Enter" key
7
"ESC" key
Description
The green "Operating" LED is illuminated
if an AC voltage is present,
(independently of the DC voltage).
The green "Operating" LED is lit.
The green "Feed-in" LED is illuminated
after the country-specific waiting period*.
The unit is ready to feed in, i.e. is on the
grid.
You can hear the grid relay switch on.
The green "Operating" LED is lit.
The green "Feed-in" LED is lit.
The "Feed-in" icon appears on the LC
display.
The unit feeds into the grid.
Operating instructions KACO blueplanet 50.0 TL3 S/Basic/M/XL
