SciCan Hydrim C51w Installation Instructions & Owner's Manual

Hydrim
Tools and supplies required
to install the Hydrim:
• Slot screwdriver • Channellocks
Ensure that Hydrim Cleaning Solution (instrument wash
chemical) is available. All other supplies are included
with the Hydrim unit.

Specifications

North America
Voltage: 208 - 240 V
Frequency: 60 Hz
Rated load: 2 kW
Circuit breaker: 10 A per phase
Dimensions / Mass:
Height: 475 mm / 18.75"
Width: 600 mm / 23.75"
Depth: 460 mm / 18.25"
Depth with
door open: 780 mm / 30.75"
Weight: 34 kg / 75 lbs
Running Noise: 60 dBA
Utility Hook-ups
Hose / Length / Max. Distance
Cord Diameter Distance from
Hot inlet 1.9 m / 6.2 ft.
2 cm / 3/4"
Cold inlet 1.9 m / 6.2 ft.
2 cm / 3/4"
Drain 1.5 m / 5 ft.
2 cm / 3/4"
Electrical 1.8 m / 6 ft.
AWG 18-3
* unit will function with water pressure down to 0.5 bar / 7 psi.
drain
hose
cold water
inlet hose
® C51w

Installation Instructions

Europe
220 - 240 V
50 Hz
2 kW
10 A per phase
Water
Pressure
inlet / drain (optimal)*
1.5 m / 5 ft. 1-10 bar /
14.5-145 psi
1.5 m / 5 ft. 1-10 bar /
14.5-145 psi
— —
— —
inlet
valves
hot water inlet hose

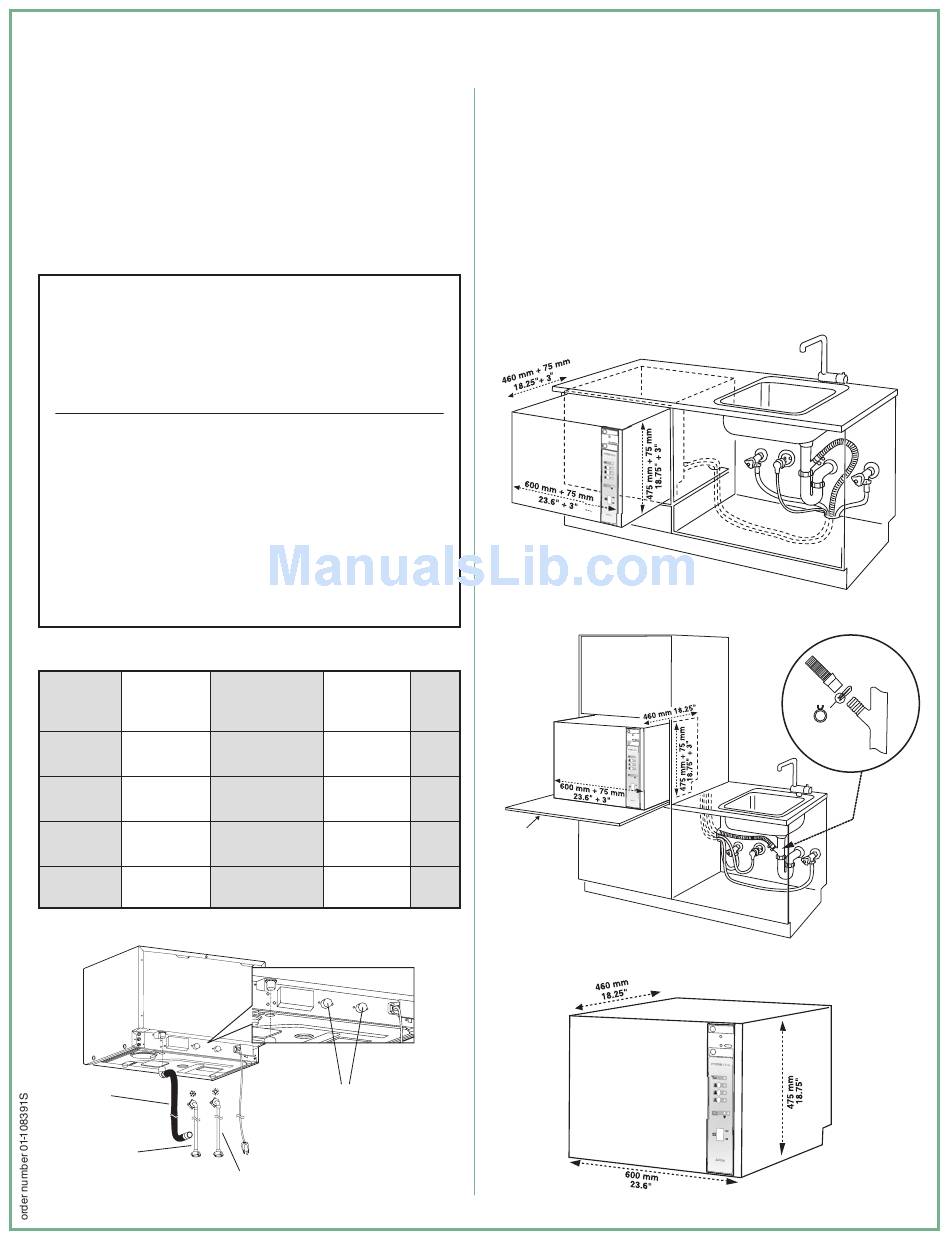

Proposed Installation Configurations:
If the Hydrim is installed in a Sterilization Center, the
manufacturer of the Sterilization Center should allow a 3"
(75 mm) space at the top and sides of the Hydrim. This will
facilitate installation, leveling, and service access to
the Hydrim.
Do not move the Hydrim into place by maneuvering the
open wash chamber door. This may cause to door to
become misaligned and leak.
Installation Option 1. Cabinet / Steri Center
Installation Option 2. Sliding Shelf
Shut
-off
valve
Yes
Yes
— Sliding Shelf
—
Installation Option 3. Counter Top
