SciCan HYDRIM C51w Operator's Manual
High speed instrument washer
Hide thumbs
Also See for HYDRIM C51w:
- Operator's manual (59 pages) ,
- Service manual (33 pages) ,
- Quick reference manual (2 pages)
Related Manuals for SciCan HYDRIM C51w
Summary of Contents for SciCan HYDRIM C51w

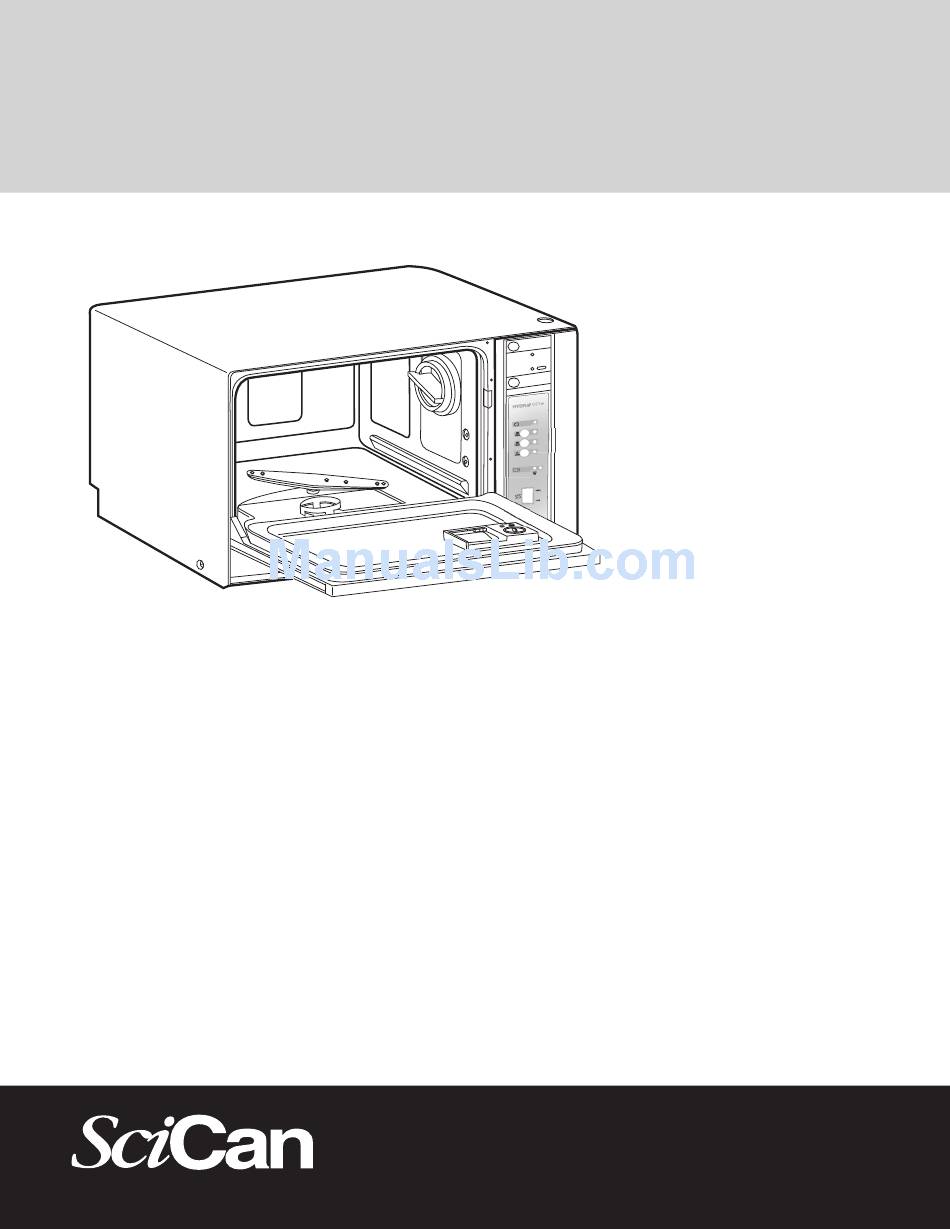

- Page 1 HYDR IM C51w • Operator’s Manual • Manuel de l’utilisateur • Manual del Operador • Manual de Operação Hydrim is a trademark of SciCan HYDR IM C51w Operator’s Manual 95-107144 Rev 4.0. www.scican.com...
-
Page 2: Table Of Contents
7. Troubleshooting ....18 6.3 Nettoyage du Hydrim C51w 8. Hydrim C51w Specifications ..20 6.4 Entretien des filtres et des bras de lavage 7. -
Page 3: Introduction
Contents of this manual are subject to change without notice to reflect changes and improvements to the Hydrim product. The Hydrim C51w should only be installed and serviced by a qualified contractor as it is an Installation Category 2 device. Before connecting the unit, the installer should check that the voltage and frequency of the electrical supply correspond with the details in the installation instructions. -
Page 4: Important Information
A potential hazard Cleaning solution to the operator. indicator bottle A situation which Cleaning solution may lead to a Salt level indicator mechanical failure. Heavy Duty Important information wash Rinse and hold Regular wash HYDRIM C51w Operator’s Manual Page 4... -
Page 5: Disclaimers
3. Disclaimers Do not permit any person other than authorized personnel to supply parts for, service or maintain your Hydrim C51w. SciCan shall not be liable for incidental, special or consequential damages caused by any maintenance or services performed on the... -
Page 6: Installation
This may cause to door to become misaligned and leak. The Hydrim C51w Instrument Washer should only be installed and serviced by a qualified contractor as it is an Installation Category 2 device. The contractor should be experienced in installing equipment that requires electrical hook-up as well as plumbing. -
Page 7: Connecting To The Water Intake
The hot water intake valve is located on the bottom right of the back of the unit The Hydrim C51w is designed for cold and hot water connection in view of its technical application. The intake hoses are 1.9 m / 6.2 ft. long with 2 cm / "... -
Page 8: Installation Tips
1.8 m / 6 ft long. The Hydrim C51w is heavy (34 kg / 75 lbs). Seek assistance when lifting and installing the unit. Level the unit using the adjustable feet underneath the unit. Use the bubble level indicator on the top right hand side of the unit to verify that it is properly leveled. -
Page 9: Instructions For Use
Figure 4 5.1 Instrument Reprocessing Recommendations When used correctly, the Hydrim C51w is effective for the removal of debris on instruments that may result in the insulation of microorganisms during a terminal sterilization. Prior to inserting your instruments into the Hydrim, consult the manufacturer’s reprocessing instructions. -
Page 10: Scican
When processing small objects in the Hydrim (less than 6 mm x 25.4 mm / " x 1") use the fine mesh basket with lid (SciCan basket part number 01-103636S). Failure to do so will result in small objects passing through the filters. This can jam the pump and cause a unit failure. -
Page 11: Cycle Description Chart
Instruments with concave surfaces or cavities should be placed so that water can drain freely. The Hydrim C51w wash trolley can be configured in a number of different ways to accommodate a wide range of instruments. On the trolley you can insert open baskets, SysTM or IMS cassettes (maximum cassette size: 303.5 mm x 386.25 mm or 11"... -
Page 12: Scican
180 mm x 80 mm x 40 mm (7" x 3.15" x 1.6") Large basket 01-108210 350 mm x 368 mm x 64 mm (13.75" x 14.5" x 2.5") 3-cassette rack 01-107243 — 1-cassette rack 0-107242 — Cannula post 01-107244 — HYDRIM C51w Operator’s Manual Page 12... -
Page 13: The Canula Post
4. Visually inspect the wash arms to see if there is material clogging the holes. 5. Ensure that the coarse filter screen and fine filter screens have been cleaned and are in place. NOTE: For explanations regarding filter and wash arm maintenance, see section 6.4. HYDRIM C51w Operator’s Manual Page 13... -
Page 14: Unloading Instruments
Inspect the instruments coming out of the washer for visible debris. The Hydrim C51w does NOT have a drying cycle. For best drying results, at the end of each cycle leave the washer door ajar to allow water to evaporate. The power switch must be OFF in order to open the door. -
Page 15: Hydrim C51W Cleaning Solution
6. Maintenance 6.2 Water Softener and Rinse Aid Hydrim C51w Cleaning Solution contains sufficient properties to minimize water spots, residual soap, scale, and calcium build-up. If you are in an area where the water hardness is higher than normal, water softening salts and rinse aid may improve the cleaning results. -
Page 16: Using Rinse Aid
230 ml / 8 U.S. fl. oz. refill (#80Z473) or a 1 L / 34 U.S. fl. oz. refill (#320Z473). STAT-DRI is available from your dealer or you can contact SciCan directly for order information. -
Page 17: Cleaning The Hydrim C51W
6. Maintenance cont’d. 6.3 Cleaning the Hydrim C51w To clean all outside surfaces, use a soft cloth moistened with soap and water only. Do not use harsh cleaning chemicals or disinfectants. 6.4 Filter and Wash Arm Maintenance Filter Maintenance: Inspect the coarse and fine filters daily for debris and clean if necessary. -
Page 18: Troubleshooting
Strange rattling noises are • Contact your local SciCan dealer. heard while the unit is in use. • The water is not hot. Contact your local SciCan dealer. Wash cycles are taking too long to complete. • Check for kink in tubing. - Page 19 • Do not mix carbon steel with stainless steel instruments. • Open door slightly at the end of the cycle. NOTE: Fuses should NOT be replaced by the operator. Call a certified service technician for assistance. HYDRIM C51w Operator’s Manual Page 19...
-
Page 20: Hydrim C51W Specifications
8. HYDRIM C51w Specifications Dimensions / mass: Height: 475 mm / 18.75" Width: 600 mm / 23.6" Depth: 460 mm / 18.25" Depth with door open: 780 mm / 30.7" Weight: 34 kg / 75 lbs Running Noise: 60 dBA Hot water connection: 70˚C max / 158˚F...
