Chapter 6 FTE-7000A Description
6.1 OTDR Physical Package/Description
Instrument Enclosure
The ODM FTE-7000A is packaged in a rugged housing which is further protected with a rubberized
boot. Although the front panel is weather resistant, care must be taken to avoid liquids and contami-
nants around the fragile optical and electrical connectors, and the glass display. Use a mild cleaning
agent and soft damp cloth to clean up the panels and the outside case. See the maintenance sec-
tion to clean the optical connector. NEVER open the instrument for cleaning. Return to the factory for
servicing if necessary.

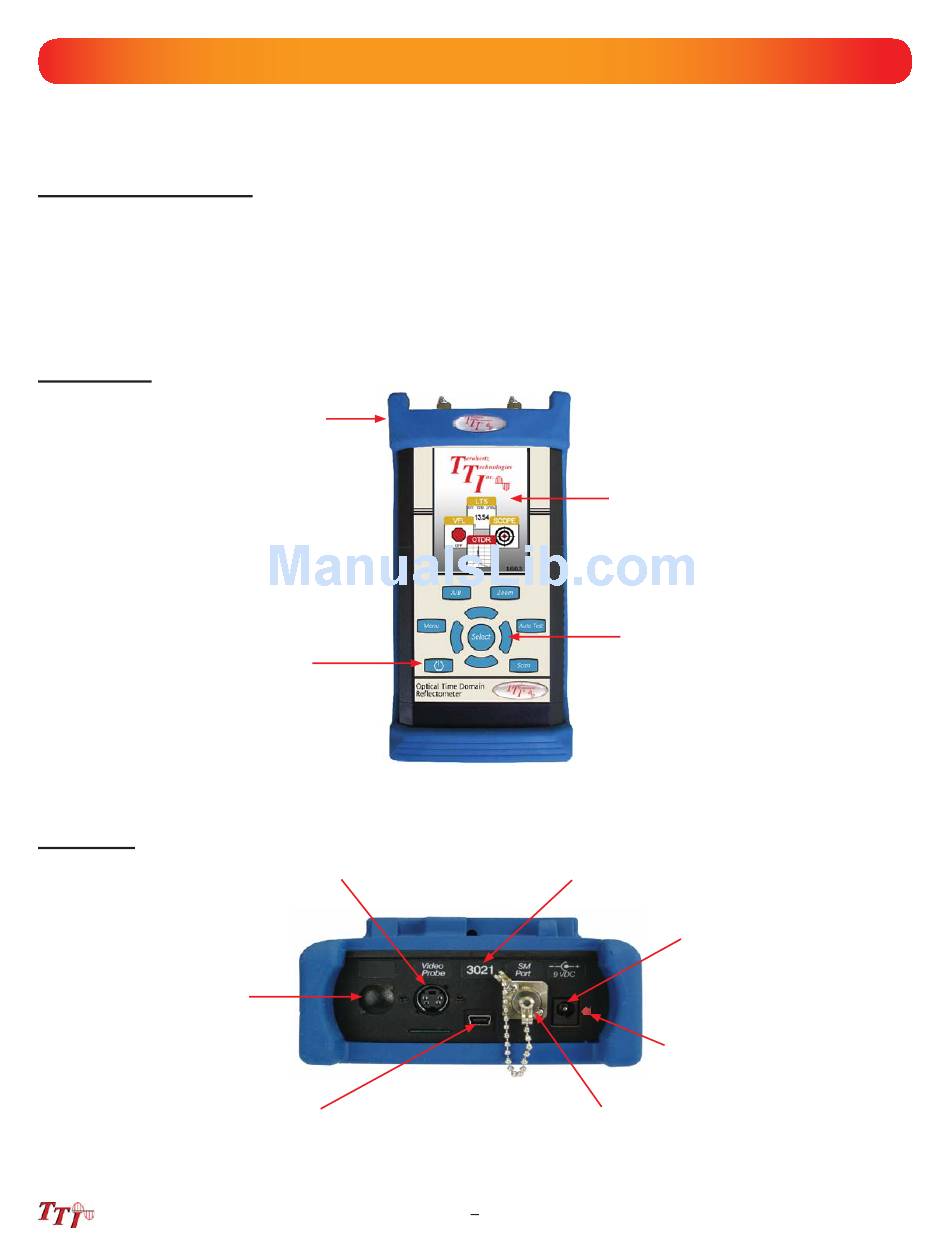

Front Panel
Protective Rubber Boot
Color Touch Screen
Key Pad
Power Button
Fig 6.1
Top panel
Video Probe Port
Unit Serial Number
Power Jack
Position of Second
Optical Port for Quad
Wavelength OTDRs
Battery Charge
Indicator
OTDR Port
USB Port
Fig 6.2
8
FTE-7000A User's Guide Rev A 5/2014
