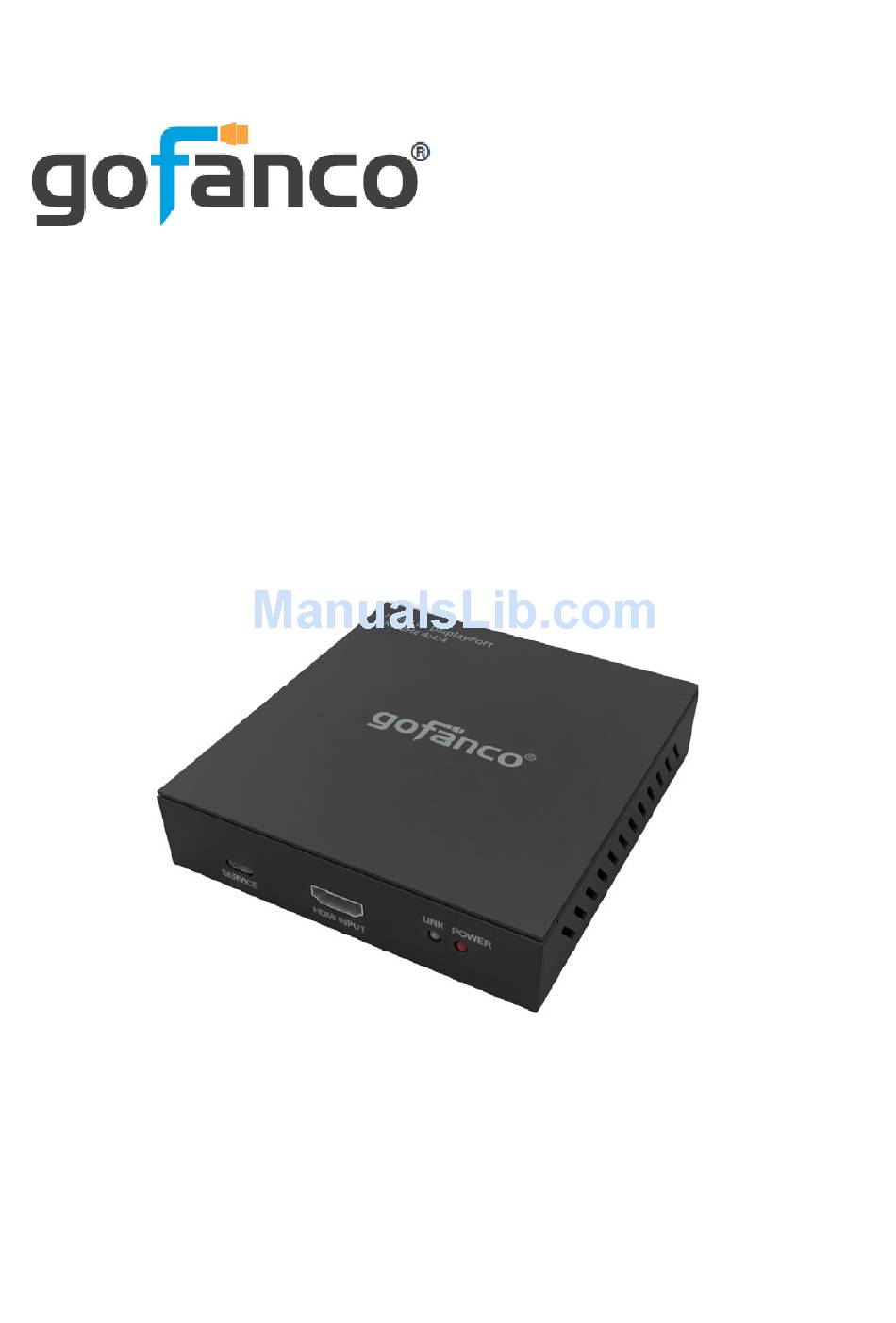

- Page 1 Prophecy HDMI 2.0 to 2x DP 1.2 Converter User's Guide P/N: HDMI2DP-2P G4-0048A...
- Page 2 Thank you for purchasing from gofanco. Our products aim to meet all your connectivity needs wherever you go. For optimum performance and safety, please read the instructions carefully and keep this User’s Guide for future reference. If you need more information about our products, please visit www.gofanco.com.
- Page 3 • Shut off power and make sure environment is safe before installation • Do not plug the HDMI cables and DisplayPort cables in/out when the device is in use to avoid cable damage. • Use the included DC12V power adapter only.
-
Page 4: Package Contents
Package Contents • Prophecy HDMI 2.0 to 2x DP 1.2a Converter • Power adapter (12VDC) • User's Guide Installation Requirements • HDMI source device (computer, Blu-ray/ DVD player, PS4, Xbox, etc.) • DisplayPort display device(s) (Monitor, HDTV, projector, etc.) • DisplayPort and HDMI cables Specifications Item... -
Page 5: Product Layout
Product Layout Link Power HDMI Input Micro USB Figure 1: Front Panel Power Jack DisplayPort Outputs Figure 2: Back Panel Item Description Micro USB Firmware update HDMI Input HDMI source connection Off: Power Saving Mode Link LED Blinking: Devices waiting to sync On: Device sync successful Power LED On when power up... -
Page 6: Hardware Installation
Hardware Installation Power off all devices including your HDMI source and DisplayPort display(s). Connect your HDMI source device to the HDMI Input connector with an HDMI cable (HDMI cable not included). Connect your DisplayPort display(s) to the DisplayPort output(s) with DisplayPort cable(s) (DisplayPort cable not included). - Page 7 Disclaimer The product name and brand name may be registered trademarks of related manufacturers. TM and ® may be omitted on the user’s guide. The pictures on the user’s guide are just for reference, and there may be some slight differences with the actual products.
- Page 8 Thank you for choosing gofanco www.gofanco.com...
