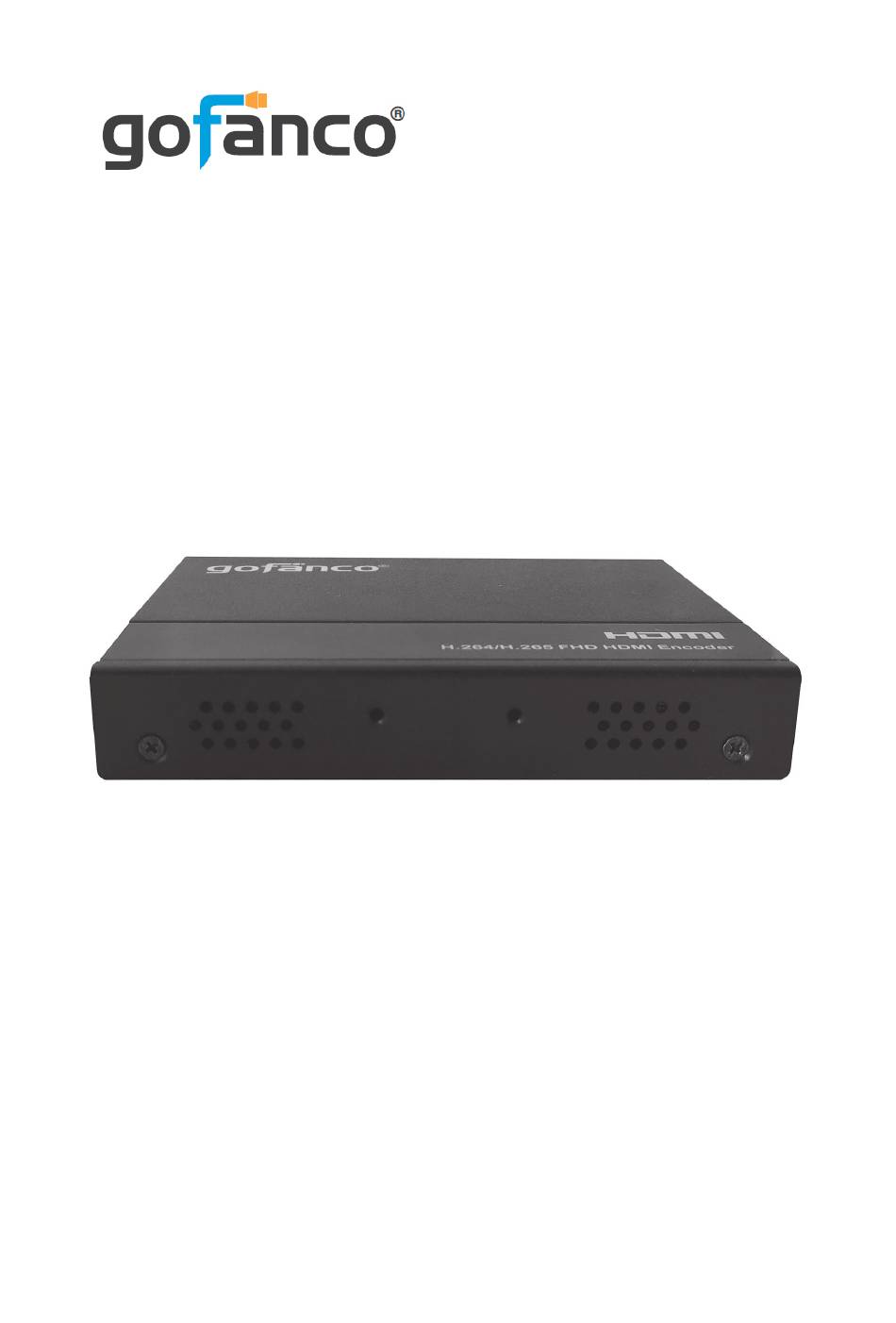

- Page 1 HDMI IPTV Encoder User's Guide P/N: HDIPTV265 G4-0122A...
- Page 2 Thank you for purchasing from gofanco. Our products aim to meet all your connectivity needs wherever you go. For optimum performance and safety, please read the instructions carefully and keep this User’s Guide for future reference. If you need more information about our products, please visit www.gofanco.com.
- Page 3 Package Contents • HDMI IPTV Encoder • Power adapter (12VDC/ 1A) • Phoenix plug for RS232 cable termination (x1) • Mounting accessories • User's guide Introduction A 1080p IP encoder allows you to broadcast or live stream HDMI audio/video over TCP/IP (Internet/LAN). Features •...
- Page 4 Product Layout Figure 1: Layout Audio Embedding Port: Connect your audio output device for audio embedding Analog Audio Out: Connects to speakers or headphones HDMI In LED: On when HDMI source device is detected HDMI In: Connects to your HDMI source device HDMI Out LED: On when HDMI display is detected HDMI Out: Connects to your HDMI display Reset: Press and hold down for 3 seconds to reset...
- Page 5 Hardware Installation Power off all devices including your HDMI sources and HDMI displays. Connect your HDMI source device to the Encoder's HDMI In connector with an HDMI cable (HDMI cable not included). Connect your HDMI display to the Encoder's HDMI Out connector with an HDMI cable (HDMI cable not included).
-
Page 6: Connection Diagram
Connection Diagram Figure 2: Connection Diagram... - Page 7 TCP/IP Control The HDMI IPTV Encoder can be controlled by web GUI via TCP/IP port. Connect your PC to the Encoder's RJ45 connector to configure it. Important note: After the initial configuration, the encoder needs to be connected to the Internet. Disconnect the Encoder from the configuration PC, then connect it to an Internet modem/router via the RJ45 connector.
- Page 8 Click Properties. Select Use the following IP Address, and then enter the IP address. Note: You can use any IP address in the range: 192.168.1.2 to 192.168.1.254 (excluding 192.168.1.168). Click OK to save the changes. Click Close to exit.
- Page 9 Web GUI Control Connect your PC to the HDMI IPTV Encoder's RJ45 port. Open the GUI by typing in 192.168.1.168 into your browser and the login interface, as shown below, will open. Username: admin Password: admin Type in the user name and password and click Login to enter the GUI.
- Page 10 Status • Displays the encoder's current setup: Status, Network, Main Stream, Sub Stream, Audio Stream Encoder Main Stream...
- Page 11 Sub Stream Video Settings Audio Setting Audio Input Configures HDMI Audio Input and Analog Audio Input settings. When HDMI Audio Input and Analog Audio Input are enabled simultaneously, the audio will stream to both outputs at the same time. Volume Range: 0~256...
- Page 12 Audio Coding Audio support: AAC, AAC+, and AAC++ (AC3/ • MP2/MP3) Sampling rate: 44.1/48kHz • Bitrate: 128 (default) • RTSP audio stream: Enable audio transfer, or modify • audio streaming transfer address Audio Output Sets the parameters for the HDMI audio loop-out and Analog audio loop-out Note: Make sure Foreground Alpha is set to 1 or more for easier reading...
- Page 13 System • DHCP: Enabled by default • IP: Can only be modified when DHCP is disabled. The factory default IP address is 192.168.1.168 • Netmask: The factory default is 255.255.255.0 • Mac address: Is factory fixed; modification is supported, however the factory fixed address is restored whenever the encoder is reset Port Settings •...
- Page 14 Note: RS232 passthrough is meant to be used within the same network and isn't accessible over the Internet. RS232 Software • Download: Download the control software from www.gofanco.com/downloads. • Installation: Copy the control software files and paste them to the hard drive of your PC, then run Netassist.exe.
- Page 15 Encoder to Encoder To distinguise between source and target encoder, type in the IP address of the source encoder into the Source Port box, then type in the IP of the target encoder into the Target Port box.
- Page 16 Live Streaming Configurations Go to the live streaming page. Find the Live Stream URL and copy it. Open the web browser of your control PC, and type in 192.168.1.168, login to open the Encoder's Web GUI. At the Encoder tab, find the RTMP Push URL box and replace what is in the box with the Live Stream URL copied from YouTube page in step 2.
- Page 17 Input Resolution...
- Page 18 Output Resolution...
-
Page 19: Specifications
Specifications... - Page 20 The pictures on the user's guide are just for reference, and there may be some slight differences with the acutal products. We reserve the rights to make changes without prior notice to a product or system described herein to improve reliability, function, or design. Thank you for choosing gofanco www.gofanco.com...
