gofanco prophecy PRO-VideoWall User Manual

4k 1x4 video wall processor
Hide thumbs
Table of Contents

Advertisement

Quick Links

®
PRO-VideoWall
4K 1x4 Video Wall Processor
User's Guide
Made in Taiwan

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the prophecy PRO-VideoWall and is the answer not in the manual?

Questions and answers

Related Manuals for gofanco prophecy PRO-VideoWall

Summary of Contents for gofanco prophecy PRO-VideoWall

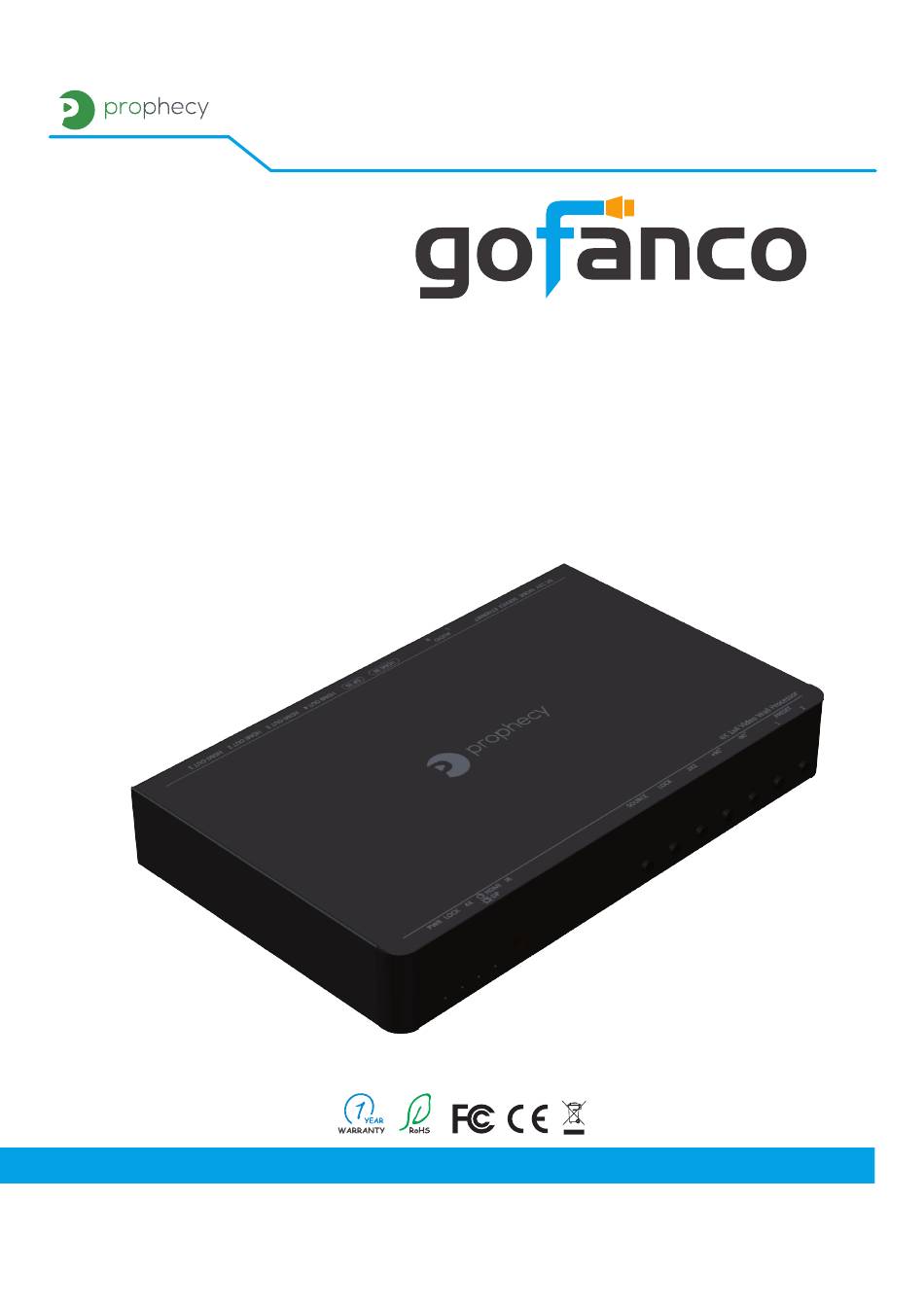

  • Page 1 ® PRO-VideoWall 4K 1x4 Video Wall Processor User‘s Guide Made in Taiwan...
  • Page 2 ® PRO-VideoWall Congratulations for owning a gofanco product. Our products aim to meet all your connectivity needs wherever you go. Have fun with our products! Please read this manual carefully before first use. If you need more information about our products, please visit www.gofanco.com.

  • Page 3: Table Of Contents

    ® PRO-VideoWall Table of Contents 1. Safety and Notice ..............2.

  • Page 4: Introduction

    ® PRO-VideoWall 2. Introduction The PRO-VideoWall 4K 1x4 Video Wall Processor is a powerful, cost effective, and fully real time data/video processor for multiple flat panel displays or pro- jectors. Virtually any setups for the display layout can be possible by the control software.

  • Page 5: Package Contents

    ® PRO-VideoWall 4. Package Contents • 1x PRO-VideoWall • 1x Installation software CD • 1x 1U rack-mounting ear set • 1x IR Remote control (15 keys) • 1x 12V power supply • 1x User Manual 5. Specifications Item Description Technical Role of usage Video Wall Processor HDCP compliance Input –...

  • Page 6: Panel Description

    ® PRO-VideoWall 6. Panel Description Front Panel 1. LED indicator: PWR – Power indicator LED LOCK – When device status is locked, it will shine 4K – If source resolution is 4K, the LED indicator will shine Source – When source from HDMI, the LED indicator will shine Source from DisplayPort, the LED indicator will blink 2.

  • Page 7: Connection Diagram

    ® PRO-VideoWall 7. Connection Diagram 8. Hardware Installation PRO-VideoWall as master 1. Connect the source(s) to HDMI / DisplayPort Input(s) of the PRO-VideoWall. 2. Connect all displays to HDMI Outputs of the PRO-VideoWall. 3. Connect the +12V DC power supply to the PRO-VideoWall.

  • Page 8: Supported Resolution

    ® PRO-VideoWall 9. Supported Resolution Input resolution Output resolution 640x480@60Hz 720x480@60Hz 720x576@60Hz 720x480@60Hz 800x600@60Hz 720x576@50Hz 1024x768@60Hz 1280x720@60Hz 1280x720@60Hz 1920x1080@30Hz 1280x768@60Hz 1920x1080@60Hz 1280x960@60Hz 4K2K@30Hz 1280x1024@60Hz 4K2K@60Hz (4:2:2 8bits) 1366x768@60Hz 1440x900@60Hz 4K2K@60Hz (4:4:4 8bits) 1680x1050@60Hz 1920x1080@60Hz 1920x1200@60Hz 1600x1200@60Hz...

  • Page 9: Operation Approach

    ® PRO-VideoWall 10. Operation Approach Method A: IR Remote Control Button Function Display device status (IN/OUT Resoluti- INFO on, EDID, Layout) Turn off the stereo audio output MUTE Power ON/OFF the video wall processor POWER Fast switch to VW1x1 (Full Screen) Source setting (HDMI or DisplayPort) SOURCE Fast switch to VW3x1 (+90°)
  • Page 10 ® PRO-VideoWall Method B: Software Operation System Requirements and Precautions 1. Whenever powering off PRO-VideoWall, please stay unpowered for at least 5 to 10 seconds to allow power capacitors to discharge. 2. The PRO-VideoWall provides software control program which runs under Mi- crosoft Windows 7, 8.1, 10 through the interface of USB virtual com control.
  • Page 11 ® PRO-VideoWall Control Interface 1. Connection Status: Show the connect information and status. If you use USB control Mode to con- nect device, the graph is . For IP control, the graph of Ethernet is *Quick Selection function is not available when the input re- 2.
  • Page 12 ® PRO-VideoWall Output Selection and Resolution: 1. Step 1: check input resolution and choose output resolution Set the output resolution. You can choose the design display icon to select the output port and setup resolution. When setting the different resoluti- on, the coordinate of output will also be changed.
  • Page 13 ® PRO-VideoWall 3. Step 2-1: quick selection If you choose the Quick Selection mode in step 2, this window will automa- tically pop up. In this mode, you can select default screen split and rotate screen (rotate screen only at 1080p resolution). 3x1: This mode will divide the screen into 3 parts and rotate the figure.
  • Page 14 ® PRO-VideoWall 5. Step 2-3: custom define In Custom define mode, you can define how to cut in both directions and the part you want to show on output TV. If you want to understand or estimate which part you may select, you can select the Grid button to show grid on the graph.
  • Page 15 ® PRO-VideoWall 3. EDID (Extended Display Identification Data) 1. Learn EDID from the default Select Default EDID (1-5 default EDID). Click button to learn default EDID. 2. Learn EDID from Display Select the Output. Click button to learn display EDID. 3.
  • Page 16 ® PRO-VideoWall 4. Advanced Setting 1. Machine Name You can set up your machine name in here. Please take a closer look at the length of string (Max Length: 8). 2. Change Graph You can change the default graph (splash screen) on this machine. Click button to select the graph.
  • Page 17 ® PRO-VideoWall 5. 4K2K Setting When input is 4K2K@60Hz Resolution, the output display will be forced to 2x2 layout (other layout cannot set) and only can set up the output position. We also provide 8 preset spaces to save the frequently used scenarios into the device.
  • Page 18 ® PRO-VideoWall 8. Info Read the software and firmware version. 9. Refresh This function not only can refresh the information of setting but also can reconnect this device. You can click button to update the control connection. A “ReConnectForm” window will pop up for you to select the approach to connect this device.
  • Page 19 ® PRO-VideoWall Method D: Cloud Control (IntriCloud) through Ethernet Port Create Account The first time to use the IntriCloud service, please create a new account. 1. Access IntriCloud (http://www.intri.cloud) and click “Create new account”. 2. The Registration page will pop up and please fill in your email and password information to create your private account.
  • Page 20 ® PRO-VideoWall Add Device to IntriCloud 1. Firstly, please make sure the device is connected to the Ethernet. Then please execute the software with device to get the association code (Note: the status of software is connected). 2. Access IntriCloud (http://www.intri.cloud), and then log in your account on the right top corner.
  • Page 21 ® PRO-VideoWall 3. Enter the Installer Email for online support in the future, and the Association Code for pairing with your device. 4. After adding the device, the list of device related to your account will show on the right top corner. You can click the button to switch device for control.

  • Page 22: Edid Learning

    ® PRO-VideoWall 11. EDID Learning The EDID learning function is only necessary whenever you encounter any dis- play on the HDMI output port that cannot play audio and video properly. Because the HDMI sources and displays may have various level of capability in playing audio and video, the general principle is that the source will output the lowest standards in terms of audio format and video resolutions to be commonly accep- table among all HDMI displays.
  • Page 23 ® PRO-VideoWall 12. Limited Warranty The SELLER warrants the PRO-VideoWall 4K 1x4 Video Wall Processor is free from defects in the material and workmanship for 1 year from the date of purchase from the SELLER or an authorized dealer. Should this product fail to be in good working order within 1 year warranty period, The SELLER, at its option, repair or replace the unit, provided that the unit has not been subjected to accident, disaster, abu- se or any unauthorized modifications including static discharge and power surge.
  • Page 24 ® Thank you for choosing gofanco www.gofanco.com Sep, 2018 Ver. A Copyright © 2018 by gofanco, LLC. All rights reserved.
