- Page 1 ® PRO-4Ksplit4P 4K HDR 1x4 splitter User‘s Guide Made in Taiwan...
- Page 2 ® PRO-4Ksplit4P Congratulations for owning a gofanco product. Our products aim to meet all your connectivity needs wherever you go. Have fun with our products! Please read this manual carefully before first use. If you need more information about our products, please visit www.gofanco.com.
- Page 3 ® PRO-4Ksplit4P 1. Introduction The PRO-4Ksplit4P 1x4 HDMI 2.0a Splitter with Built-in & User Adjustable EDID Management provides the most cost effective and advanced HDMI splitter solution on the mar- ket, by which the high definition video and high quality au- dio can be transmitted to 4 different locations without lo- sing quality. PRO-4Ksplit4P supports HDR and the true 4K2K video! With built-in USB firmware update mechanism, the compa- tibility among countless HDMI sources and receivers can be further guaranteed. With the upmost HDR/4K2K@60 4:4:4 8bits and high definition audio support, PRO-4Ksplit4P is suitable for high quality HDMI broadcasting, digital signage and education applications! 2. Features • HDMI 2.0a compliant • Supports 4K2K@60 4:4:4 8bits • Supports HDR*, which is 4K2K@60 4:2:0 10bits** • HDCP 2.2 and 1.4 compliant • Wide frequency range: 25MHz~600MHz • Video bandwidth: 18Gbps...
-
Page 4: Package Contents
® PRO-4Ksplit4P • Mini-USB firmware update for expanding compatibility • Supports Dolby Digital, DTS-HD and Dolby TrueHD audio • Easy installation HDR = High Dynamic Range. The video bandwidth of 4K2K@60 4:2:0 10bits (HDR) is 384 MHz, and the 4K2K@60 4:4:4 8bits is 594MHz. 3. Package Contents • 1x PRO-4Ksplit4P • 1x DC 5V wall wart • 1x User Manual... -
Page 5: Specifications
® PRO-4Ksplit4P 4. Specifications Item Description Role of usage 1x4 Distribution Amplifier (Splitter) HDMI compliance HDMI 2.0a HDCP compliance HDCP 2.2 / 1.4 Single-link 600MHz [18Gbps] Video bandwidth Video support HDR 4K2K@60 (4:2:0 10bits) / 4K2K@60 (4:4:4 8bits) DTS-HD Master Audio, Dolby TrueHD Dolby Digital, Audio support DTS, DVD-Audio, LPCM, SACD, MPCM Human body model — ±15kV [air-gap discharge] & ESD protection ±8kV [contact discharge] 4-layer board [impedance control — PCB stack-up differential 100Ω; single 50Ω] Firmware update Feasible via Mini-USB port Input 1x HDMI Output 4x HDMI HDMI connector Type A [19-pin female] Dip switch EDID Mode selection Mechanical Housing Metal enclosure Model 166 x 62 x 21mm [6.5" x 2.5" x 0.8"] Dimensions Package 198 x 137x 74mm [7.8" x 5.39" x 2.91"]... -
Page 6: Connection Diagram
® PRO-4Ksplit4P 5. Connection Diagram... -
Page 7: Panel Description

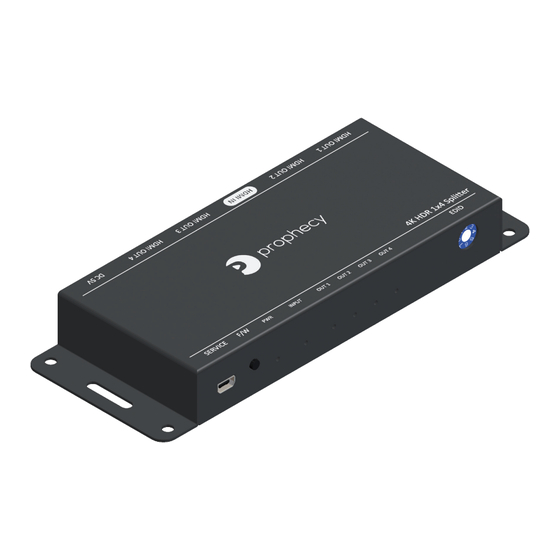

® PRO-4Ksplit4P 6. Panel Description Front Panel 1. Power LED: Lights on when device is ready 2. Signal LED: Input signal LED indicator 3. Signal LED: Output 1-4 signal LED indicator 4. Mini-USB: For technical support only [firmware update] 5. Function Button: For F/W update (please refer to “Notice” about the FW update) 6. EDID MODE: 0 - Ultra HD(4K2K@60) – 8/10/12bit 3D HDR video & 7.1ch audio 1 - Ultra HD(4K2K@60) – 8/10/12bit 3D HDR video & 2ch audio 2 - Ultra HD(4K2K@30)(4K2K@60 420) – 8bit 3D HDR video & 7.1ch audio 3 - Ultra HD(4K2K@30)(4K2K@60 420) – 8bit 3D HDR video & 2ch audio 4 - Full-HD(1080p@60) – 12bit 3D video & 7.1ch audio 5 - Full HD(1080p@60) – 8bit 2D video & 2ch audio 6 - Learning EDID from output 1 7 - Auto EDID analysis learning mode* Rear Panel 7. HDMI OUT1-2: HDMI outputs to HDMI displays 8. HDMI IN: Connect to a HDMI input source 9. -
Page 8: Installation
® PRO-4Ksplit4P 7. Installation Broadcasts HDMI signal to 4 HDMI displays! • Switch off all devices, including monitors. • Connect to the displays. • Connect an HDMI source (such as a Blu-ray Disc player) to the HDMI In. • Plug in 5V DC power supply. • Power on the HDMI monitors. • Power on the HDMI source. - Page 9 ® PRO-4Ksplit4P 8. Notice If somehow user cannot get video output, please try to adjust EDID rotary switch to Mode 5 or 6 for trouble shooting. Under Mode 5, there will be video output. The only requirement is that the display has to support at least Full HD. If default Full-HD EDID still cannot work, user can switch to Mode 6 to learn the EDID from output 1 to customize the EDID information. (Please note that the display with lowest resolution must be connected to output 1) Select to Mode 5 - Full-HD(1080p@60) – 8bit 2D video & 2ch audio 1) Power on the device 2) Set the rotary switch to “5” Select to Mode 6 - Learning EDID from output 1) 1) Power on the device 2) Set the rotary switch to “6”...
-
Page 10: Limited Warranty
® PRO-4Ksplit4P 9. Limited Warranty 1x4 HDMI 2.0a Splitter with The SELLER warrants the PRO-4Ksplit4P Built-in & User Adjustable EDID Management free from defects in the ma- terial and workmanship for 1 year from the date of purchase from the SEL- LER or an authorized dealer. Should this product fail to be in good working order within 1 year warranty period, The SELLER, at its option, repair or replace the unit, provided that the unit has not been subjected to accident, disaster, abuse or any unauthorized modifications including static dischar- ge and power surge. This warranty is offered by the SELLER for its BUYER with direct transaction only. This warranty is void if the warranty seal on the metal housing is broken. Unit that fails under conditions other than those covered will be repaired at the current price of parts and labor in effect at the time of repair. Such repairs are warranted for 90 days from the day of reshipment to the BUY- ER. If the unit is delivered by mail, customers agree to insure the unit or assume the risk of loss or damage in transit. Under no circumstances will a unit be accepted without a return authorization number. The warranty is in lieu of all other warranties expressed or implied, inclu- ding without limitations, any other implied warranty or fitness or merchan- tability for any particular purpose, all of which are expressly disclaimed. Proof of sale may be required in order to claim warranty. Customers out- side Taiwan are responsible for shipping charges to and from the SELLER. Cables and power adapters are limited to a 30 day warranty and must be free from any markings, scratches, and neatly coiled. The content of this manual has been carefully checked and is believed to be accurate. However, The SELLER assumes no responsibility for any in- accuracies that may be contained in this manual. The SELLER will NOT be liable for direct, indirect, incidental, special, or consequential damages resulting from any defect or omission in this manual, even if advised of... - Page 11 ® PRO-4Ksplit4P Disclaimer The product name and brand name may be registered trademarks of related manufacturers. TM and ® may be omitted on the user‘s guide. The pictures on the user‘s guide are just for reference, and there may be some slight differences with the actual products. We reserve the rights to make changes without prior notice to a product or system described herein to improve reliability, function, or design.
- Page 12 ® Thank you for choosing gofanco www.gofanco.com Oct, 2018 Ver. A Copyright © 2018 by gofanco, LLC. All rights reserved.
