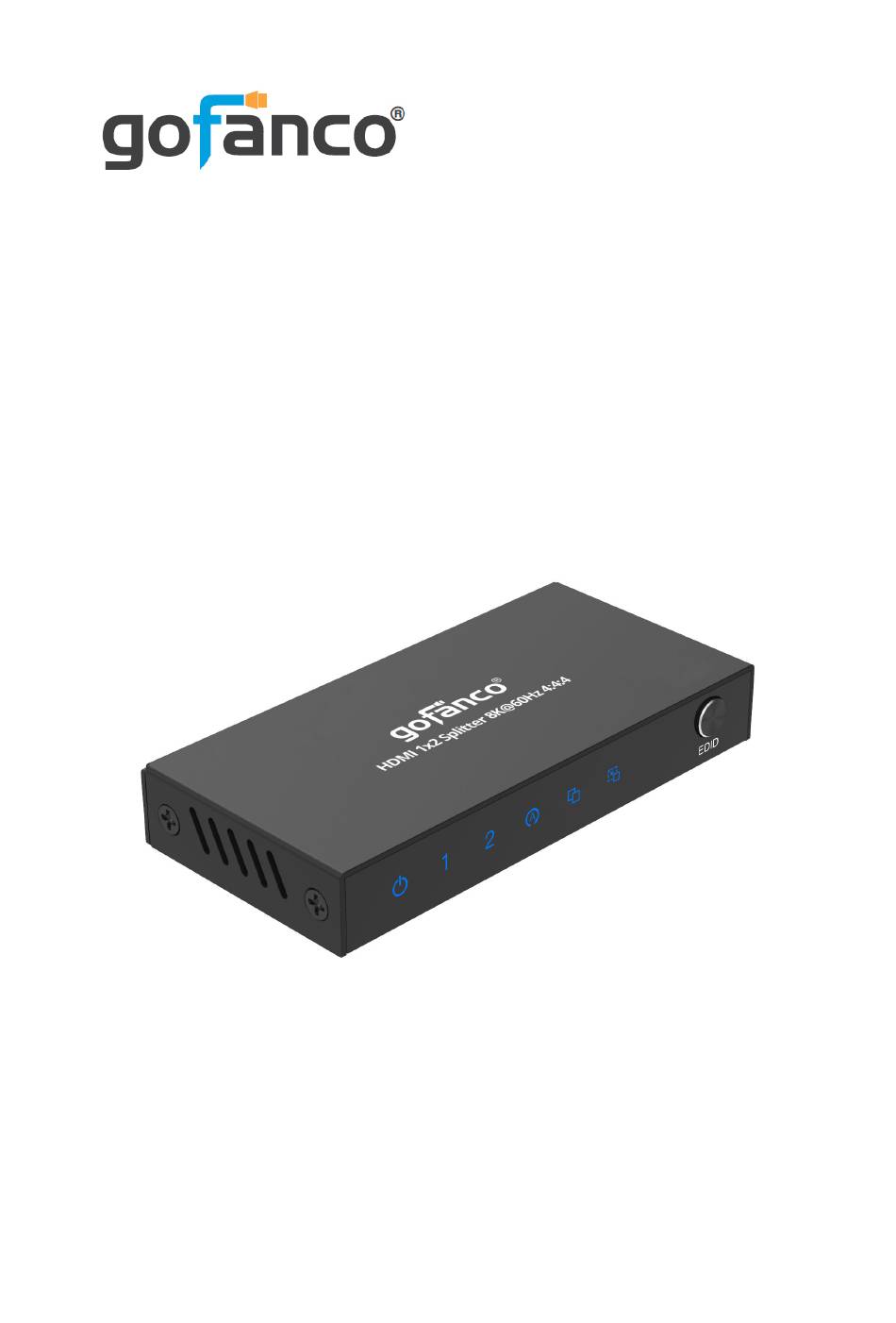

- Page 1 2-Port 8K60Hz HDMI Splitter User's Guide P/N: HDsplit8K-2P G4-0156A...
- Page 2 Thank you for purchasing from gofanco. Our products aim to meet all your connectivity needs wherever you go. For optimum performance and safety, please read the instructions carefully and keep this User’s Guide for future reference. If you need more information about our products, please visit www.gofanco.com.
- Page 3 Package Contents • 2-Port 8K60Hz HDMI Splitter • USB-C to USB-A power cable • User's guide Introduction The 2-Port 8K60Hz HDMI Splitter distributes HDMI video and audio from a single source to 2 HDMI displays simultaneously. Features • Supports 8K @60Hz YUV 4:4:4, 4K @120Hz, 4K @144Hz (via EDID copy), 1080p @240Hz •...
- Page 4 Product Layout Figure 1: Front and Rear Panel Layout Power LED: On when the splitter is powered on Output (1-2) LED: On when displays are detected Auto EDID Mode LED: When on, the EDID of the display with the lowest capabilities is transmitted to both displays - see EDID Management on page 7 for more information Copy EDID Mode LED: When on, the EDID of the...
- Page 5 Hardware Installation Power off all devices including your HDMI source and HDMI displays. Connect your HDMI source device to the HDMI In connector with an HDMI cable (HDMI cable not included). Connect your HDMI displays to the Output (1-2) connectors with HDMI cables (HDMI cables not included).
- Page 6 Connection Diagram Figure 2: Connection Diagram...
- Page 7 EDID Management Press the EDID button on the front panel to switch between the three EDID modes. Auto EDID • Reads the EDID of each display and uses lowest resolution and audio format for both displays • This is the default EDID mode •...
- Page 8 Specifications...
- Page 9 Blank Page...
- Page 10 Blank Page...
- Page 11 Disclaimer The product name and brand name may be registered trademarks of related manufacturers. TM and ® may be omitted on the user's guide. The pictures on the user's guide are just for reference, and there may be some slight differences with the acutal products.
