Summary of Contents for gofanco PRO-MSTDP3DP

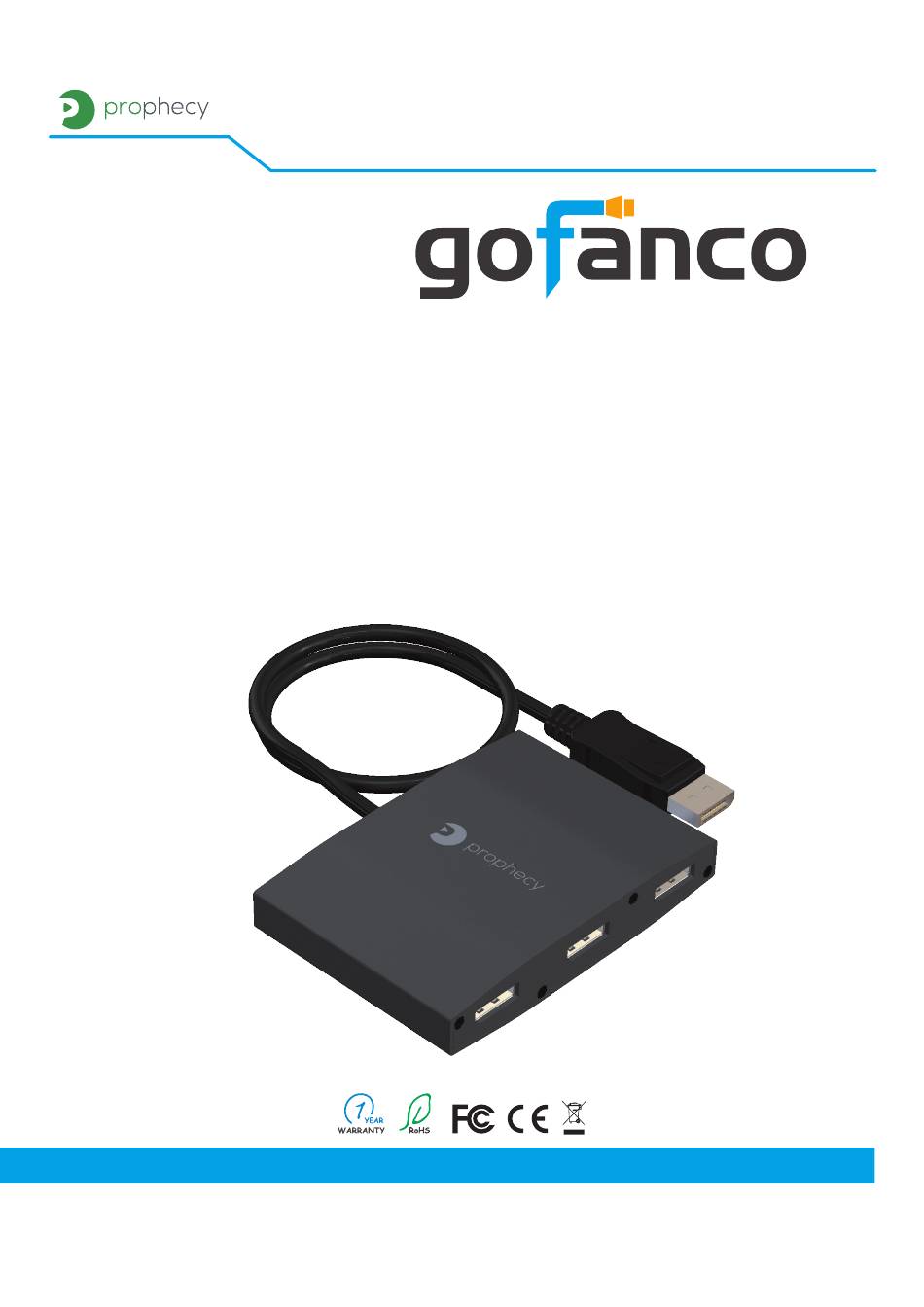

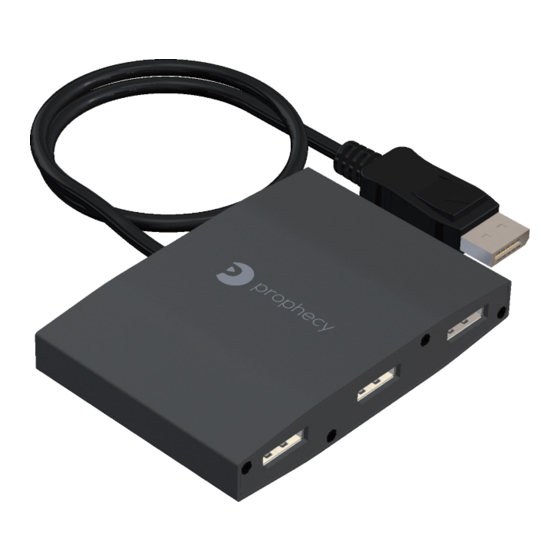

- Page 1 ® PRO-MSTDP3DP 1x3 DisplayPort 1.2 MST Hub/Splitter with Pigtail Cable User‘s Guide Made in Taiwan...
- Page 2 ® PRO-MSTDP3DP Congratulations for owning a gofanco product. Our products aim to meet all your connectivity needs wherever you go. Have fun with our products! Please read this manual carefully before first use. If you need more information about our products, please visit www.gofanco.com.
-
Page 3: Package Contents
Besides, PRO-MSTDP3DP can mirror the same image or split an image to multiple displays for digital signage applications. 2. Features •... -
Page 4: Specifications
® PRO-MSTDP3DP 4. Specifications Item Description Role of usage 1x3 MST Hub/Distribution Amplifier (Splitter) DP compliance DisplayPort 1.2 HDCP compliance HDCP 1.3 21.6Gbps Video bandwidth Video support See bandwidth resolution distribution on page 6 Audio support LPCM, AC3, DTS Human body model — ±15kV [air-gap discharge] &... -
Page 5: Connection Diagram
® PRO-MSTDP3DP 5. Connection Diagram PRO-MSTDP3DP allows user to connect three displays to the Dis- playPort enabled laptop, Ultrabook, or PC. Configure these added monitors anyway you want; works as a splitter with the same con- tent on each monitor, extended mode with independent monitors, or video wall mode joining multiple monitors together as one dis- play. - Page 6 ® PRO-MSTDP3DP Notes 1. Total bandwidth is 21.6Gbps (under MST mode) Resolution % of total bandwidth(21.6Gbps) 3840x2160@60 3840x2160@30 1920x1200@60 1920x1080@60 The total combined bandwidth among all connected displays must NOT exceed 21.6Gbps 2. Supports UHD video resolutions up to 3840x2160@30, and 7.1ch surround audio to deliver high quality video and au-...
-
Page 7: Panel Description
® PRO-MSTDP3DP 6. Panel Description 1. DisplayPort output 1 4. DisplayPort input 2. DisplayPort output 2 5. +5V power (Micro-USB) 3. DisplayPort output 3... - Page 8 ® PRO-MSTDP3DP 7. Notice Notes 1. It is limited to two displays under mirror mode using Windows Display Utility & NVIDIA Utility. 2. It requires either an AMD Eyefinity, Intel, or NVIDIA Surround technology graphics adapter under Video Wall mode (e.g., Pan- oramic).
- Page 9 Also, the technical information contained herein regarding the PRO-MSTDP3DP features and specifications is subject to change without further notice.
- Page 10 ® PRO-MSTDP3DP Disclaimer The product name and brand name may be registered trademarks of related manufacturers. TM and ® may be omitted on the user‘s guide. The pictures on the user‘s guide are just for reference, and there may be some slight differences with the actual products.
- Page 11 ® PRO-MSTDP3DP...
- Page 12 ® Thank you for choosing gofanco www.gofanco.com Aug, 2019 Ver. A Copyright © by gofanco, LLC. All rights reserved.
