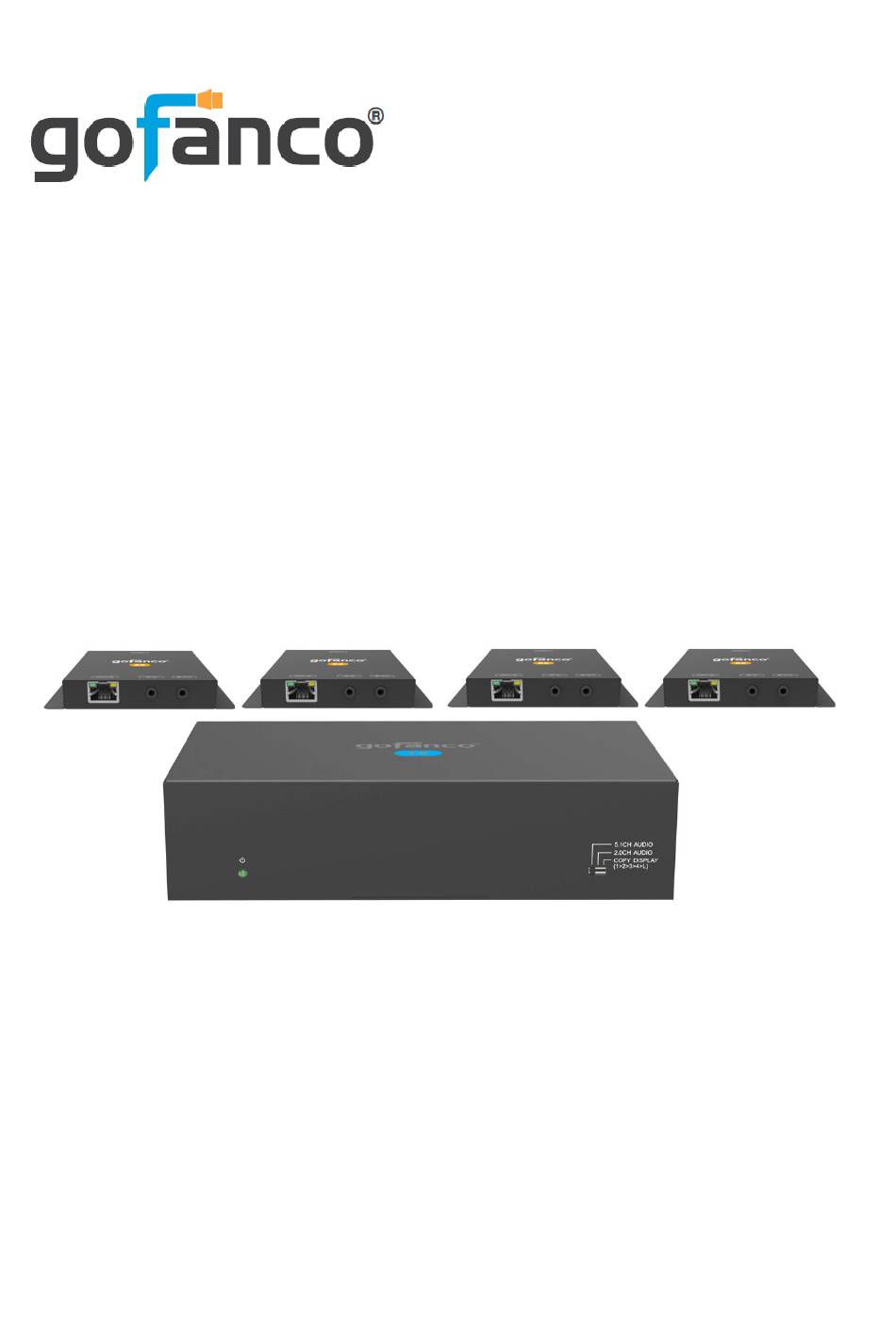

- Page 1 1x4 HDMI 1.4 Splitter/Extender User's Guide P/N:HDExt4P-HD14 G4-0124A...
- Page 2 Thank you for purchasing from gofanco. Our products aim to meet all your connectivity needs wherever you go. For optimum performance and safety, please read the instructions carefully and keep this User's Guide for future reference. If you need more information about our products, please visit www.gofanco.com.
- Page 3 Introduction The 1x4 HDMI 1.4 Splitter/Extender distributes HDMI signals from one source device to four CAT6/7 outputs and one HDMI output (loopout). Features • Distributes HDMI signals from one source to four CAT6/7 outputs • One HDMI loopout on the transmitter •...
-
Page 4: Package Contents
Package Contents 1x4 HDMI 1.4 Splitter/Extender • 1x 1x4 HDMI 1.4 Splitter/Extender • 4x CAT6/7 Receivers • 5x IR Receiver cables • 1x IR Emitter cable • 1x Power adapter (24V/2.71A) • Surface mount accessories • 4x Velcro strips • 4x Plastic cushions •... - Page 5 Figure 2: 1x4 HDMI 1.4 Splitter/Extender Rear Panel Layout HDMI In: Connects to your HDMI source Outputs: • HDMI Loopout: Connects to a local HDMI display • CAT6/7 Out (1-4): Connects to the CAT6/7 In of the CAT6/7 Receivers using a CAT6/7 cable. It supports PoC to power the receiver over CAT cable.
- Page 6 Audio Out: • S/PDIF Out: Toslink output for audio de-embedding from the HDMI output • L/R Out: RCA analog stereo output for audio de-embedding from the HDMI output Power Jack: Connects to the included 24V power adapter Figure 3: CAT 6/7 Receiver Front and Back Panel Layout HDMI Out: Connects to an HDMI display CAT6/7 In: Connects to the CAT6/7 Out of the Splitter/Extender using a CAT6/7 cable.
- Page 7 Hardware Installation Power off all devices including your HDMI source and HDMI display(s). Connect your HDMI source device to the 1x4 HDMI 1.4 Splitter/Extender's HDMI In connector with an HDMI cable (HDMI cable not included). Connect your CAT6/7 cables between the Splitter/ Extender and CAT6/7 Receivers.
- Page 8 Application Diagram The application diagram shows the most typical input and output devices used with the Splitter/Extender. Figure 4: Application Diagram CAT Cable Wiring We suggest both RJ-45 connectors be wired identically using T568B wiring standard for the best performance and compatibility.
- Page 9 IR Control Provides IR control of the connected devices. The IR feature is bi-directional so either the source device or the display device(s) can be remotely controlled. Controlling the Source Device Connect an IR Emitter Cable to the IR Out port of the Splitter/Extender.
- Page 10 Controlling the Display Device(s) using IR In Allows you to remotely control each display individually. Connect an IR Receiver Cable to the IR In port of the Splitter/Extender. Connect an IR Emitter Cable to the IR Out port on each CAT6/7 Receiver. Point the IR Emitter Cable's IR eye in line with the display's IR window.
- Page 11 Controlling the Display Device(s) using IR All In Port Allows remote controlling of all of the display devices simultaneously. Connect an IR Receiver Cable to the IR All In port of the Splitter/Extender. Connect an IR Emitter Cable to the IR Out port on each CAT6/7 Receiver.
- Page 12 FAQ & Troubleshooting Poor video quality or no video signal on display: A1: Check whether the HDMI cables are connected properly and are in good working condition. A2: Make sure the resolution of the display is compatible with the splitter's resolution No HDMI signal output from the CAT6/7 connectors while the local HDMI out port is working normally:...
- Page 13 Specifications 1x4 HDMI 1.4 Splitter/Extender...
- Page 14 1x4 HDMI 1.4 Splitter/Extender Cont'd CAT6/7 Receiver...
- Page 15 Disclaimer The product name and brand name may be registered trademarks of related manufacturers. TM and ® may be omitted on the user's guide. The pictures on the user's guide are just for reference, and there may be some slight differences with the actual products.
- Page 16 Thank you for choosing gofanco www.gofanco.com...
