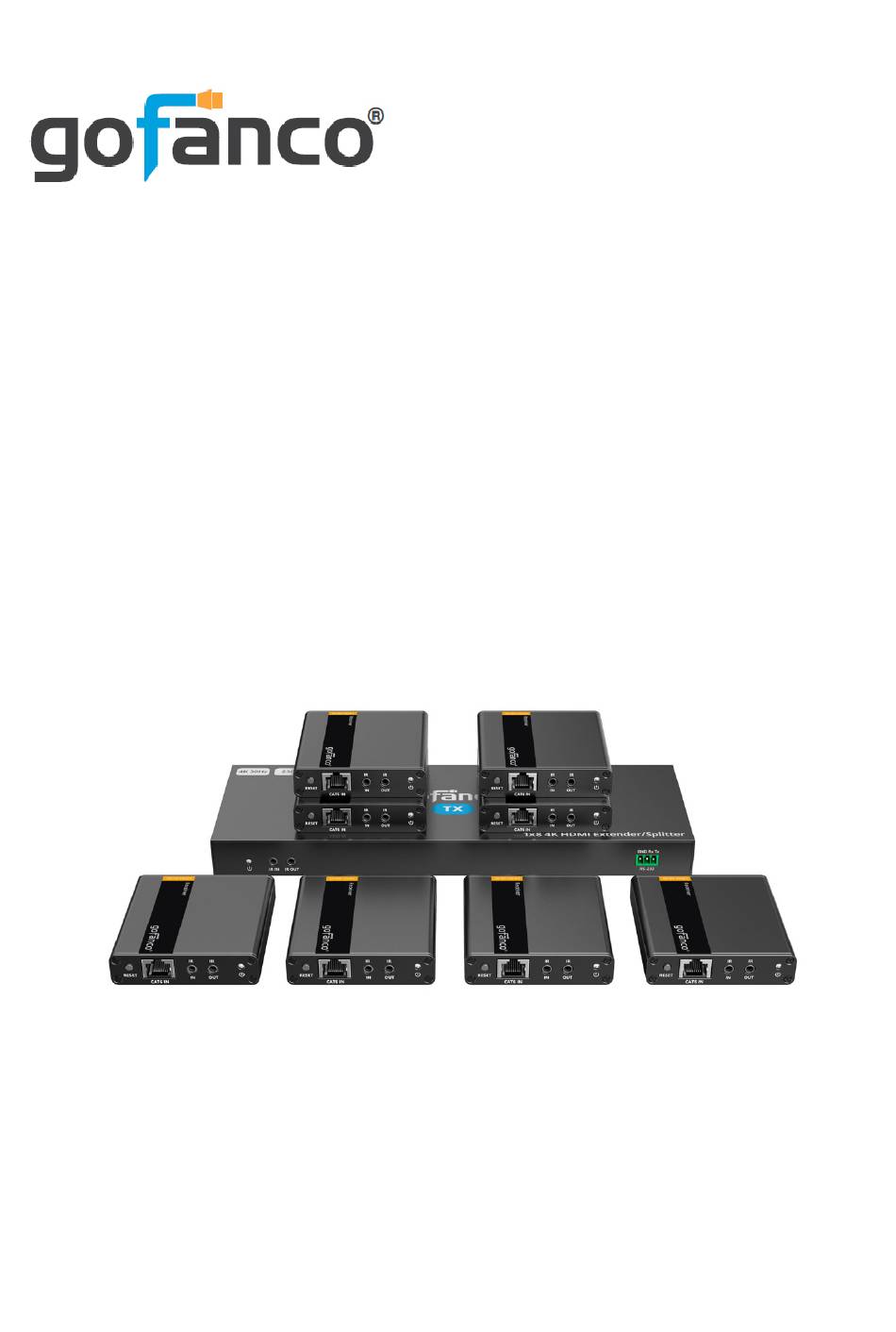

- Page 1 1x8 HDMI CAT Splitter/ Extender 4K30 - 70M User's Guide P/N:HD14Ext-8P G4-0145A...
- Page 2 Thank you for purchasing from gofanco. Our products aim to meet all your connectivity needs wherever you go. For optimum performance and safety, please read the instructions carefully and keep this User's Guide for future reference. If you need more information about our products, please visit www.gofanco.com.
- Page 3 Introduction The 1x8 HDMI CAT Splitter/Extender distributes HDMI signals from one source device to up to eight CAT6/7 outputs and one HDMI output (loopout). Features • Extends HDMI transmissions up to 70m (230ft) @1080p & 131ft (40m) @4K30Hz • HDCP 1.4 compliant •...
- Page 4 Package Contents • 1x 1x8 HDMI CAT Transmitter • 8x CAT6/7 Receivers • 1x IR Emitter cable • 8x IR Receiver cables • 1x TX power adapter (12V/2A) • 8x RX power adapters (5V/500mA) • Surface mount accessories • 1x Terminal block (RS232) •...
- Page 5 Product Layout Figure 1: Transmitter Layout Reset Button: Press to restart the Transmitter CAT6/7 Out (x8): Connects to the CAT6/7 In of the Receivers using CAT6/7 cables (CAT cables not included) HDMI Out: Connects to your HDMI display HDMI In: Connects to your HDMI source device Power Jack: Connects to the included 12V/2A power adapter Power/Signal LED: When the Transmitter is...
- Page 6 Product Layout Continued Figure 2: Receiver Front Panel Layout Reset Button: Press to restart the Receiver CAT6/7 In: Connects to the CAT6/7 Out of the Transmitter using CAT6/7 cables (CAT cables not included) IR In: Connect to the IR Receiver cable IR Out: Connect to the IR Emitter cable Power/Signal LED: When the Receiver is powered •...
- Page 7 Product Layout Continued Figure 3: Receiver Back Panel Layout Power Jack: Connects to the included 5V/500mA power adapter 3.5mm Out: Connects to headphones or speakers HDMI Out: Connects to your HDMI display...
- Page 8 Hardware Installation Power off all devices including your HDMI source and HDMI display(s). Connect your HDMI source device to the Transmitter's HDMI In connector with an HDMI cable (HDMI cable is not included). Connect your CAT cables between the Transmitter and CAT6/7 Receivers.
- Page 9 Application Diagram The application diagram shows the most typical input and output devices used with the Splitter/Extender. Figure 4: Application Diagram...
- Page 10 CAT Cable Wiring We suggest both RJ-45 connectors be wired identically using T568B wiring standard for the best performance and compatibility.
- Page 11 IR Control Provides IR control of the connected devices. The IR feature is bi-directional so either the source device or the display device(s) can be remotely controlled. Controlling the Source Device Connect an IR Emitter Cable to the IR Out port of the Transmitter.
- Page 12 RS232 Control Connect the Transmitter's RS232 port to your control PC's serial port using an RS232 cable. COM Port Setting • Baud Rate: 9600 • Data Bits: 8 • Stop Bits: 1 • Parity Bits: None RS232 Commands...
- Page 13 FAQ & Troubleshooting Poor video quality or no video signal on display: A1: Check whether the HDMI cables are connected properly and are in good working condition. A2: Make sure the resolution of the display is compatible with the splitter's resolution No HDMI signal output from the CAT6/7 connectors while the local HDMI out port is working normally:...
-
Page 14: Specifications
Specifications... - Page 15 Disclaimer The product name and brand name may be registered trademarks of related manufacturers. TM and ® may be omitted on the user's guide. The pictures on the user's guide are just for reference, and there may be some slight differences with the actual products.
- Page 16 Thank you for choosing gofanco www.gofanco.com...
