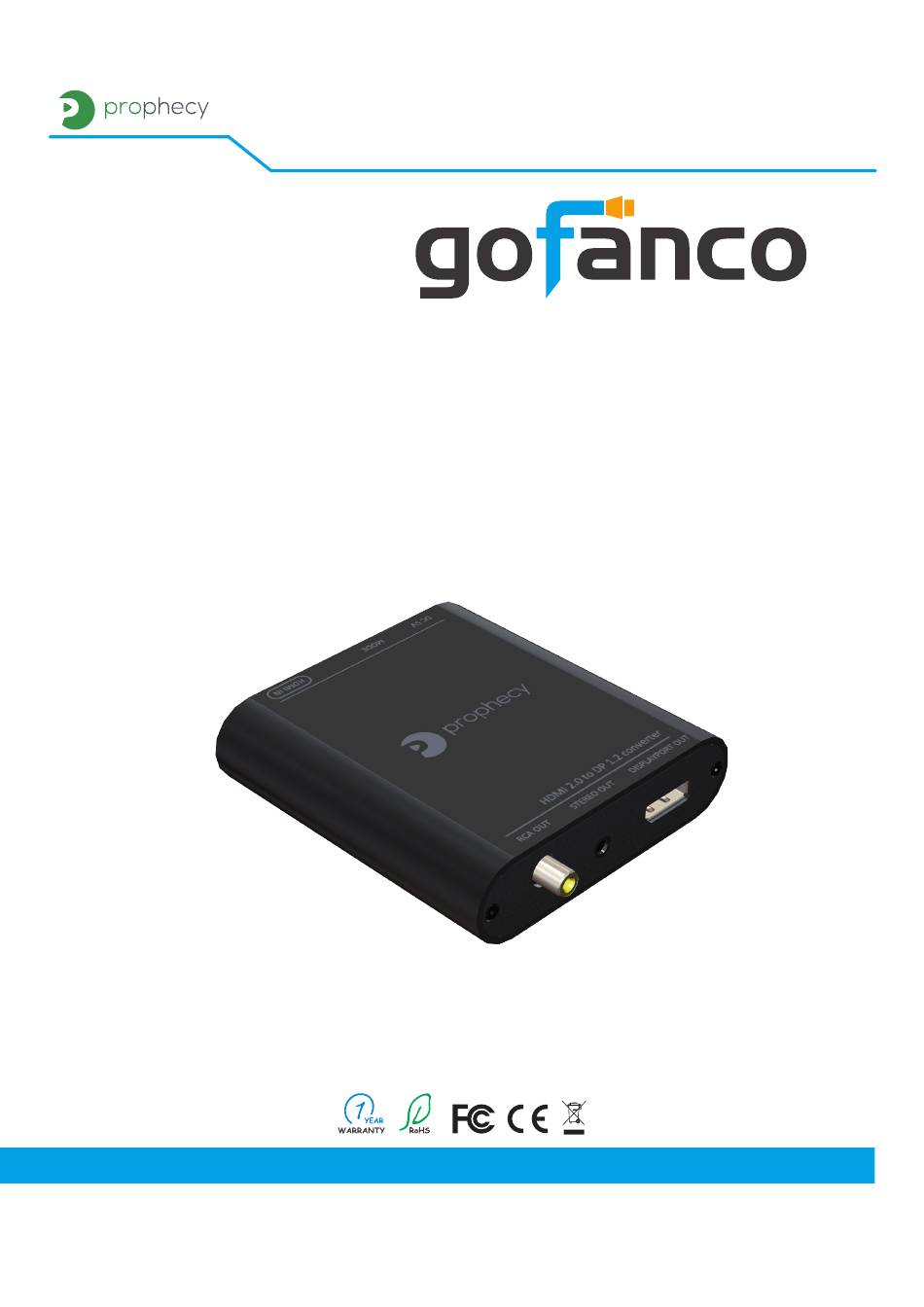

- Page 1 ® PRO-HDMI2DP HDMI 2.0a to DisplayPort 1.2a Converter User‘s Guide Made in Taiwan...
- Page 2 ® PRO-HDMI2DP Congratulations for owning a gofanco product. Our products aim to meet all your connectivity needs wherever you go. Have fun with our products! Please read this manual carefully before first use. If you need more information about our products, please visit www.gofanco.com.
-
Page 3: Table Of Contents
However, like all electronic equipments, the PRO-HDMI2DP should be used with care. Please read and follow the safety instructions to protect yourself from possible injury and to minimize the risk of damage to the unit. -
Page 4: Introduction
® PRO-HDMI2DP 2. Introduction The PRO-HDMI2DP HDMI 2.0a to DisplayPort 1.2a Converter provides a professional way to convert HDMI input signal into a DisplayPort output. This device supports the separation of high quality stereo analog audio and di- gital S/PDIF (RCA) audio from the incoming HDMI signal without losing any active audio channels from audio bit- stream and makes HDMI audio more friendly to your audio systems with only stereo sound support. -
Page 5: Specifications
® PRO-HDMI2DP 5. Specifications Item Description Technical Role of usage HDMI to DisplayPort Converter HDMI compliance HDMI 2.0a DisplayPort 1.2a DisplayPort compliance HDCP compliance Input Video bandwidth Single-link 600MHz [6.0Gbps] Video support 4K2K@60 (4:4:4 8bits) Audio support Audio Extraction Only ESD protection Human body model —... -
Page 6: Connection Diagram
® PRO-HDMI2DP 6. Connection Diagram... -
Page 7: Panel Description
® PRO-HDMI2DP 7. Panel Description Front Panel 1. Micro-USB port: Power and Firmware update 2. Dip switch: Default EDID DIP Switch Position Description 2-Pin 3840x2160 60Hz ON [ ON [ 4096x2160 60Hz OFF [ ON [... -
Page 8: Warranty
® PRO-HDMI2DP 8. Limited Warranty The SELLER warrants the PRO-HDMI2DP HDMI 2.0a to DisplayPort 1.2a Converter to be free from defects in the material and workmanship for 1 year from the date of purchase from the SELLER or an authorized dealer. Should... - Page 9 ® PRO-HDMI2DP Disclaimer The product name and brand name may be registered trademarks of related manufacturers. TM and ® may be omitted on the user‘s guide. The pictures on the user‘s guide are just for reference, and there may be some slight differences with the actual products.
- Page 10 ® PRO-HDMI2DP...
- Page 11 ® PRO-HDMI2DP...
- Page 12 ® Thank you for choosing gofanco www.gofanco.com January, 2018 Ver. A Copyright © 2018 by gofanco, LLC. All rights reserved.
