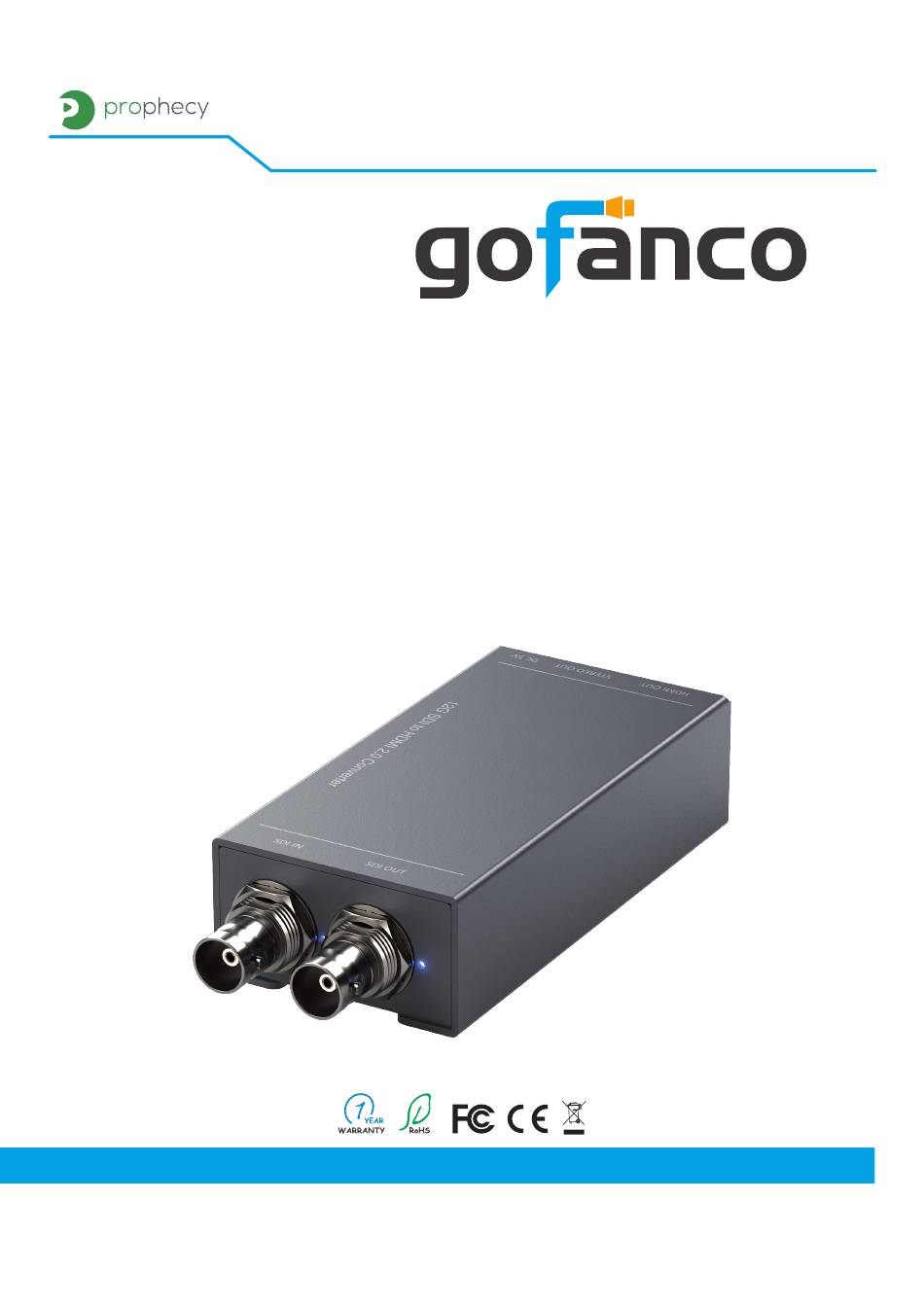

- Page 1 ® PRO-SDIHD2 12G/6G/3G/HD-SDI to HDMI 2.0 Converter with Audio Extractor User‘s Guide Made in Taiwan...
- Page 2 ® PRO-SDIHD2 Congratulations for owning a gofanco product. Our products aim to meet all your connectivity needs wherever you go. Have fun with our products! Please read this manual carefully before first use. If you need more information about our products, please visit www.gofanco.com.
- Page 3 The PRO-SDIHD2 also provides one low jitter SDI local loop-out and high quality analog stereo output to provide the flexibility to users. With the use of PRO-SDIHD2, the most popular uncompressed video interface in the consumer world is readily available for professional SDI equipment! 2.
-
Page 4: Package Contents
2. ONLY supports two-sample interleave sampling scheme. Does NOT support Square Division method. 3. Does NOT support SD-SDI. 4. Does NOT support 3G-SDI level B. 3. Package Contents • 1x PRO-SDIHD2 • 1x 5V power adapter • 1x Rack-mounting ears set • 1x User Manual... -
Page 5: Specifications
® PRO-SDIHD2 4. Specifications Item Description SDI standards 12G/6G/3G/HD-SDI HDMI standards HDMI 2.0 Auto 12G/6G/3G/ HD-SDI detection [SDI][11.88 Gbps, 11.88/1.001 Gbps] Video bandwidth [HDMI] [up to 18Gbps] [12G] 4K2K @50/59.94/60Hz [6G] 4K2K @23.98/24, 25, 29.97, 30Hz [3G] 1080p50/59.94/60 Video support [HD] –... - Page 6 ® PRO-SDIHD2 Mechanical Housing Metal enclosure Model 92 x 84 x 23mm[3.7“ x 3.3“ x 0.9“ ] Dimensions Package 198 x 137 x 74mm [7.8" x 5.4" x 2.9"] [L x D x H] Carton 420 x 400 x 300mm [1'4"x 1'3" x 11.8"] Model 175g[6.2 oz]...
-
Page 7: Connection Diagram
® PRO-SDIHD2 5. Connection Diagram... -
Page 8: Panel Description
® PRO-SDIHD2 6. Panel Description Rear Panel Front Panel 1. SDI IN: 12G/6G/3G/HD/SD-SDI Input 2. Power LED indicator 3. SDI OUT: 12G/6G/3G/HD/SD-SDI loopout 4. Signal LED indicator 5. HDMI OUT: Connect to a HDMI display with a HDMI male-male cable here 6. -
Page 9: Supported Resolutions
® PRO-SDIHD2 7. Supported Resolutions 12G-SDI Output 4K2K @50/59.94/60Hz SMPTE ST-2082 6G-SDI Output 4K2K @23.98/24, 25, 29.97, 30Hz SMPTE ST-2081 3G-SDI Output 1080p @ 50/ 59.94 / 60Hz SMPTE 424M, SMPTE 425M HD-SDI Output 720p @ 50Hz SMPTE 296M -3 720p @ 60 / 59.94Hz... -
Page 10: Limited Warranty
Also, the technical information contained herein regarding the PRO-SDIHD2 features and specifications is subject to change without further notice. - Page 11 ® PRO-SDIHD2 Disclaimer The product name and brand name may be registered trademarks of related manufacturers. TM and ® may be omitted on the user‘s guide. The pictures on the user‘s guide are just for reference, and there may be some slight differences with the actual products.
- Page 12 ® Thank you for choosing gofanco www.gofanco.com Dec, 2021 Ver. B Copyright © by gofanco, LLC. All rights reserved.
