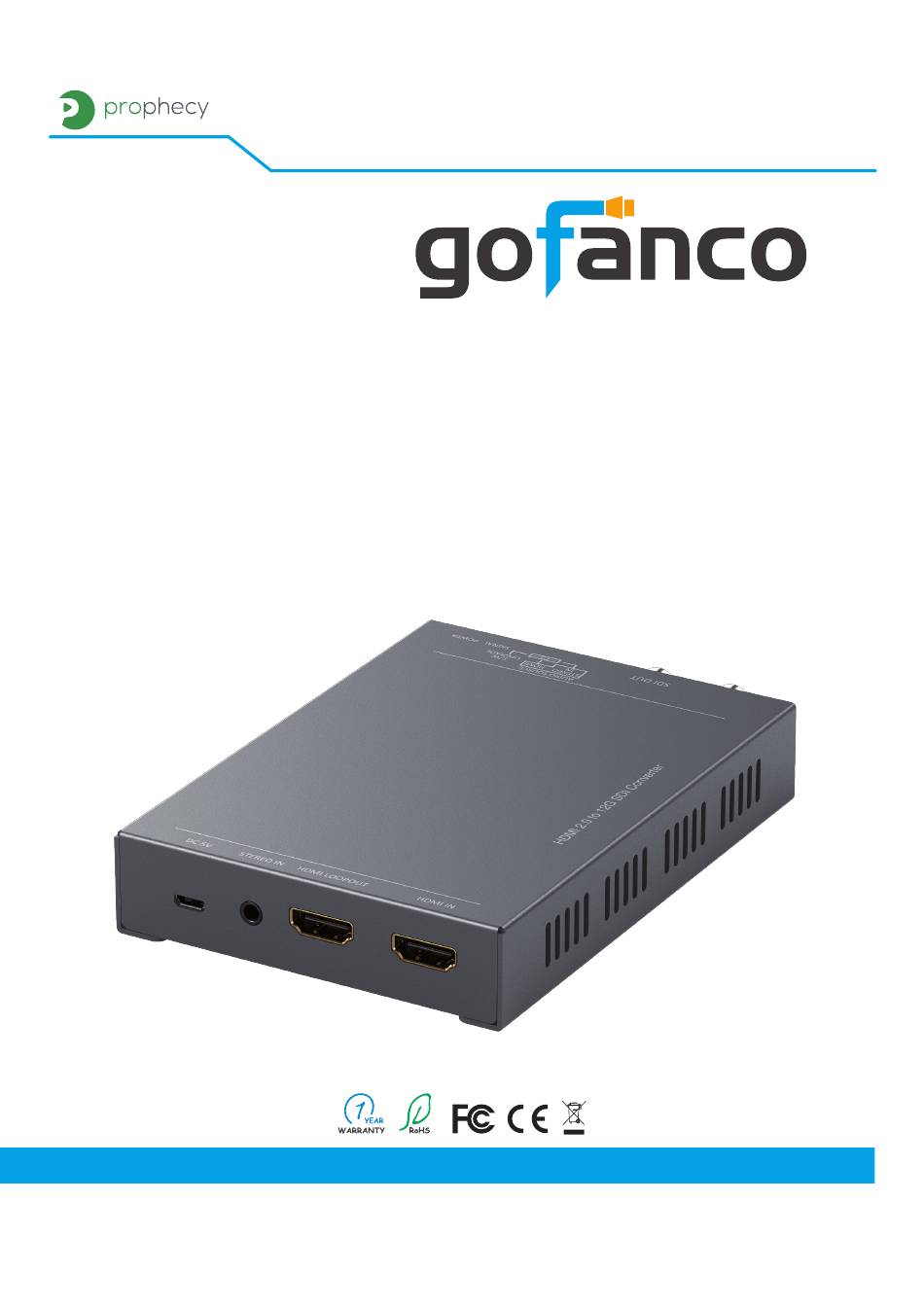

- Page 1 ® PRO-HD2SDI HDMI 2.0 to 12G/6G/3G/HD-SDI Converter with HDMI loopout & Audio Embedder User‘s Guide Made in Taiwan...
- Page 2 ® PRO-HD2SDI Congratulations for owning a gofanco product. Our products aim to meet all your connectivity needs wherever you go. Have fun with our products! Please read this manual carefully before first use. If you need more information about our products, please visit www.gofanco.com.
- Page 3 The PRO-HD2SDI provides two low jitter SDI outputs & one HDMI loop-out for flexible application possibili- ties. The PRO-HD2SDI is also equipped with high quality analog stereo embedder. With the use of PRO-HD2SDI, the most popular uncompressed video interface in the consumer world is readily available for professional SDI equipment! 2.
-
Page 4: Package Contents
5. 4K2K@24/25/30Hz RGB or YCbCr 4:4:4 deep color signal can NOT be converted to YCbCr 4:2:2, only bypass to display. 3. Package Contents • 1x PRO-HD2SDI • 1x 5V power adapter • 1x Rack-mounting ears set • 1x User Manual... -
Page 5: Specifications
® PRO-HD2SDI 4. Specifications Item Description SDI standards 12G/6G/3G/HD-SDI HDMI standards HDMI 2.0 Auto 3G/HD/SD-SDI detection [SDI][11.88 Gbps, 11.88/1.001 Gbps] Video bandwidth [HDMI] [up to 18Gbps] [12G] 4K2K @50/59.94/60Hz [6G] 4K2K @23.98/24, 25, 29.97, 30Hz [3G] 1080p50/59.94/60 Video support [HD] – 720p @50/59.94/60Hz,1080i @50/59.94/60Hz, 1080p @23.98/24/25/29.97/30Hz... - Page 6 ® PRO-HD2SDI Mechanical Housing Metal enclosure Model 128 x 92 x 23mm[5“ x 3.6“ x 0.9“ ] Dimensions Package 198 x 137 x 74mm [7.8" x 5.4" x 2.9"] [L x D x H] Carton 420 x 400 x 300mm [1'4"x 1'3" x 11.8"] Model 192g[6.7 oz]...
-
Page 7: Connection Diagram
® PRO-HD2SDI 5. Connection Diagram... -
Page 8: Panel Description
® PRO-HD2SDI 6. Panel Description Rear Panel Front Panel 1. SDI OUT: 12G/6G/3G/HD-SDI output 2. SDI OUT: 12G/6G/3G/HD-SDI output 3. Slide Switch [Left] Stereo Audio Embedder Function(2ch) [Middle] HDMI Audio Bypass(up to 7.1ch) [Right] F/W update 4. LED: Signal LED indicator 5. -
Page 9: Supported Resolutions
® PRO-HD2SDI 7. Supported Resolutions 12G-SDI Output 4K2K @50/59.94/60Hz SMPTE ST-2082 6G-SDI Output 4K2K @23.98/24, 25, 29.97, 30Hz SMPTE ST-2081 3G-SDI Output 1080p @ 50/ 59.94 / 60Hz SMPTE 424M, SMPTE 425M HD-SDI Output 720p @ 50Hz SMPTE 296M -3 720p @ 60 / 59.94Hz... -
Page 10: Limited Warranty
Also, the technical information contained herein regarding the PRO-HD2SDI features and specifications is subject to change without further notice. - Page 11 ® PRO-HD2SDI Disclaimer The product name and brand name may be registered trademarks of related manufacturers. TM and ® may be omitted on the user‘s guide. The pictures on the user‘s guide are just for reference, and there may be some slight differences with the actual products.
- Page 12 ® Thank you for choosing gofanco www.gofanco.com Dec, 2021 Ver. B Copyright © by gofanco, LLC. All rights reserved.
