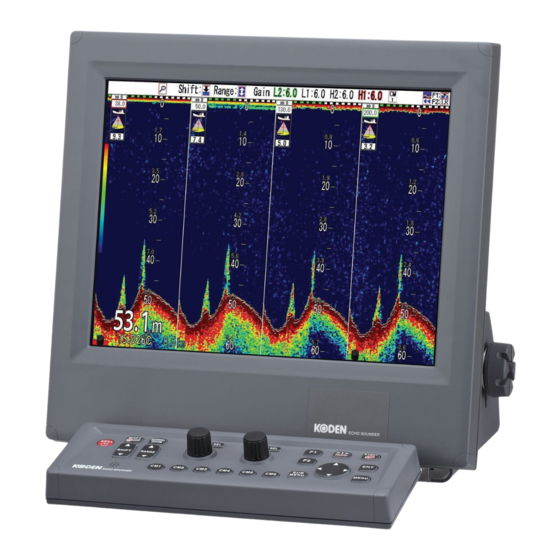

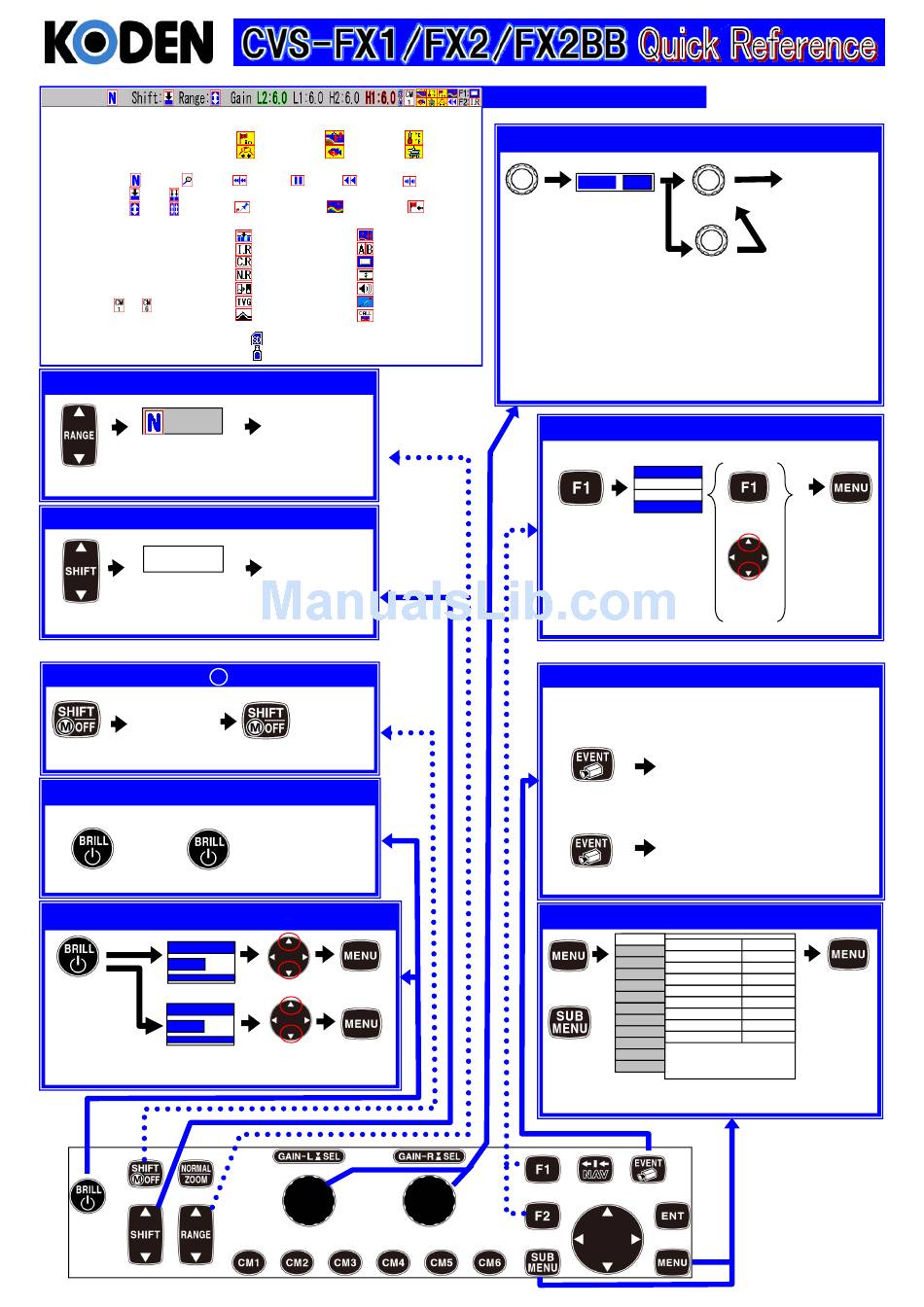

Koden CVS-FX2 Quick Reference

(1) (2) (3) (4)
(1) Range Mode
Blank : Manual
Auto Range : Auto Range
Auto Shift
: Auto Shift
(2) Normal/Zoom Normal Zoom
(3) Shift status Same Indiv.
(4) Range status Same Indiv.
(5) Gain setting
:
Hi-Freq. 1
H1
:
Hi-Freq. 2
H2
:
Lo-Freq. 1
L1
:
Lo-Freq. 2
L2
*Vaule stands for current setting.
(6) CM status ~
Select Range ([▲RANGE▼] key)
100m
Setting range is
displayed
*Not valid during Auto Range.
Push
*In case the same range for all screens
Set Shift ([▲SHIFT▼] key)
100
Setting shift is
displayed
*Not valid during Auto Shift.
Push
*In case the same range for all screens
Turn OFF Shift ([SHIFT/ M OFF key])
Shift setting
turns to zero
Push
Power ON/OFF ([BRILL] key)
Power ON Power OFF
Push
Keep pressed longer than 3 seconds
Adjust Brightness ([BRILL] key)
LCD Brill
10
Push
Panel Brill
10
*Changes each time [BRILL] key is pushed.
(5) (11) (6)
(12)
(7) Alarm set status
Arrival Bottom
XTE Fish
(8) Image Speed
Speed1 Stop Speed2
(9) [EVENT] key assignment
Store Position Store Image
(10) [F1] [F2] key assignment
Shift Digit Input A Scope
IR Image Swap
Color Erase Image Title
Noise Rejection VRM Interval
Background Color Sona-Tone
TVG Adjust NAV Start
White Line Image Recall
(11) SD Card* *(11)(12) are only for
(12) USB Memory* CVS-FX2/FX2BB
Disappears in
a given time.
Disappears in
a given time
Returns to
the preset
value
Push
Push
Push
Push
Push
Explanation of header icons
(9)
(7) (10)
(8)
W. Temp Gain adjustment
Speed
Speed3-9
Homing
Turn
To adjust gain, use the following GAIN knob:
1 screen: GAIN-R knob
2 screens:GAIN-R knob for the right screen, GAIN-L knob for the left
3/4 screens:GAIN-R knob for the 2 right screens, GAIN-L knob for 2 left.
Use GAIN-R knob for the middle screen, in case of 3 screens.
Select Settings of Saved Function ([F1]/[F2] key)
Function depends on setting by [F1 key setting]
Push
Long push [F1] or [F2] key
to select function to assign
Store Position / Store Image ([EVENT] key)
Function depends on setting by [EVENT key setting]
[Store Position]
Push
[Store Image]
Push
Display Menu List ([MENU] key)
Push
Push
Adjust
9.0
Turn
To switch adjust
Push
screen
IR
OFF
Low
High
Push
Push
*Navigation data (eg. GPS) is
required.
To save waypoint
To save image of echo sounder
Echo Adjust
IR High
TVG
Color
0%
Disp. Setup1
0
Noise Rejection
Disp. Setup2
TX Power(HF)
100
Range Setup
TX Power(LF) 100
Shift Setup
Dynamic Range
24dB
BTM Search
Background Color
Blue
Alarm1
Color Tone
64 colors
Alarm2
Return
NAV
Manual set
*To open menu list, or sub-menu list
Disappears in
a given time
Push
*Either operation
is possible
[F2 key setting]
can be done
similarly
Push
*To close the
menu list
