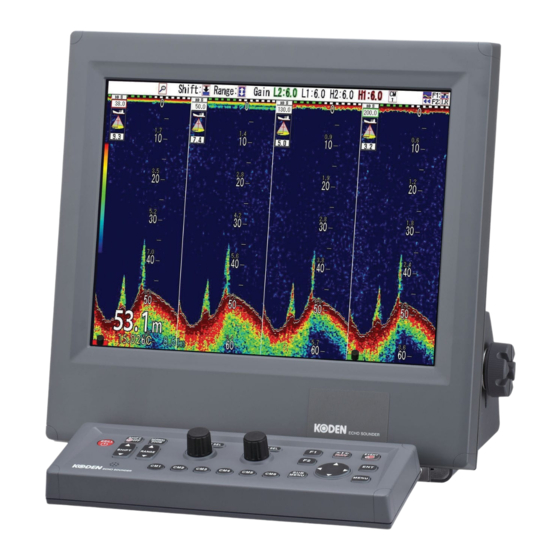

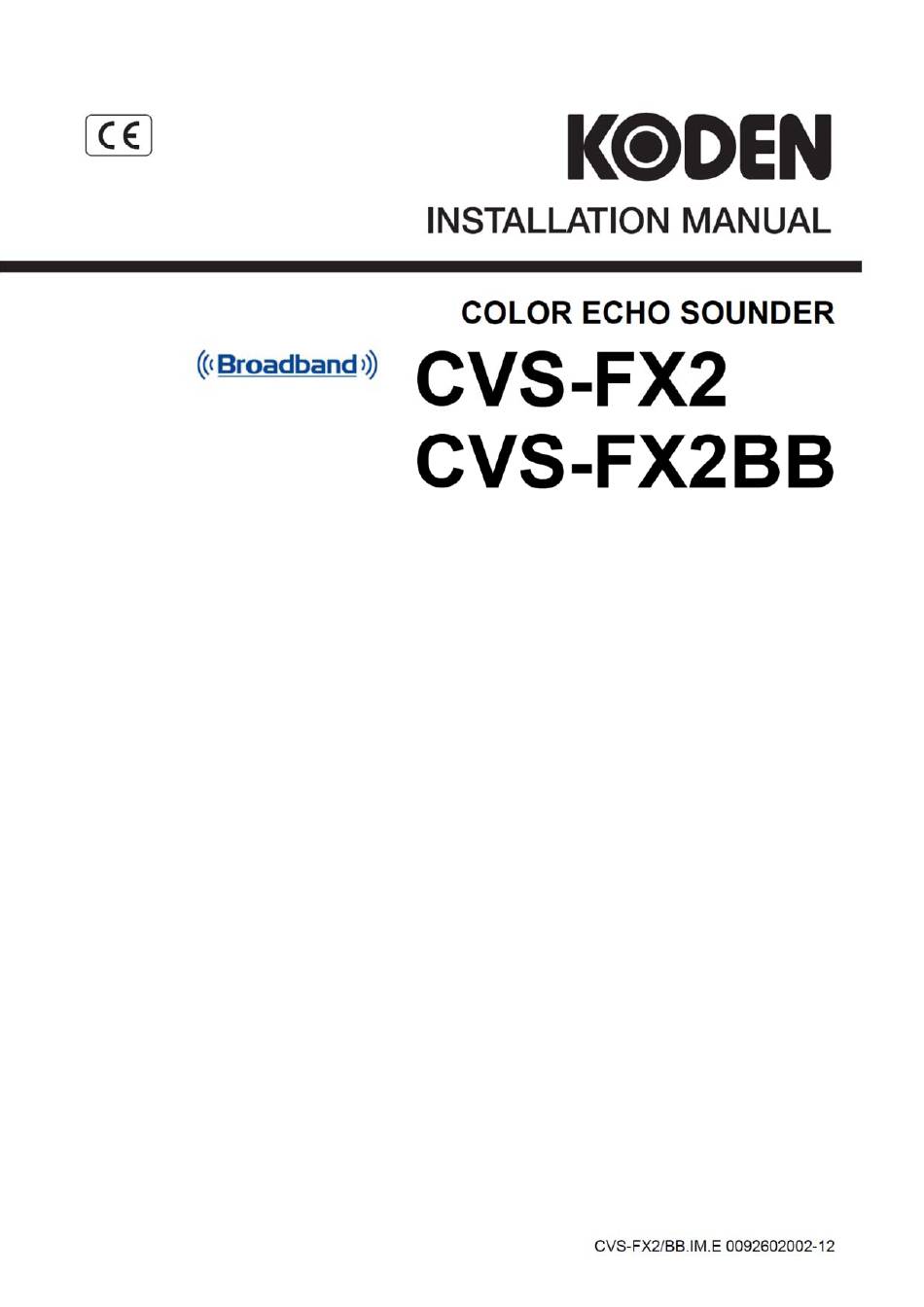

Koden CVS-FX2 Installation Manual

Color echo sounder
Hide thumbs Also See for CVS-FX2:
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CVS-FX2 and is the answer not in the manual?

Questions and answers

Related Manuals for Koden CVS-FX2

Summary of Contents for Koden CVS-FX2

  • Page 3 No part of this publication may be reproduced, transmitted, translated in any form by any means without the written permission of Koden Electronics Coo., Ltd. The technical descriptions contained in this publication are subject to change without notice. Koden assumes no responsibility for any errors, incidentals or consequential damages caused by misinterpretation of the descriptions contained in this publication.

  • Page 4: Important Notice

    Koden is not liable for damages of accompaniment (change/loss of memorized content, loss of business profit, stop of business) arisen from use or failure of our products.  If the stored data are changed or lost, irrespective of causes of troubles and damages, Koden is not liable for them. ...

  • Page 5: For Your Safe Operation

    CVS-FX2/FX2BB For Your Safe Operation For Your Safe Operation Symbol used in this Installation Manual The following graphical symbols are used in this manual. The meaning of each symbols shall be well understood and apply at maintenance and inspection works.
  • Page 6 For Your Safe Operation CVS-FX2/FX2BB Caution on location of equipment Do not install the equipment where it is excessively damp and suffers Caution from excessive water drops. Measures against static electricity The static electricity may be generated from the carpet on the floor in Caution the cabin or clothes made of synthetic fiber.

  • Page 7: Table Of Contents

    1.1.3 Selection of location for installation ................... 1-1 1.1.4 Laying and connection of cables ....................1-2 1.1.5 Coordination after installation ....................1-2 Installation of CVS-FX2 Display unit ..................1-3 1.2.1 Desk-top installation ........................1-3 1.2.2 Flush-mount installation ......................1-5 Installation of CVS-FX2BB Processor unit ................1-6 Installation of Operation unit ......................
  • Page 8 2.7.4 Relation of the set value between [Output Limit] and [MENU] - [Echo Adjust] - [TX Power] ..2-7 Chapter 3 Maintenance...................3-1 Inspection ........................... 3-1 Cleaning ............................. 3-1 3.2.1 Display unit of CVS-FX2 ......................3-1 3.2.2 Transducer ..........................3-2 Fuse Replacement ........................3-2 Diagnostics of troubles ......................3-2 3.4.1 Necessary information for requesting repair ................

  • Page 9: System Configuration

    CVS-FX2/FX2BB System Configuration System Configuration Connection diagram of CVS-FX2 Legend Standard configuration Display unit ESD-200 Option With mounting bracket and Knobs Owner supply Connector of Operation unit Operation unit CW-409A-5M J1 connector External echo sounder (Owner supply) CW-372-5M J2 connector...
  • Page 10 System Configuration CVS-FX2/FX2BB Legend Standard configuration Connection diagram of CVS-FX2BB Option Owner supply Processor unit ESM-200 CW-560-2M External Monitor (Owners supply) Cable for External monitor Connector of Operation unit Operation unit CW-409A-5M J1 connector External echo sounder (Owner supply) CW-372-5M...

  • Page 11: Configuration Of Equipment

    CVS-FX2/FX2BB Configuration of Equipment Configuration of Equipment Standard Equipment Configuration List of CVS-FX2 Weight/ Name of item Type Remark Length Display unit With mounting bracket ESD-200 13 kg and knobs Operation unit With mounting bracket 0.7kg/ ESO-200 CW-409A-5M DC power cable...
  • Page 12 Configuration of Equipment CVS-FX2/FX2BB Standard Equipment Configuration List of CVS-FX2BB Weight/ Name of item Type Remark Length Processor unit ESM-200 5.6kg Operation unit With mounting bracket 0.7kg/ ESO-200 CW-409A-5M DC power cable With 5-pin connector and CW-270-2M one end plain...
  • Page 13 CVS-FX2/FX2BB Configuration of Equipment Type of transducer Beam width Material/ Mounting (- 6 dB) Specification Frequency output Cable length/ method (Right and left x Cable diameter Back and forth)(-6 dB) TDM-052 Low frequency (38 kHz) 27° × 14° Low frequency (60 kHz) 18°...
  • Page 14 Configuration of Equipment CVS-FX2/FX2BB TDM-052 Beam Angle Koden TDM-052 Transducer Beam width to -6 dB points Beam Width Athwartships Beam Width Fore & Aft Beam Width Average (Low Freq.) Beam Width High Frequency Frequency (kHz) TDM-062 Beam Angle Koden TDM-062 　Transducer...
  • Page 15 CVS-FX2/FX2BB Configuration of Equipment Option List Name of Item Specification Remark Weight/ Length Power rectifier PS-010 Fuse (5A) 2 pcs. AC power cable VV-2D8-3M Both ends plain. Cable configuration is the same as Specify Transducer TDM-052/TDM062. (Refer to length at C44-02 “Connection of transducer”, page...

  • Page 16: Dimensions

    Dimensions CVS-FX2/FX2BB Dimensions CVS-FX2 Unit: mm (inch) 0092602002-12...
  • Page 17 CVS-FX2/FX2BB Dimensions CVS-FX2BB Unit: mm (inch) 0092602002-12...
  • Page 18 Dimensions CVS-FX2/FX2BB Operation unit of CVS-FX2/FX2BB Unit: mm (inch) 0092602002-12...

  • Page 19: Specifications

    CVS-FX2/FX2BB Specifications Specifications Content Item Model CVS-FX2 CVS-FX2BB － Display unit ESD-200 － Processor unit ESM-200 Operation unit ESO-200 Output power (RMS) TDM-052 (38 to75 kHz and 130 to 210 kHz) Transducer (Output frequency) TDM-062 (38 to 75 kHz and 85 to135 kHz) 24 to 240 kHz 0.1kHz step...
  • Page 20 - This page intentionally left blank.-...

  • Page 21: Chapter 1 Installation

    CVS-FX2/FX2BB Chapter 1 Installation Chapter 1 Installation 1.1 Installation precautions In order to obtain the maximum performance of the echo sounder, this echo sounder should be installed by a qualified engineer in charge of installation and maintenance. Installation procedures include the following: (1) Unpacking of components.

  • Page 22: Laying And Connection Of Cables

    (1) Keep the transducer and power cable as far away from the cables of other electronic equipment as possible. (2) The cabinet of CVS-FX2/FX2BB Display and Processor unit shall be securely grounded to the hull, using the grounding terminal on the rear panel.

  • Page 23: Installation Of Cvs-Fx2 Display Unit

    CVS-FX2/FX2BB Chapter 1 Installation 1.2 Installation of CVS-FX2 Display unit CVS-FX2 Display unit can be installed either on desk-top or flush-mounted. Install in the following procedure 1.2.1 Desk-top installation (1) Decide the location to install the Display unit and keep the space for the maintenance works as shown in Fig.
  • Page 24 Chapter 1 Installation CVS-FX2/FX2BB Caution: At installing on desktop, keep the maintenance space is required as shown below. Unit: mm (inch) Fig. 1.3 Maintenance space 0092602002-12...

  • Page 25: Flush-Mount Installation

    CVS-FX2/FX2BB Chapter 1 Installation 1.2.2 Flush-mount installation (1) Make a square hole at the location to be installed (See Fig. 1.5) (2) Remove four plastic corner guard caps of the Display unit (These can be easily pulled out upwards). (3) Confirm that the unit matches the square hole. If not matches, correct the square hole.

  • Page 26: Installation Of Cvs-Fx2Bb Processor Unit

    Chapter 1 Installation CVS-FX2/FX2BB 1.3 Installation of CVS-FX2BB Processor unit CVS-FX2BB Processor unit can be installed either on table or panel. Install by the following procedure (1) Make 4 holes at the location to be installed (See Fig. 1.6) (2) Install the Processor unit in the installing location (square hole) and fix it with 4 tapping screws (4mm) (M4 or pan-head).

  • Page 27: Installation Of Operation Unit

    CVS-FX2/FX2BB Chapter 1 Installation 1.4 Installation of Operation unit CVS-FX2/FX2BB Operation unit can be installed either on desk-top or flush-mounted. Install by the following procedure 1.4.1 Desk-top installation (1) Decide the location to install the Operation unit and keep the space for the maintenance works as shown in Fig.
  • Page 28 Chapter 1 Installation CVS-FX2/FX2BB Caution: On installing on desktop, keep the maintenance space is required as shown below. Unit: mm (inch) Fig.1.8 Maintenance space of desk-top installation 0092602002-12...

  • Page 29: Flush-Mount Installation

    CVS-FX2/FX2BB Chapter 1 Installation 1.4.2 Flush-mount installation (1) Make a square hole at the location to be installed (See Fig.1.10) (2) Remove 4 plastic corner guard caps of the Operation unit (These can be easily pulled out upwards). (3) Confirm that the Operation unit matches the square hole. If not matches, correct the square hole.

  • Page 30: Installation Of Transducer

    Chapter 1 Installation CVS-FX2/FX2BB 1.5 Installation of transducer 1.5.1 In the case of inner hull installation 1) In the case of steel boat With reference to the figures below, install the transducer at a shipyard. Plumbing pipe (SGP-1 1/2) This pipe should be extended up to draft line or junction box.
  • Page 31 CVS-FX2/FX2BB Chapter 1 Installation TRANSDUCER INSTALLATION: Caution: 1. Plumbing pipe and welded plate or rod in dotted lines shall be provided by the shipyard after specifying the details. 2. Preferably larger amount of protruding could produce better performance because it is hard to be influenced by bubble.
  • Page 32 Chapter 1 Installation CVS-FX2/FX2BB 2) In the case of steel boat (For Anti-resonance) With reference to the figures below, install the transducer at a shipyard. Plumbing pipe Plumbing pipe (SGP-1 1/2) This pipe should be extended up to draft line or junction box.
  • Page 33 CVS-FX2/FX2BB Chapter 1 Installation TRANSDUCER INSTALLATION: Caution: 1. Plumbing pipe and welded plate or rod in dotted lines shall be provided by the shipyard after specifying the details. 2. Preferably larger amount of protruding could produce better performance because it is hard to be influenced by bubble.
  • Page 34 Chapter 1 Installation CVS-FX2/FX2BB 3) In the case of wooden and FRP boat With reference to the figures below, install the transducer at a shipyard. Cable gland Pedestal Hull plate Float Transducer Hull plate Protruding amount More than 230mm Fixing bolts Unit: mm (inch) Fig.
  • Page 35 CVS-FX2/FX2BB Chapter 1 Installation (19 11/16) 4-φ12 (15/32) (17 23/32) (4 9/64) Fig. 1.16 Outline view of the unit on FRP and wooden boat Unit: mm (inch) 0092602002-12 1-15...
  • Page 36 Chapter 1 Installation CVS-FX2/FX2BB ・Outline dimensions and specifications of transducers (TDM-052 and TDM-062) (4 9/64) φ11.8 (φ15/32) φ26.5 (φ13/64) (14 31/64) (13 45/64) (R63/64) (R19/32) Unit: mm (inch) Fig. 1.17 Outline dimensions of a transducer (TDM-052 and TDM-062) Specifications of transducers (TDM-052 and TDM-062) Cable length: 15 m (590 35/64) TDM-052: 11.0 kg (24.5 lb)
  • Page 37 CVS-FX2/FX2BB Chapter 1 Installation Caution: 1. Four holes on the upper surface of transducer is for supplemental fixing only. Do not install the transducer only by these holes. These holes are not strong enough to sustain the weight of transducer.

  • Page 38: Wiring

    Chapter 1 Installation CVS-FX2/FX2BB 1.6 Wiring 1.6.1 Connection of cables to Display and Processor unit Connect the power cable and cables from the transducer to the connectors on the Display and Control unit. ●Operation unit connection *Only for CVS-FX2BB Input/output ●External monitor output...
  • Page 39 CVS-FX2/FX2BB Chapter 1 Installation Pin assignment of rear connectors Pin assignment viewed from the rear of Display unit / Processor unit: 1 : R POWER 2 : R-GND 3 : G 1 : Power - 4 : G-GND 2 : Power +...
  • Page 40 In case an external monitor is connected to CVS-FX2, use the J5 connector. (Refer to P1-27 “Connection of External Monitor”) Connection of power cable (CW-270-2M) Connect the power cable to the [POWER] connector at the rear of the Display unit (CVS-FX2) or rear of Processor unit(CVS-FX2BB). Connection of DC power cable (CW-270-2M)
  • Page 41 After soldering is completed, be sure to provide the connected part with water resistance and insulation using self adhesive tape, etc. 2) Connect CW-836-3M after the above processing to J7 connector of CVS-FX2/FX2BB. Connect CW-844-3M after the above processing to J6 connector of CVS-FX2/FX2BB.
  • Page 42 Chapter 1 Installation CVS-FX2/FX2BB Caution: Wind the insulation tape around the un-used lead wires not to contact each other. * As for the shield of transducer to be connected with the shield of CW-836-3M, the 3 of outer shield, low frequency shield and high frequency shield shall be bundled and connected.
  • Page 43 CVS-FX2/FX2BB Chapter 1 Installation In the case of connection via the junction box (JB-34): 1) Connect CVS-FX2/FX2BB and the cable connected to the junction box (JB-34) CW-844-3M Shield To J6 connector of Green CVS-FX2/FX2BB Orange Blue White Black Shield Black...
  • Page 44 Chapter 1 Installation CVS-FX2/FX2BB 2) Connect the transducer and the junction box (JB-34). Cable of the transducer is configured as shown in Fig. 1.25. Referring to Fig. 1.26, connect the cable to the junction box (JB-34). Shield Water Temp. sensor...
  • Page 45 CVS-FX2/FX2BB Chapter 1 Installation Connection table of transducers Junction box CVS-FX2/FX2BB Transducer (JB-34) Signal name at Connection to: Color of cable Remarks connection to: Red/TD1H TD1H Blue (high frequency transducer) Green/TD2H High frequency TD2H Black (high frequency transducer) Shield Shield...
  • Page 46 It is likely to observe mutual interference when the transmit frequency of an external echo sounder and CVS-FX2/FX2BB is the same or close. Interference can be decreased by synchronizing the CVS-FX2/FX2BB transmission with the trigger of the external echo sounder. Refer to the following for the connection.
  • Page 47 CVS-FX2/FX2BB Chapter 1 Installation Connection of External Monitor (J5) [Owner supply] When installing an external monitor (XGA monitor, analog RGB input), connect it via CW-576-0.5M to J5 connector. Refer to the illustration below for the wiring. After soldering, perform the waterproof and insulation treatment on the junction with a self-fusing tape.
  • Page 48 CVS-FX2/FX2BB Connection of CCD camera (J4) [Owner supply] CVS-FX2/FX2BB and a CCD camera (NTSC/PAL/SECAM) can be connected via CW-405-0.3M (option). Connect the video output terminal (RCA plug; yellow in most cases) of your CCD camera. Perform the waterproof treatment on the junction of the RCA terminal with a self-fusing tape.
  • Page 49 Caution : Connect/disconnect the USB memory and the SD card after turning power supply OFF. Caution : Please use the USB memory and the SD card KODEN recommends. If the other device than recommended is used, KODEN does not assure operation.

  • Page 50: Connection Of Hemisphere V102 Gps Compass / Comnav Vector G1 Gps Satellite Compass

    Chapter 1 Installation CVS-FX2/FX2BB 1.7 Connection of Hemisphere V102 GPS Compass / ComNav Vector G1 GPS Satellite Compass This is to describe the connection of Hemisphere V102 GPS Compass / ComNav Vector G1 GPS Satellite Compass used as GPS compass and Heaving sensor.
  • Page 51 Caution: Wind the insulation tape around the unused lead wire to prevent core wires from contacting each other. 2) Connect CW-376-5M to J3 connector of CVS-FX2/FX2BB (NMEA terminal with 12V power supply) after soldering with Port A. 3) Connect CW-376-5M to NMEA terminal of Radar after soldering with Port C when connecting with Radar as GPS compass.
  • Page 52 Hemisphere V102 GPS Compass / ComNav Vector G1 GPS Satellite Compass Accessory cable Port C Port A CW-376-5M CW-376-5M Connect to NMEA terminal of the Radar. Connect to J3 of CVS-FX2/FX2BB. CVS-FX2/FX2BB Radar Plotter CW-410-5M Connect J8 of CVS-FX2/FX2BB and NMEA terminal of the Plotter.
  • Page 53 Hemisphere V102 GPS Compass / ComNav Vector G1 GPS Satellite Compass Accessory cable Port C Port A CW-376-5M CW-376-5M Connect to NMEA terminal of the Plotter. Connect to J3 of CVS-FX2/FX2BB. Plotter, 38400bps compliant CVS-FX2/FX2BB The general connection chart 2 0092602002-12 1-33...
  • Page 54 Hemisphere V102 GPS Compass / ComNav Vector G1 GPS Satellite Compass Accessory cable Port C Port A Unconnected. CW-376-5M Connect to J3 of CVS-FX2/FX2BB. CVS-FX2/FX2BB Plotter CW-410-5M Connect J8 of CVS-FX2/FX2BB with NMEA terminal of the Plotter. Caution: Please use the cable of which the shield wire and the chassis earth are not connected.

  • Page 55: Setting Of Hemisphere V102 Gps Compass / Comnav Vector G1 Gps Satellite Compass

    Hemisphere V102 GPS Compass / ComNav Vector G1 GPS Satellite Compass needs to be initialized to generate output data as GPS compass and Heaving sensor. This can be done by setting by CVS-FX2/FX2BB. Hereafter, Hemisphere V102 GPS Compass / ComNav Vector G1 GPS Satellite Compass is referred to as “V102 GPS Compass”.
  • Page 56 Chapter 1 Installation CVS-FX2/FX2BB 3) Press [ ] of The setup box of [GPS Select] will be displayed. 4) Press [▲] and [▼] keys, and select [V102] or [Vector G1]. 5) Press to return the [Basics] . 6) Select [Basics] - [GPS Initialize].
  • Page 57 These steps complete the setup as follows: The baud rate of NMEA2 (J3) of CVS-FX2/FX2BB is set to 38400bps. The baud rate of Port A of V102 GPS Compass is set to 38400bps, and Heaving data output is generated.
  • Page 58 Chapter 1 Installation CVS-FX2/FX2BB 2. This is to setup the output to the equipment to be connected on the NMEA1 (J8) ports of CVS-FX2/FX2BB. This is to set baud rate of J8 port. Transmission rate shall match the externally connected equipment.
  • Page 59 CVS-FX2/FX2BB Chapter 1 Installation This is to select output data of NMEA1. Output data shall match the externally connected equipment. 1) Select [NMEA1] - [XXX Output]. 2) Press [ ] of The setup box of [XXX Output] will be displayed.
  • Page 60 4800bps NMEA GPHDM GPHDT GPVTG sentence TX interval 0.1sec 0.1sec 1sec The Hemisphere V102 GPS Compass / ComNav Vector G1 GPS Satellite Compass setting after initialization by CVS-FX2/FX2BB Port A Baud rate 38400bps NMEA GPGGA GPVTG GPZDA GPHDT GPHEV GPHPR...

  • Page 61: List Of Input/Output Sentences

    CVS-FX2/FX2BB Chapter 1 Installation 1.8 List of input/output sentences 1.8.1 Input sentence The sentences of GGA, GLL, HDT, MTW, MWV, MWD, RMC, VHW, VTG and ZDA can be received. Possible input formats are: NMEA0183 Ver.1.5, Ver.2.0 and Ver.3.0 Information Priority Order of sentence...
  • Page 62 - This page intentionally left blank.-...

  • Page 63: Chapter 2 Adjustment

    CVS-FX2/FX2BB Chapter 2 Adjustment Chapter 2 Adjustment 2.1 Setup of transducer The frequency and beam angle etc. per transducer will be conformed to those of the transducer to be used, then, the correct information can be provided. When [Others] is selected, the setup box of [Others] will be displayed.

  • Page 64: Setup Of Frequency Of Transducer

    Chapter 2 Adjustment CVS-FX2/FX2BB The setup box of [LF TD Type] will be 5. Press [ ]. displayed. The setup box of [Frequency] will be 4. When a Broadband transducer is used, displayed. press [▲] and [▼] to select [Broadband Type].

  • Page 65: Setup Of Beam Angle Of Transducer

    CVS-FX2/FX2BB Chapter 2 Adjustment setup of frequency. 3. Press [ ] of 7. Press to close the menu. The setup box of [LF TD2 Setting] will be Caution: The setup of beam angle is displayed. reflected on the display of 4.

  • Page 66: Setup Of Bottom Limit

    Chapter 2 Adjustment CVS-FX2/FX2BB TD Setting - LF TD2 Setting 2.4.2 Setup of Bottom Limit LF TD Setting –Bottom Limit LF 1. Press To set Bottom Limit of low frequency. 2. Select [TD Setting] – [LF TD2 Setting]. 1. Press 2.

  • Page 67: Setup Of Gain (Td) For Transducer

    CVS-FX2/FX2BB Chapter 2 Adjustment the side to be adjusted. 2.6 Setup of Gain (TD) for transducer When a red square mark appears at right side upper corner of the Gain (TD) setup Correct – Gain (TD) box, the red lighted gain knob shall be operated.

  • Page 68: Setup Of Output Limit For Transmitter

    Chapter 2 Adjustment CVS-FX2/FX2BB The setup box of [Output Limit HF] will be 2.7 Setup of Output Limit for displayed. transmitter Set the output limit, when you connect a non-standard low output power TD. 4. Press [▲] or [▼] to set an output limit.

  • Page 69: Relation Of The Set Value Between [Output Limit] And [Menu] - [Echo Adjust] - [Tx Power]

    CVS-FX2/FX2BB Chapter 2 Adjustment 2.7.4 Relation value between [Output Limit] and [MENU] - [Echo Adjust] - [TX Power] [Output Limit] common setting regardless of CM key. A set value of [TX Power] is applicable individually to each CM key. [Output Limit] limits the output that becomes the source of [TX power].
  • Page 70 - This page intentionally left blank.-...

  • Page 71: Chapter 3 Maintenance

    3.2 Cleaning 3.2.1 Display unit of CVS-FX2 Contamination on the screen may cause faint images. For cleaning the screen, wipe it with soft and clean cloth dipped in diluted neutral detergent. Pay full attention as the screen gets scratched easily. No solvent such as thinner shall be used.

  • Page 72: Transducer

    Chapter 3 Maintenance CVS-FX2/FX2BB 3.2.2 Transducer In the case of the through-hull installation, check the surface of opening of transducer (portion from which the ultra-sonic is emitted). If shells or oil adhere, scrub the surface with a wooden or bamboo knife with caution not to damage the surface and remove stuck materials. If you scrub strongly, the surface will be damaged, resulting in deteriorated performance of transducer.

  • Page 73: Diagnostics

    The system status will be displayed as (6) [VOLT1] displays the voltage value of + shown in the above figure. 12 V line. When the voltage falls in abnormal range, For CVS-FX2BB, [CVS-FX2 BB Type] will be 0092602002-12...

  • Page 74: Lcd Test

    Chapter 3 Maintenance CVS-FX2/FX2BB the indication will be in red. The setup box of [Initialize] will be displayed. (7) [VOLT2] displays voltage of power input line. When this voltage falls in abnormal range, alarm will sound and an alarm message will be displayed.
  • Page 75 CVS-FX2/FX2BB Chapter 3 Maintenance At completion of downloading, “Normally 3. Press [ ] of updated. Turn ON the power again.” will be displayed. The selection box of [System Program Load] will be displayed. 9. Press for about 5 seconds to switch off the power.

  • Page 76: If You Suspect A Failure

    Chapter 3 Maintenance CVS-FX2/FX2BB 3.5 If you suspect a failure Symptom Possible cause of trouble Measure  Fuse is blown.  Replace the fuse (See “3.3 Even with power on,  Power voltage is out of Fuse Replacement”, page nothing is displayed.
